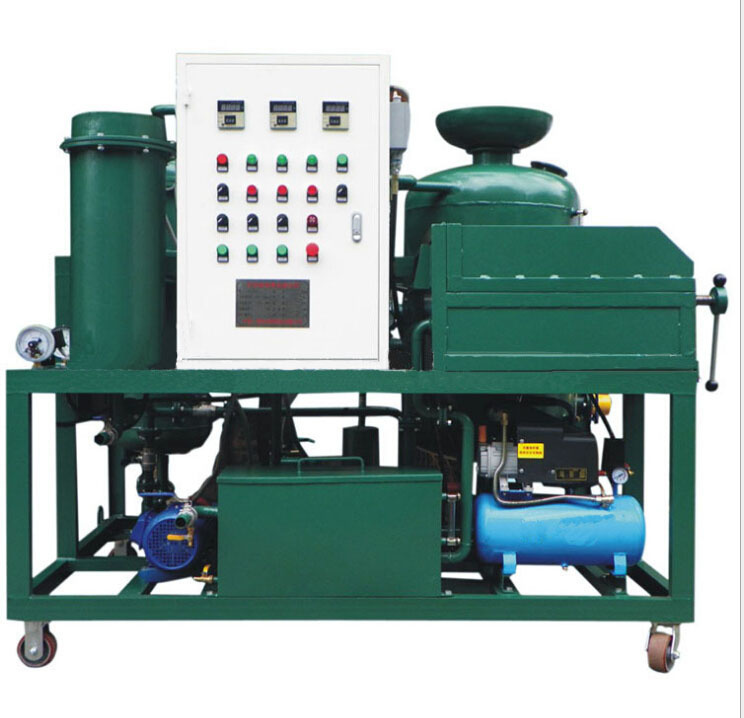

Zanyo Vacuum Lubricating Oil Purifier
Price: |
Negotiable/Roll |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Roll |
Pay Type: |
L/C,T/T |
Prod Model: |
ZYL-10 ZYL-50 ZYL -100 ZYL-150 ZYL-200 ZYL-300 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Working Vacuum: |
-0.06~-0.095MPa |
Working Pressure: |
0.4MPa |
Gas Content: |
%≤ 0.1 |
Power Supply: |
as Per User's Option |
Voltage: |
as Per User's Option |
Folw Rate: |
as Per User's Option |
Product Description
ZYL ZANYO vacuum lubricating oil purifier is mainly used for purify the unqualified machine oil, hydraulic oil, compressor lubricant oil, refrigerating machine oil etc., and other industrial oil. ZYL vacuum lubricating oil purifier is composed of primary filtering system, vacuum system, precision filtration system. ZYL oil purifier can separate water, gas(alcohol, gasoline, ammonia gas etc.), particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) from oil, restoring oil viscosity, flash point and performance.It is widely applied in petroleum, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc.The ZYL machine with the function of demulsification, it can treat the emulsified oil.The final treated lubricating oil can achieve: low emulsified value(less than15/min), little water content(less than 100ppm) ,precision filtration (less than NAS6 grade) Features: |
1.Double primary-filter structure, large capacity for holding particles, Multi-stage filtration system to ensure high filtration precision. |
2. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles |
3.Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively remove water, gas, particles and volatile matter (such as alcohol, gasoline, ammonia, etc.) |
4. Automatic backwashing system, improving working efficiency |
5. Advanced medium cooling system |
6. High quality filtering components, large capacity for holding particles, anti-corrosion, good mechanical performance, long lifetime. |
7. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. |
8. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically. |
Technical Parameters:Index name | Unit | ZYL -10 | ZYL -20 | ZYL -30 | ZYL -50 | ZYL -100 | ZYL -150 | ZYL -200 | ZYL -300 |
Flow rate | L/Min | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 |
Working vacuum | MPa | -0.06~-0.095 |
Working pressure | MPa | ≤ 0.4 |
Temperature range | ºC | 20 ~80 |
Demulsifying value | min | ≤15/min(GB/F7035) |
Water content | ppm | ≤100 |
Gas content | % | ≤ 0.1 |
Cleanness |
| ≤ NAS 6 grade |
Power supply |
| 380V 50HZ 3Ph (As per user's option) |
Working noise | dB(A) | ≤65~80 |
ZYL-100, ZYL-150, ZYL-200, ZYL-300
