| Machine Frame: |
Grantie |
| X Stroke: |
370mm |
| Y Stroke: |
500mm |
| Z Stroke: |
100mm |
| Working Table Size: |
700mm*500mm |
| Max Moving Speed: |
18m/Min |
| Cutting Feed Speed: |
9m/Min |
| Spindle Power: |
1.8 Kw |
| Spindle Speed Range: |
60000 Rpm |
| Type: |
CNC Engraving Machine / CNC Router |
| Certification: |
CE |
| Control System: |
Industrial Computer |
Product Description

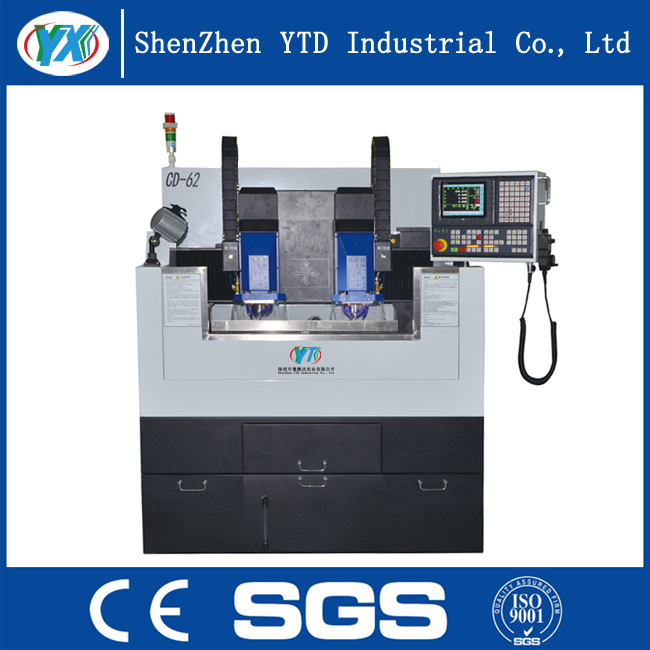

YTD-CD52 Mobile Phone Screen Protector Manufacturing Machine CNC Machine
Application:
Drilling Holes and carving the straight glass corner into be round corner.
Parameters:
| Machine Frame | Grantie |
| X Stroke | 370mm |
| Y Stroke | 500mm |
| Z Stroke | 100mm |
| Working Table Size | 700mm*500mm |
| Max Moving Speed | 18m/min |
| Cutting Feed Speed | 9m/min |
| Spindle Speed Range | 60000 RPM |
| Spindle Quantity | 2 spindles, can work independently |
| Repeat accuracy | 0.005mm |
| Positioning accuracy | 0.006mm |
| Tool setting accuracy | 0.002mm |
| Lubrication system | Oil auomatic lubrication |
| Air Pressure | 0.5-0.65mpa |
| Table loading capacity | 120kg |
| Driving Mode | AC Servo motor |
| Processing instruction | G code |
| Control system | DELTA numerical control system |
| Power | AC220V 50Hz |
| Gross Weight | about 1800kg |
| Dimention | 1250*1400*1650mm |
| Rated Power | 5KW |
Please note: Above parameters only for reference, we keep improving our machine, parameters might be different.
Configuration:
| Machine Frame | Grantie | Jinan Shandong |
| Control system | Baoyuan / Weihong | Taiwan / Shanghai |
| X/Y Screw rod | Grinding 2005 | Taiwan / Japan |
| Z Screw rod | Grinding 2002 | Taiwan / Japan |
| X/Y Liner Guide | 20R2 | Taiwan / Japan |
| Z Liner Guide | 20R2 | Taiwan / Japan |
| Servo Motor | MHMJ042GIU | Japan Panosonic |
| Main Spindle | 6000RPM | Motorized spindle(Aibeike, Dake, Shufeng) |
| Water cooling machine | High precision | Industial cooking Machine( Shenzhen) |
| Water pump | LDPB4-18-220V | Luokai |
| Supporting End Bearing | Deep groove ball bearing | Japan NSK |
| Fixed End Bearing | Angular contact bearing | Japan NSK |
| Cutter Posotioning | 0.002mm | Taiwan |
| Switch | D2VW-5L2-1M | Omron |
| Converter | 1.5KW | Taiwan |
Packaging: Wood Case
What can YTD do for you?
YTD provide strong technology support for building screen protector plant.
YTD can provide you a whole production line for tempered glass screen protector and solutions as per your capacity.
YTD is your professinal consultant, you could consult us about materials, technology, production scheme, etc.
After-Sales Service
1. Free technical support, machine installment, machine operation and trouble shooting method.
2. Control system upgrade, motherboard upgrade, and related functions upgrade.
3. Supply free spare parts during warranty period.
4. One year warranty, except for artificial damage and wear parts.
5. 24 hours telephone technical support.
About us:
Shenzhen YTD Industrial Co., Ltd is a supplier that specializes in developing, designing and manufacturing all kinds of automatic machine.
We can supply complete tempered glass screen protector production line, such as glass cutting machine, polishing machine, engraving machine, tempering furnace and coating machine, etc.
We can send engineers overseas to install machines and train workers to help you build your plant.
Tell us what you need, machines, raw materials, technology, solutions, good after sales service?
Come to us, we have a professional team with rich experience to help you.
Quality policy: quality is our soul, we adhere strictly to ISO 9001 quality management system. We pay attention to every detail, take care of every detail, try our best to be excellent.
Excellent products, credibility first, win-win cooperation----- YTD will always be your most sincere partner.
FAQ
1. What is your lead time?
3 to 4 weeks
2. What is your payment term?
Negotiable.
3. How long is your guarantee?
Usually a year
4. Can I visit your factory?
We welcome you to visit our factory and we will pick you up from Airport in Shenzhen
5. What is the customs duty.
It depends on your local customs policy, we can write either pratical amount or lesser amount on the invoive as per your request to help you reduce payment of customs duty.
