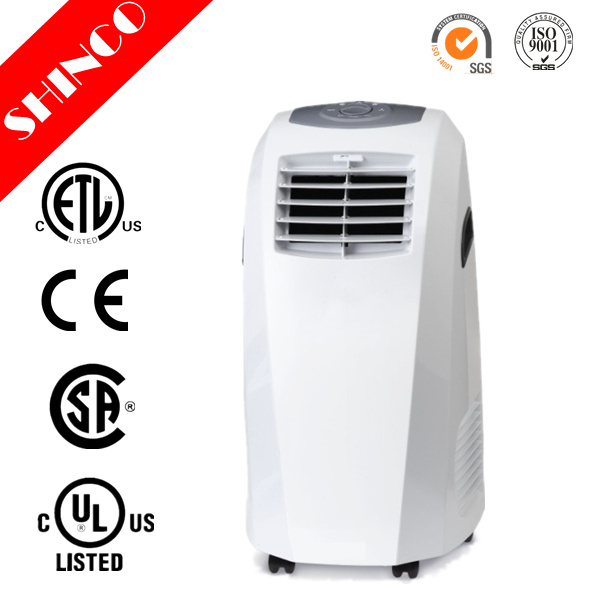

Ypl Classical 10000 BTU Manual Control Mobile Portable Air Conditioner

Prod Model:	YPL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ypl-07m(E):	7000BTU/2050W
Ypl-08m(E):	8000BTU/2400W
Ypl-09m(E):	9000BTU/2600W
Ypl-10m(E):	10000BTU/2930W
Type:	Portable Air Conditioner
Usage:	Room
Indoor Machine Noise:	>50dB
Certification:	BEB
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling Only
Power Source:	Electrical
Power Type:	DC
Condition:	New
Capacity:	9000BTU-15000BTU

Product Description

Construction Features
1. Self-evaporation, new generation. Water generated inside is reused, no need to empty water,power saves.
2. Water disposed by a spraying motor.The machine works perfectly in wet area with high EER.
3. Rectangular shape looks handsome and silver-printed housing appears luxury.
4. Reversible LCD, indicating temperature and operation status.
5. Anti-frozen function under cooling.
6. Self-diagnosis function and 24 hour On/Off timer.

Other Features and Functions
1.louvers swing automatically,wind auto-swings.
2.soft touch control panel
3.high quantity.
4.electronic control is optional

Loading Quantity
20"/40"GP/40"HQ: 128/276/412

Technical Parameters for European Market
Model		Unit	YPL/YPL3-07C-1A	YPL/YPL3-08C-1A	YPL/YPL3-08C-1A	YPL/YPL3-10C1A	YPL/YPL3-07M-1A	YPL/YPL3-08M-1A	YPL/YPL3-09M-1A	YPL/YPL3-10M-1A
Cooling capacity		Btu/h	7000	8000	8000	10000	7000	8000	9000	10000
		W	2050	2400	2400	2930	2050	2400	2600	2930
Heating capacity		Btu/h	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
		W	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Power Supply		V~,Hz,Ph	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1	220~240,50,1
Rated input	Cooling	W	1020	1050	1050	1050	1020	1050	1050	1050
Rated Current	Cooling	A	4.5	4.6	4.6	4.6	4.5	4.6	4.6	4.6
Rated input	Heating	W	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Rated Current	Heating	A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
EER for Cooling(R410A)		Btu/W.h	8.3	9	9	9	8.3	9	9	9
		W/W	2.43	2.62	2.62	2.62	2.43	2.62	2.62	2.62
COP for Heating(R410A)		Btu/W.h	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
		W/W	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Moisture Removal		L/h	0.6	0.8	0.8	0.8	0.6	0.8	0.8	0.8
Air Circulation		m³/h	360	360	360	360	360	360	360	360
Noise	High	dB(A)	55	55	55	55	55	55	55	55
	Middle	dB(A)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Low	dB(A)	52	52	52	52	52	52	52	52
Body Size	W×H×D	mm	330×795×433	330×795×433	330×795×433	330×795×433	330×795×433	330×795×433	330×795×433	330×795×433
Package Size	W×H×D	mm	394×880×494	394×880×494	394×880×494	394×880×494	394×880×494	394×880×494	394×880×494	394×880×494
Net Weight/Gross Weiht		kg	22/27	25/28	25/28	25/30	22/27	25/28	25/29	25/30
Appliation Area		m2	8~12	9~14	9~14	10~15	8~12	9~14	10~15	10~15
Loading Quantity		Set/40"HQ	412	412	412	412	412	412	412	412
		Set/40"GP	276	276	276	276	276	276	276	276
		Set/20"	128	128	128	128	128	128	128	128
Remarks: 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice.
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.

Technical Parameters for North American Market
Model		Unit	YPL/YPL3-07C-1	YPL/YPL3-08C-1	YPL/YPL3-09C-1	YPL/YPL3-10C-1
Cooling capacity		Btu/h	7000	8000	9000	10000
		W	2050	2400	2600	2930
Heating capacity		Btu/h	N/A	N/A	N/A	N/A
		W	N/A	N/A	N/A	N/A
Power Supply		V~,Hz,Ph	110~120,60	110~120,60	110~120,60	110~120,60
Rated input	Cooling	W	880	880	980	980
Rated Current	Cooling	A	8	8	9.2	9.2
Rated input	Heating	W	N/A	N/A	N/A	N/A
Rated Current	Heating	A	N/A	N/A	N/A	N/A
EER for Cooling(R410A)		Btu/W.h	N/A	N/A	N/A	N/A
		W/W	N/A	N/A	N/A	N/A
COP for Heating(R410A)		Btu/W.h	N/A	N/A	N/A	N/A
		W/W	N/A	N/A	N/A	N/A
Moisture Removal		L/h	0.6	0.6	0.8	0.8
Air Circulation		m³/h	330	330	360	360
Noise	High	dB(A)	55	55	55	55
	Middle	dB(A)	N/A	N/A	N/A	N/A
	Low	dB(A)	52	52	52	52
Body Size	W×H×D	mm	330×795×433	330×795×433	330×795×433	330×795×433
Package Size	W×H×D	mm	394×880×494	394×880×494	394×880×494	394×880×494
Net Weight/Gross Weiht		kg	22/27	25/28	25/29	25/30
Appliation Area		m2	8~12	9~14	10~15	10~15
Loading Quantity		Set/40"HQ	412	412	412	412
		Set/40"GP	276	276	276	276
		Set/20"	128	128	128	128
Remarks: : 1.The above technical data are for reference only. Yoau reserves the right to modify them without notice
2. If you want to use the above data for artwork of carton, user manual etc, please ask Yoau for confirmation.
