| Prod Model: |
YDCA-60NF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

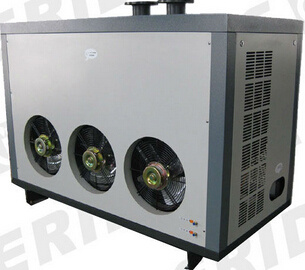

Ydca-60NF Refrigerated Air Dryer Type of Air Purif |
| Color: |
White |
| Performance: |
Low Noise |
| Configuration: |
Portable |
| Material: |
Carbon Steel |
| Piston Type: |
Semi-Closed |
| Application: |
Low Back Pressure Type, Back Pressure Type |
| Mute: |
Not Mute |
| Structure: |
Air Flow Drier |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
| Heating Mode: |
Transmission |
| Movement Way: |
Combined |
Product Description
refrigerated air dryer(air compressor dryer/freeze dryer type of air purifier)
Quick Details
Condition: New
Type: refrigerated air dryer, Refrigeration air dryer
Configuration: Stationary
Power Source: AC Power
Lubrication Style: Lubricated
Mute: Yes
Place of Origin: Zhejiang, China (Mainland), Zhejiang, China (Mainland)
Brand Name: ERIDAE, ERIDAE
Model Number: YDCA-60NF, YDCA-60NF refrigerated air dryer
Voltage: 380V
Dimension(L*W*H): 2060*860*1540MM
Weight: 660kg
Certification: ISO
Warranty: 1 year
After-sales Service Provided: No overseas service provided
Air Flow Capacity: 60 Nm3/min
Working pressure: 1 Mpa
Inlet temperature: 60 ºC
Ambient temperature: ≤45 ºC
Power: 38 KW
Dew point: 2 to 8 ºC
Packaging & Delivery
Packaging Details:Delivery Detail:
| Standard Refrigeration Air Dryerexport carton with pallet |
| 25 days |
refrigerated compressed air flow dryer air dryer machine
Product Description
These Dryers represent the latest technology and manufacturing process.
Technical Highlights:
Low dew-point design: 2( -23possible under atmospheric pressure).
High efficient plate-fin heat-exchanger (an ERIDAE proprietary technology): to improve both the heat-exchange efficiency and the product operation reliability, and to elongate the equipment service life.
R407C environment-friendly refrigerator: to help products meet the most strict environment protection standards.
Refrigerant flow rate-controlling valve: to guarantee controlling precision, system operation smoothness and reliability under a loading condition of 0 to 100%.
Heat-exchange between inlet/outlet airs: to achieve energy saving of over 30%, to avoid dewdrops at the refrigeration dryer outlet pipeline, and to reduce consumption due to malfunction and operational expenditure.
Sensor controlling technology complete with the microcomputer application: to ensure smooth equipment operation all the year without interruption while to maintain a stable dew point, and to improve the reliability and service life of the refrigeration compressor.
Intelligent controlling system (an ERIDAE proprietary technology): to keep all system components and parameters at an optimal level.
Why choose Eridae?
The air compressors used in eridae dryers are of the international advanced fully-enclosed rotary ,vortex or screw types. they are featured by stable operation, low noise. reliable performance.,power saving and long service life.
? The plate heat exchanger and condensers are made of selected high performance screw thread tubes with high conductivity and compact in structure.the cylinders made of galvanized stainless steel or carbon steel to avoid secondary contamination to the compressed air.they automatic water drains discharge the condensing water regularly. can make the finished air dryness more reliable.
? Our control system is designed based on the eridae proprietary technology.which is integrated with the advcanced system configurations and microcomputer intelligent controlling components. this arrangement can free the equipment from the influence of seasonal ambient termperature variation.the air consumption and the feeding air temperature variation.and maintain a constant low dew point working conditions. the YD-3 type computerized auto control system developed by the company allows the equipment to work more stable and reliable .we are using LCD to indicate the inlet air temperature .dew temperature .condensing temperature. and the working status. which allows the operations to be much easier controlled.
? The liquid and air separations technology is the heart of the refrigerated compressed air dryer. our product design is unique compare with the conventional ones.our water spepartions ystem is based on eridae proprietary technology. water the cyclone is combined in hamony with the fog-arresting steel wire mesh.the principle is base on the combinations of centrifugation and conglomeration. the internal agglomerating packing is of 0Cr18N19 and wate separation efficiency is equal to or greater than 99.999%. a great water separations technique. for the secondary water evaporation and a secured drying effect by the dryer. it is better in effect than the cyclone separator while is cheaper in cost than filter-typed water separator. in addition to maintenance free with long service life.
We are Hangzhou Eridae Electrical and Mechanical Manufacturing Co., Ltd, our company established in 1998, we have 6500M2 manufacturer areas
Our main products including: Refrigerated compressed air dryer, Nitrogen Generator, Desiccant compressed air dryer, Combined dryer, air filter, and Oil-water separate.
1 Eridae has 16years experience for compressed air treatment
2: Eridae is the first factory in China who get the production license
3: Eridae acreage over 10000 sets
4: Eridae is the biggest exporter in China for compressed air dryer
5: Eridae has 26 kinds of patent
6: Eridae have the advanced producing line and quality control equipment.
7: Eridae is the only one in China who have explosive-proof certification for air dryers. Powder explosion-proof refrigerated compressed air dryers (YDF series) and gas explosive-proof refrigerated compressed air dryers (YDB series) are also available.
8: Eridae has more than ten top technician team in China
Hangzhou Eridae Electrical Machinery Co., Ltd. Is a compressed air purification equipment manufacturer in China. Our product lines covers 13 categories of 300 models. We can provide our customers with elaborate technical solutions and services. We are very proud to be the first Chinese manufacturer to build the first refrigerated compressed air dryer production line with a comprehensive testing system attached. Our full production capacity can reach 45, 000 dryers annually.
Eridae is also the first Chinese manufacturer to produce explosion-proof refrigerated compressed air dryers, and has attained explosive-proof product certification by the state. Powder explosion-proof refrigerated compressed air dryers (YDF series) and gas explosive-proof refrigerated compressed air dryers (YDB series) are also available.
Eridae is committed to serving our customers in different industries with the best systematic solutions. Eridae has made great efforts in establishing new industry standards and specification for refrigerated air dryers in China. To create the best value in air purification applications for our customers is our ultimate goal.
Our certification:
1. Outstanding scientific and technological products
2. Certificate of the standard unit of Chinese products
3. ISO certification
4. AAA certificate credit standard units
5. Established the national standard JB/T 10526-2006 general use of refrigerated compressed air dryers.
