| Prod Model: |
YT-M06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Type: |
CD Changer Port |
| Slots: |
USB SD Aux |
| Optional Function: |
Bluetooth Hands Free Kit |
| Voltage: |
12/24V |
| Type: |
Car MP3 |
| Audio Output: |
Digital Audio Coaxial |
| Certification: |
CE |
| Placement: |
CD Changer Port |
Product Description
Introduction:

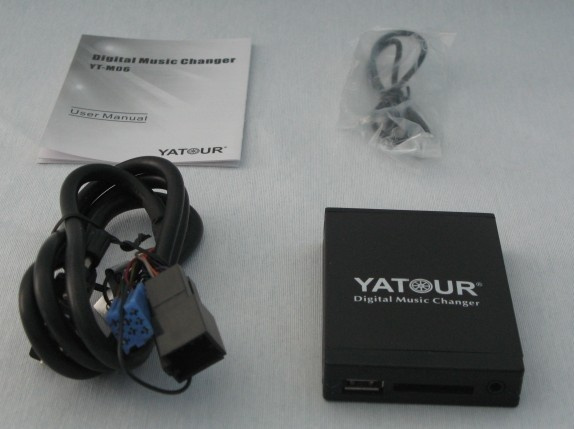

This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage, Simply plug in USB disk/SD card, you can play audio through car audio system and enjoy music in your car.
Specification:
Voltage Input: 12V DC
Signal-to-Noise: 95dB
Max. Current: 600mA
Max. Voltage output: 12V
D/A Device: 24BIT 192kHz
Total Harmonic Distortion: 0.01%
Frequency Response: 20Hz-20kHz
Working Temperature: -10C- 80C
Module case is made of aluminium alloy
Features:
1. Plug&play, modular design, CDC alternative
2. Connected with wire harness, not FM signal controlled, Hi-Fi guanranteed
3. Controlled by vehicle Head Unit, support Steering wheel operation
4. With Hi-Fi Decoding Chip, perfectly support MP3 and WMA tracks
5. Supports SD/SDHC/MMC card/U Disk/Card Reader/Hard Disk
6. Supports external audio source(MP4 PSP Mobile Phone) via AUX in port
7. Playlist function same as multi CDS
8. Supports Last Position Memory(LPM)
9. Vibration and interference proof
10. Easy to install, no damage to original car decoration
11. Different module firmware versions for different types of protocol of car stereos
Available solutions for OEM CAR STEREOS:
Audi, Alfa-Romeo, Acura,
BMW, Citroen, FIAT, Ford, Honda, Hyundai, Infiniti, KIA, Lamborghini, Lancia, Lexus, Lincoln, Mazda, Mercedes-Benz Maserati,
Mini-cooper, Porsche, Nissan, Opel, Peugeot, Renault, Rover, Scion, Seat, Smart, Subaru,
Suzuki, Skoda, Toyota, Volvo, Volkswagen
Available solutions for AFTER MARKET STEREOS:
Alpine Becker Blaupunkt Clarion JVC Panasonic Pioneer SANYO Sony VDO
Supported memory cards and USB sticks:
1. Max 8GB (2GB is most recommended); SD card is more recommended than USB stick.
2. Please format USB stick or SD card with FAT16 or FAT32 format before you save files and folders in USB/SD.
3. Imposed folder naming system: CD01, CD02, CD03...
Doesn't read sub-folder and gets confused with other names in root of the drive.
4. Supports up to 15 folders (depending on the radio type) on your USB/SD.
5. Any number of songs can be stored in each folder, but the display of most radio models can only screen 99 track titles; Saving too big file(over 50MB) in any folder may also cause intermittent performance
6. Using music files formats other than WMA and MP3 may also cause intermittent performance.
7. The playback order of songs is in line with their created date.
8. Sometimes, to remove defect on software of car audio system, you may need to disconnect the battery or remove the fuse to reset the car audio system.
9. To use the Aux-In port, it's necessary to remove the USB or SD card.
10. YT-M06 may does not work with some of new Kingston brand USB stick.
