| Prod Model: |

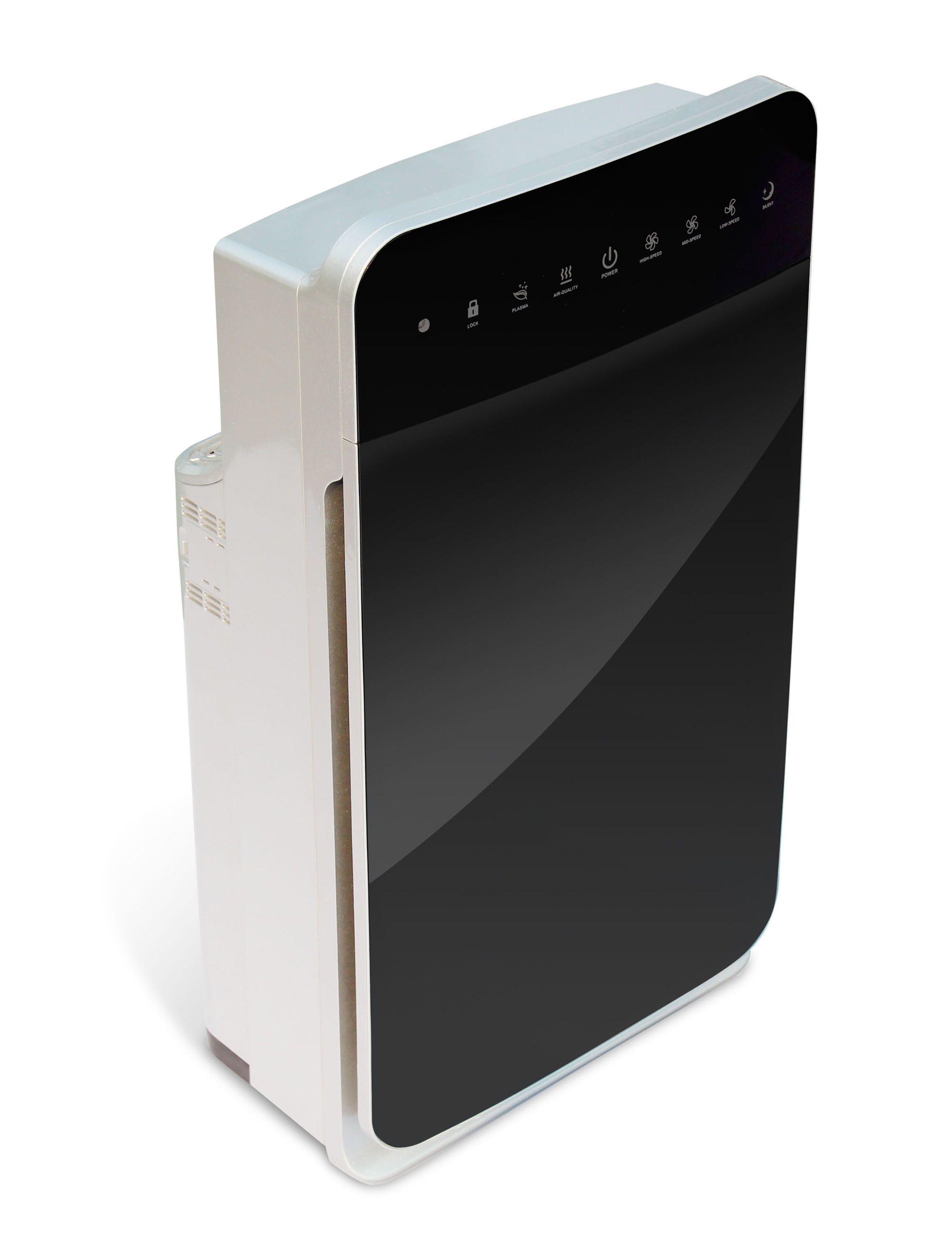

YAH-3001(CADR=300m³ /h) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Home, Car, Medical |
| Purifying Technology: |
HEPA |
| Air Volume: |
151-300m³/H |
| Power Source: |
Electrical |
| Certification: |
CE, ISO, RoHS, UL |
| Type: |
HEPA Filter |
Product Description
| Model | Unit | YAH-2401 | YAH-2401S | YAH-2402 | YAH-2402S |
| Power Supply | V~,Hz | 230,50 | 230,50 | 230,50 | 230,50 |
| Rated Input | W | 36 | 36 | 60 | 60 |
| Rated Current | A | 0.16 | 0.16 | 0.26 | 0.26 |
| Aplication Area | m3/h | 40 | 40 | 25 | 25 |
| Clean Air DeliveryRate(CADR) | m3/h | 240 | 220 | 150 | 130 |
| Filer Configuration |
| Preposition Filter | Preposition Filter | Preposition Filter | Preposition Filter |
| Multifunction Filer | Multifunction Filer | Multifunction Filer | Multifunction Filer |
| HEPA Filter | HEPA Filter | HEPA Filter | HEPA Filter |
| Activated Carbon Filter | Activated Carbon Filter | Nanometer Photocatalysis TiO2 Filter | Nanometer Photocatalysis TiO2 Filter |
| Plasma |
| plasma |
|
| Plasma Fuction |
| A | N/A | A | N/A |
| Filter Efficiency |
| Can filter out dust/smoke/pollen: > 99.9% (0.3 u m)
| Can filter out dust/smoke/pollen: > 99.9% (0.3 u m)
| Can filter out dust/smoke/pollen: > 99.9% (0.3 u m)
| Can filter out dust/smoke/pollen: > 99.9% (0.3 u m)
|
| Can filter out bacterium:99.3% | Can filter out bacterium:99.3% | Decompose bacteria and viruses sustainability:99.9% | Decompose bacteria and viruses sustainability:99.9% |
| efficiency of filtering out HCHO: 96% | efficiency of filtering out HCHO: 96% | efficiency of filtering out HCHO: 91% | efficiency of filtering out HCHO: 91% |
| efficiency of filtering out C6H6: 98% | efficiency of filtering out C6H6: 98% | efficiency of filtering out C6H6: 92% | efficiency of filtering out C6H6: 92% |
| efficiency of filtering out NH3: 97% | efficiency of filtering out NH3: 97% | efficiency of filtering out NH3: 91% | efficiency of filtering out NH3: 91% |
| efficiency of filtering out yellow sands: 99.5% | efficiency of filtering out yellow sands: 99.5% | efficiency of decomposing yellow sands:99.5% | efficiency of decomposing yellow sands:99.5% |
| Noise | High | dB(A) | 50 | 50 | 50 | 50 |
| Mid | dB(A) | 45 | 45 | 45 | 45 |
| Low | dB(A) | 32 | 32 | 32 | 32 |
| Superlow | dB(A) | 26 | 26 | 26 | 26 |
| Body Size | W*H*D | mm | 380×675×235 | 380×675×235 | 380×675×235 | 380×675×235 |
| Package Size | W*H*D | mm | 455×755×310 | 455×755×310 | 455×755×310 | 455×755×310 |
| N/W | kg | 8.2 | 8.2 | 9.3 | 9.3 |
| G/W | kg | 10.3 | 10.3 | 11.4 | 11.4 |
| Loading Quantity | 40"HQ | 660 | 660 | 660 | 660 |
| 40"GP | 580 | 580 | 580 | 580 |
| 20" | 282 | 282 | 282 | 282 |
2, Thinest remote controller
3, Best filter systerm
4, 4 fan speeds
5, Silence mode
6,Show air quality function
Changzhou Fengrun Import and Export Co., Ltd. is a professional manufacturer of evaporator & condenser for air-conditioner and refrigerator; Steel tube and other cooling system products.
Currently Fengrun has 22 production lines for evaporator & condenser of air-conditioner, the annual production cpacity is able to reach 4 million PCS, which is the largest production base in China. Under this condition, Fengrun also owns a rollbond workshop with annual capacity 3.5 million PCS, a wire on tube condenser workshop with annual capacity 2.5 million PCS, a wire on tube evaporator workshop with annual capacity 2.0 million PCS, a no-frost(fin type) evaporator workshop with annual capacity 1.0 million PCS.
Otherwise, Fengrun owns a workshop which produces steel tube 30 thousand ton per year and also has sone equipments which can produce copper products such as three-way, three-claw, elbows 3 million PCS and Cu-AL connecting tubes 600 thousand PCS per month.
