XLR Input Tube Microphone Preamp (BP-1 PLUS)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
BP-1 PLUS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
Without Screen |
| Application: |
Commercial |
| Type: |
Portable |
| Game Function: |
Without Game Function |
Product Description

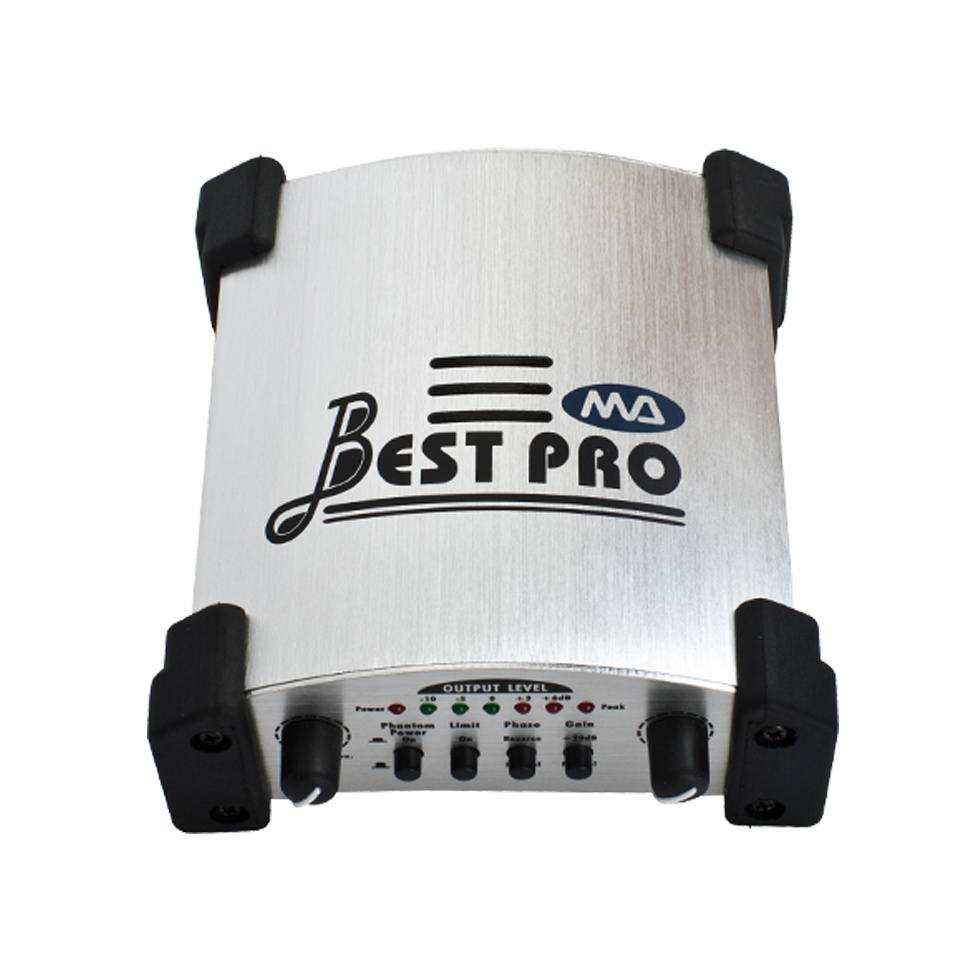

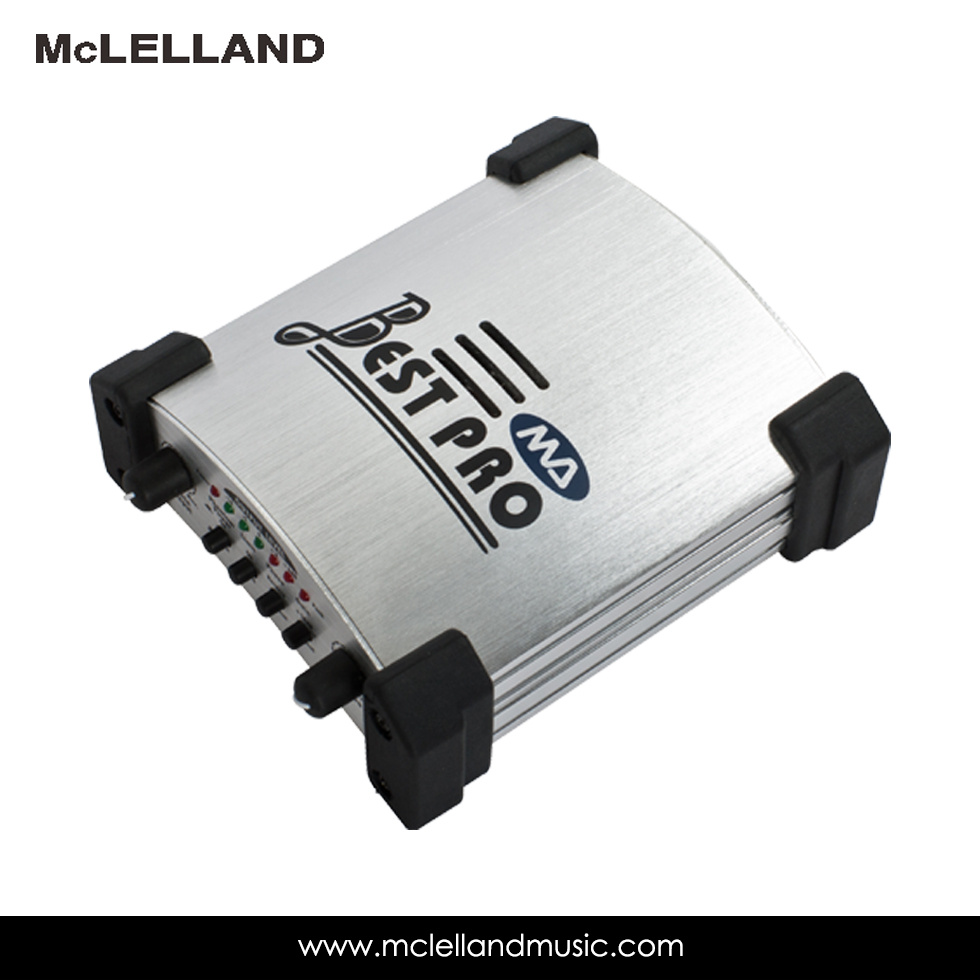

Tube Microphone Preamp(BP-1 PLUS)
Features:
12AX7 Vacuum Tube is used for warm sound and
Lowest noise
Limiter switch to prevent distortion
Phase switch to reverse the input signal
Selectable +48V Phantom power supply
+20dB Gain switch provided
LED indicators for output level

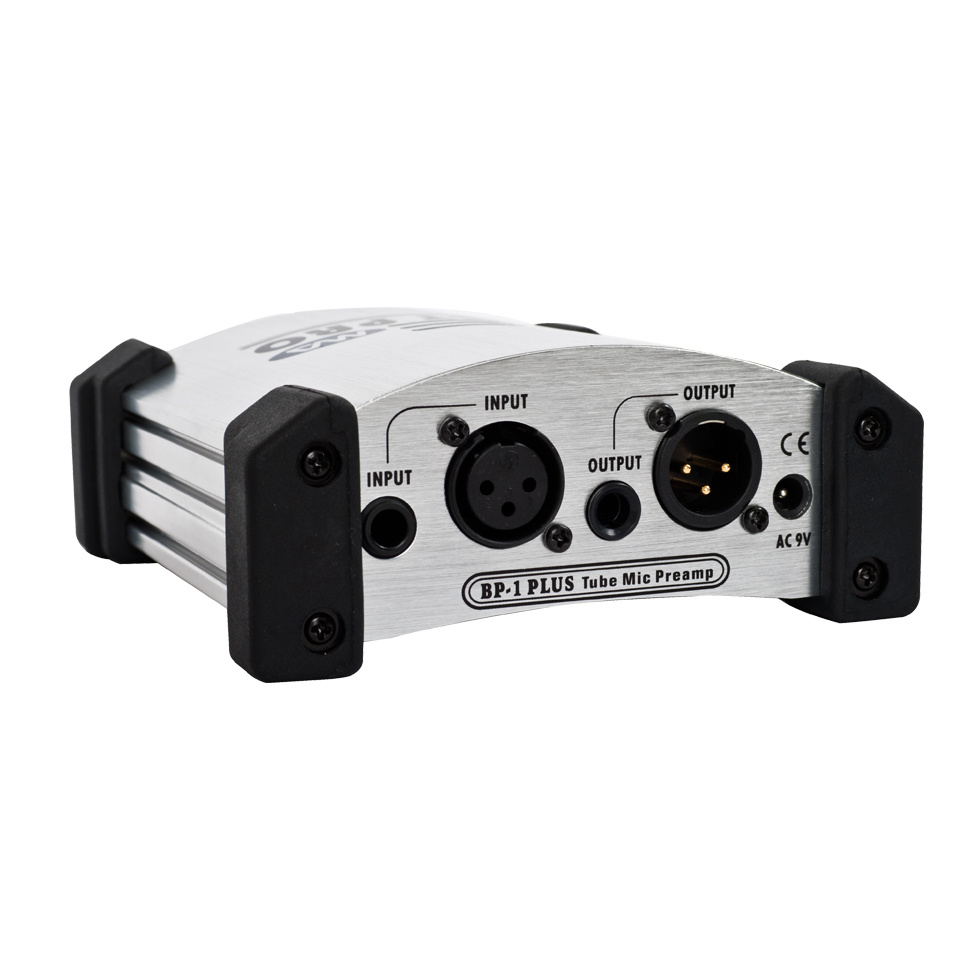

Input and output plug: Balance 1/4" TRS and XLR
Aluminium case with robber feet
Power: AC 9V
Specification:
XLR input: XLR input
Connector: Balanced/unbalanced
Type: Transformerless, DC-decoupled input
Impedance: 2KÙ
Max. Input level: +7dBu/20dB with Gain
1/4" TRS input: 1/4" TRS input
Connector: Balanced/ unbalanced
Type: Transformerless. DC-decoupled input
Impedance: 1MÙ
Max. Input level: +16dBu/ 20dB with Gain
Audio output: Audio output
Connectors: XLR and 1/4" TRS connector balanced/ unbalanced
Type: Transformerless. DC-decoupled input
Impedance: 700Ù Balanced/ 350Ù Unbalanced
Max. Output level: +26dBu @ 100KÙ
Frequency response: Frequency response
Mic input: <10Hz~43K Hz (+/-3dB)
Line input: <10Hz~40K Hz (+/-3dB)
Function controls: Function controls
Gain: Variable(Mix to Max)
Output: Variable (0 to +20dB)
Function switches: Function switches
20dB Gain: Level attenuation (20dB)
+48V: Activates the phantom power
Phase reverse: Limits the output signal
Input Level: 6-segment LED meter: -10, -5, 0, +3, +6dB, Peak
Power LED: Indicates operation
Dimensions: 2 1/2" (49mm)x 5 1/4" (132mm)x 5 1/4" (155mm)
Weight: 0.5kgs
