| Prod Model: |
X-1828 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
2-Way Full Range Line Array |
| Lf Component: |
140mm Magnet with Aluminum Frame |
| Size Options: |
6", 8" |
| Installation: |
Hanging, Pole Mount |
| Diaphragm: |
Paper |
| Capacitor: |
Solen |
| Crossover: |
Asymmetric Internal Passive Crossover |
| Colour: |
Customized |
| Clients' Logo: |
Acceptable |
| Warranty: |
3 Years |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Stage |
| Certification: |
CCC |
| THD: |
<0.005% |
| Monitor: |
Nun |
Product Description
Features:
1.Perfect speech intelligibility.
2.Comb filter design.
3.Compact cabinet.
4.Triangular support or Rigging system for installation.
5.Unique connection plate.

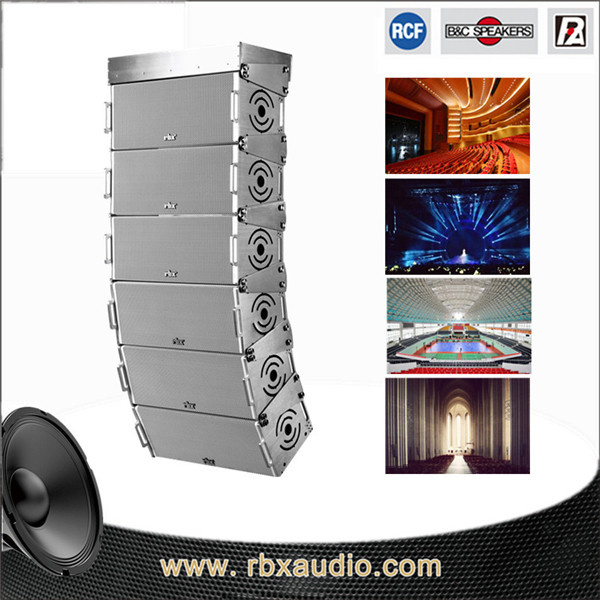

Model: X-1828 Dual 8" 2-Way full range 380W line array rigging
1. Overview:
X-1828 is a compact line array system specially designed for sound reinforcement, it can be used in all kinds of sound field, as it increases speech Intelligibility and transmission gain effectively.
X-1828 uses a bass reflex design, is equipped with two 8" LF precise driver and a 1" Cylindrical wave HF precise compression driver.
Because of the coplanar Symmetrical desdign and the Comb filter, the fequency can range from 70Hz to 19KHz, even, the frequency can be below as 45Hz when combined with Subwoofer.
1 unit of X-1828 can reach 15 degrees of maximum wavefront. When it makes up a line array system, sound Wave linear coupling can radiate like cylindrical wave from far to near in these adjoining box.
The enclosure material is imported multilayer birch plywood from Baltic sea. The aluminum connecting plates ensure the best combination between sound and box. 20 units is the maximum quantity to makes up a line array system flying in one side. The 4 point hanging system makes it possible to adjust the adjoining box from 0 degree to 12 degrees by 2 degreess per unit.
2. Specification:
| Model | X-1828 Dual 8" 2-Way full range 380W line array rigging |
| Drivers | LF: 1×8"voice-coil: 2" |
| HF: a cylindrincal waveform generetor |
| Frequency(±3dB) | 70HZ-19KHZ(±3dB) |
| Dispersion(-6dB) | Hor:100° × Vert:0°~12° (Stepping 2°) |
| Sensitivity(1m/1W) | LF: 97dB
HF:105dB |
| Maximum SPL | 125dB Continuous/131dB Peak |
| Nominal Impedance | LF: 16 Ohms
HF: 8 Ohms |
| Input power | Rate: 380W/Peak: 1540W |
| Recommend AMP | 700W to 1200W into 8 Ohms |
| Connectors | 2 × Speakon NL4MP |
| Dimensions | 220 × 596 × 262mm (H × W × D) |
| Master carton | 540 × 650 × 280 (H × W × D) |
| Net Weight | 14.5Kg |
| Gross Weight | 32Kg |
3. Construction:
| Physical | Polygonal |
| Enclosure | Imported multilayer birch plywood |
| Grille | Die-casting steel net with circular hole, black sponge inside |
| Paint | White Polyester coatings (whose color can be customized.) |
4. Details:
a.Unique connection plates are more stable, which you've nerver seen before.
b.Flexible installation method: Triangular support or Rigging system.
5. Application:
Conference room, Gymnasium, Stadium, church, Theatre, outdoor plaza, outdoor perform and etc. It can becombined with our sub-woof loudspeaker system.
6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.
