| Prod Model: |
WRS05 Topaz512 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Identification |
| Material: |
PVC |
| Type: |
RFID Card |
| Structure: |
Super Smart Card |
Product Description
Features:

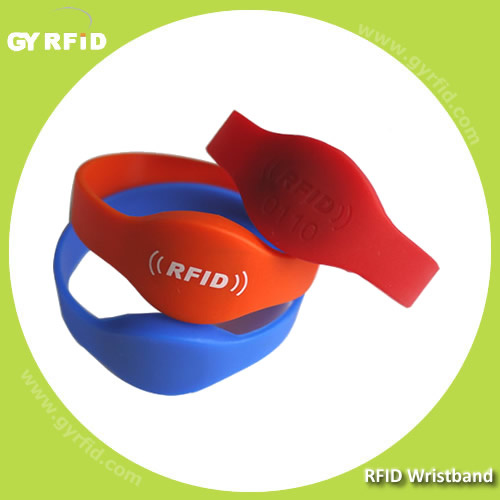

Model number: WRS05
Material: Silicon
Dimension: watch size height 26mm,loop type (dia74/65/60/55/45mm)
Color options: Red / Yellow/ blue/ black / white
Water Proof: yes
Operating Temperature: -20C ~ +55C
Storage Temperature: -25C ~ +60C
Personalization Support:
Silk-screen printing with logo/ engrave logo/ color filling / Chip encoding
Application:
Access control / Swimming pool /Pub, even management / Construction site
Chip model: Topaz512 (BCM20203T512)
Read/Write function: Read/Write
Protocol: ISO14443A
Operating Frequency: 13.56Mhz
Memory:
2 bytes of metal mask product identification header ROM
7 bytes of UID number
480 bytes of user read/write memory
User read/write memory arranged as 60 blocks of 8 bytes
Each 8-byte user read/write block is individually lockable by RFID command
64 bits (8 bytes) of One Time Programmable (OTP) bit area
OTP bits can be set both individually or as multiple bits together in one command
GyRFID is a a leading supplier of smart cards and RFID tags products for global System Integrators and distributors. It offers a wide range of products embedded with contact chip and contactless chip (LF, HF, UHF), which encapsulated into variety shapes like ISO Card, keyfob, wristband, disc tag, laundry tag. The products are widely applied in access control, payment system, inventory control, asset tracking, industrial managements. GyRFID also welcome OEM service and personalization to create value for the sponsors.
