| Prod Model: |
WOS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
600-30000 Liter/Hour |
| Working Principle: |
High Vacuum + Polymer Filter |
| Function: |
Dewater, Degas, Remove Particles in Oil |
| Purpose: |
Restore Lubricant Oil Property |
| Application: |
Lubricant Oil, Hydraulic Oil, Gear Oil...etc |
| Machine Color: |
Blue, Grey, Green, Yellow or at User's Option |
| Material: |
Carbon Steel or Stainless Steel |
| Structure: |
Mobile |
| Usage: |
Dewater, Degas, Remove Particles in Insulating Oil |
| Mechanical Principle: |
Vacuum+Patent |
| Type: |
Vacuum |
Product Description

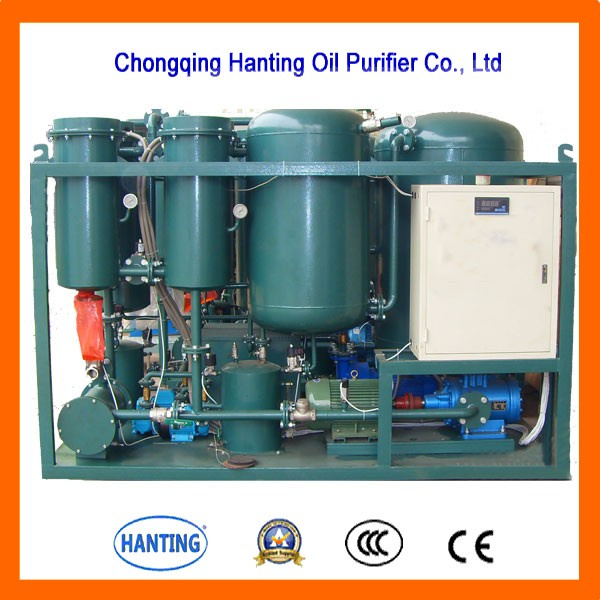

Technical Features:
WOS is particularly to treatment of high water content turbine oil, hydraulic oil, freezing machine oil, as well as other lubricant oil which needs to remove too much water and impurities.
1. High water removal and demulsifying capacity, which could remove large amount of water and minimal amount of water from oil.
2. Application of film evaporation and molecule evaporation technology enable quick demulsifying, and make the turbid and emulsified oil become limpid and clear.
3. The film evaporation and molecule evaporation technology is of a lifetime service (above 20 years), which avoids the periodic filter replacement, also reduces the cost of purification and the intensity of work.
4. It has a strong impurity removing capability, its automatic backwash filter element can remove large amount of impurities in the oil while the precise filtration materials can remove the granules in the oil serving as an oil cleaning system, which brings serious contaminated oil system back to the "Steam Turbine Oil Contamination Control Standard"
5. It is of high automatic, small size, safe and reliability. An infrared liquid level control system is used, which enables a man-machine separated operation, making the operation easier and more reliable.
|
Items |
Unit |
WOS-10 |
WOS-20 |
WOS-30 |
WOS-50 |
WOS-100 |
WOS-150 |
WOS-200 |
|
Flow rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
|
Working Pressure |
Mpa |
≤0.3 |
|
Power Supply |
|
380V 50HZ (or at user's option ) |
|
Noise |
dB(A) |
≤65~80 |
|
Continuous Running Hours |
h |
≥4000 |
|
Continuous Running Hours |
h |
≥150 |
|
Heating Power |
Kw |
60 |
60 |
60 |
90 |
150 |
180 |
210 |
|
Total Power |
Kw |
63 |
65 |
68 |
100 |
165 |
196 |
230 |
|
Dimension |
L |
mm |
1500 |
1600 |
1650 |
1700 |
1750 |
1800 |
2200 |
|
W |
mm |
1000 |
1200 |
1250 |
1300 |
1400 |
1400 |
1550 |
|
H |
mm |
2000 |
2100 |
2100 |
2200 |
2200 |
2200 |
2200 |
|
Indexes After filtration |
Demulsifying value |
min |
≤15/min(GB/F7035) |
|
Water content |
ppm |
≤100 |
|
Gas content |
% |
≤0.1% |
|
cleanliness |
|
≤NAS 6 |
