Prod Model: |
W2-D9237V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CE |
Video Output: |
2 RCA |
Audio Output: |
L/R Channel |
Placement: |
Dashboard |
Combination: |
3G |
Product Description
Special features:
1. External bluetooth microphone included now!!! (1.9M length)
3. 8" bigger digital screen you never seen in the market
4. Picture in Picture function
5. DVD info displays on the small dashboard LCD (MFD)
6. TMC function available (Optional)
7. Parking assistance included
8. Air conditioner/Climate display support
9. Phone book function

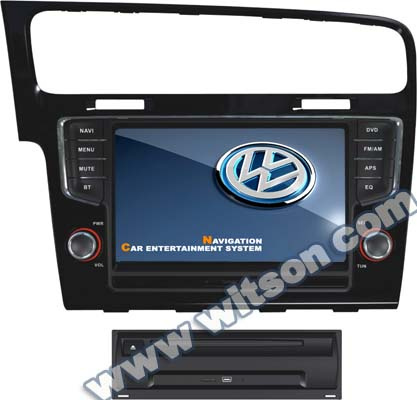

For VW GOLF 7 2013
8" digital 800*480 screen resolution
DVD info displays on the small dashboard LCD (MFD)
Built-in GPS system
Dual zone function (Listen Radio/CD while watching GPS image)
Built-in Bluetooth
USB port
SD card slots (Two SD card slots, one for GPS, one for Multimedia)
iPod control
RDS receiver function
Built-in TV tuner
Built-in DVB-T tuner (Optional)
Built-in ISDB-T tuner (Optional)
TMC function available (Optional)
Steering wheel control function (With CANBUS (MQB))
Auto rear viewing function
Red button backlight
The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia
GPS |
Operating System |
Windows CE 6.0 |
GPS Resolution Output |
800x480 |
Media Player |
Yes |
Card Supported |
Micro SD card |
MAX Memory Supported |
4GB |
Map Supported |
PolNav, Igo, Route66, Tom-Tom, Support 3D Maps |
GPS Baud Rate=9600, Com Port=2 |
Display Screen |
Screen Type |
Digital TFT touchscreen |
Resolution |
800*480 |
Screen Dimension |
8 inch 16:9 |
Language |
Main Interface Language |
English, Deutch, Franch, Português, Spanish, Italian, Espanol,Turk |
DVD Control Language |
English, Francais,Spainish |
GPS Console Language |
English, Deutch, Franch, Português, Spanish, Italian, Espanol,etc. |
DVD Playback |
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
Media |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
Bluetooth |
A2DP |
Yes |
Microphone |
Built-in+External |
Received Call |
Yes |
Dialled Call |
Yes |
Missed Call |
Yes |
Download Contacts |
Yes |
Store Contacts |
Yes |
TV Tuner |
Built-in Analog TV |
Yes |
Analog TV System |
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N,SECAM DK |
Built-in DVB-T Tuner |
Yes (Optional) |
DVB-T Format |
MPEG-2,Support 120km/h, 1 x Active Antenna Included |
Built-in ISDB Tuner |
Yes (Optional) |
Radio |
AM Frequency Range |
522-1620 (Europe/China), 530-1710 (America) |
FM Tuning Range |
87.5-108 (Europe/China), 87.5-107.9 (America) |
RDS |
Yes |
iPod Control |
Touchscreen Control |
Can Control Music Through Touchscreen |
Show Information Of Music |
No |
Play Video |
No |
Storage Media |
SD Card Slot For Music/Movie |
Micro SD card |
MAX Memory Supported 16GB |
USB Port For Music/Movie |
Normal USB Port |
MAX Memory Supported 16GB |
Back of the Unit |
Portable HD |
No |
Video & Audio |
Video Input |
1-Channel RCA Input |
Video Output |
2-Channel RCA Output |
Audio Input |
2-Channel RCA Input |
Audio Output |
4.1-Channel RCA Output (Sub-woofer support) |
Reverse Camera Input |
Yes |
3 Zone Out |
No |
Other Functions |
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone |
No |
Pictrue In Pictrue |
Yes |
Steering Wheel Control Function |
Yes |
CANBUS |
Yes |
MFD |
Yes |
TMC |
Yes (Optional) |
V-6 Disc Changer Memory |
No |
CDC |
No |
Parking Assistance |
No |
Game |
No |
Button Back Light |
Red Illumination |
Accessories |
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1 |
