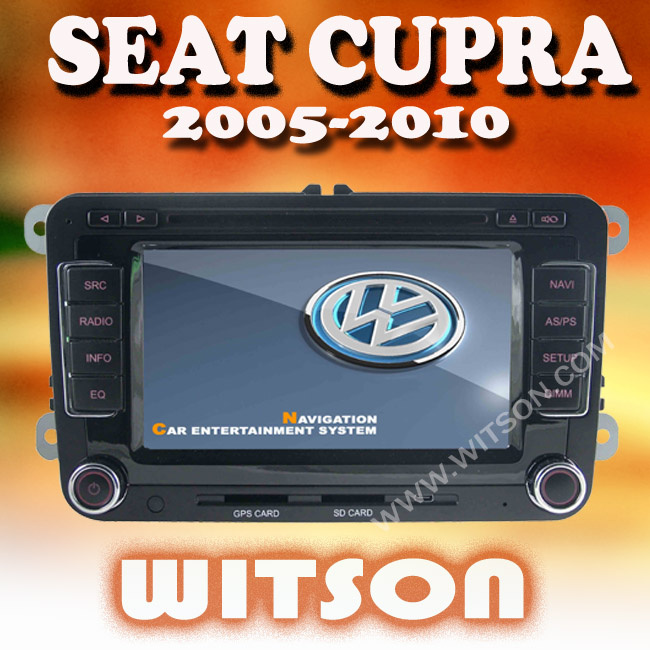

Prod Model: |
W2-D723V |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
GPS Built-in: |
800*480 Screen |
Certification: |
CE |
Voltage: |
12 V |
Product Description
Special features:
1. External bluetooth microphone included now! ! ! (1.9M length)
2. Same design as the original VW car DVD player
3. Supports all the buttons on the steering wheel control
4. Phone book function (show name of mobile Tel No. )
5. DVD info displays on the small dashboard LCD (MFD)
6. TMC function available (Optional)
7. Packing assistance included (Only Support Golf 6)
8. Air conditioner/Climate display support (Only Support Golf 6)
For Volkswagen GOLF(MK5, 6)(2003-2011)/POLO(MK5)(2010-2011)/PASSAT(MK6)(2006-2011)/PASSAT CC(2008-2011)/JETTA(2006-2011)TIGUAN(2007-2011)/TOURAN(2003-2010)/EOS(2006-2011)/SHARAN(2000-2009)/SCIROCCO(2008-2011)/SEAT LEON, CUPRA(2005-2010)
6.2 digital 800*480 screen resolution
DVD info displays on the small dashboard LCD (MFD)
Built-in GPS system
Dual zone function (Listen Radio/CD while watching GPS image)
Built-in Bluetooth
USB port
SD card slots (Two SD card slots, one for GPS, one for Multimedia)
iPod control
RDS receiver function
Built-in TV tuner
Built-in DVB-T tuner (Optional)
Built-in ISDB-T tuner (Optional)
TMC function available (Optional)
Steering wheel control function (With CANBUS (MQB))
Auto rear viewing function
Red button backlight
The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia
GPS |
Operating System |
Windows CE 6.0 |
GPS Resolution Output |
800x480 |
Media Player |
Yes |
Card Supported |
Normal SD card |
MAX Memory Supported |
4GB |
Map Supported |
PolNav, Igo, Route66, Tom-Tom, Support 3D Maps |
GPS Baud Rate=9600, Com Port=2 |
Display Screen |
Screen Type |
Digital TFT touchscreen |
Resolution |
800*480 |
Screen Dimension |
6.2 inch 16:9 |
Language |
Main Interface Language |
English, Francais, Deutsch, Italian, Espanol |
DVD Control Language |
English, Francais,Spainish |
GPS Console Language |
English, Deutch, Franch, Português, Spanish, Italian, Espanol,etc. |
DVD Playback |
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
Media |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
Bluetooth |
A2DP |
Yes |
Microphone |
Built-in+External |
Received Call |
Yes |
Dialled Call |
Yes |
Missed Call |
Yes |
Download Contacts |
Yes |
Store Contacts |
Yes |
TV Tuner |
Built-in Analog TV |
Yes |
Analog TV System |
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N,SECAM DK |
Built-in DVB-T Tuner |
Yes (Optional) |
DVB-T Format |
MPEG-2,Support 120km/h, 1 x Active Antenna Included |
Built-in ISDB Tuner |
Yes (Optional) |
Radio |
AM Frequency Range |
522-1620 (Europe/China), 530-1710 (America) |
FM Tuning Range |
87.5-108 (Europe/China), 87.5-107.9 (America) |
RDS |
Yes |
iPod Control |
Touchscreen Control |
Can Control Music Through Touchscreen |
Show Information Of Music |
No |
Play Video |
No |
Storage Media |
SD Card Slot For Music/Movie |
Normal SD card |
MAX Memory Supported 16GB |
USB Port For Music/Movie |
Normal USB Port |
MAX Memory Supported 16GB |
Back of the Unit |
Portable HD |
No |
Video & Audio |
Video Input |
1-Channel RCA Input |
Video Output |
2-Channel RCA Output |
Audio Input |
2-Channel RCA Input |
Audio Output |
4.1-Channel RCA Output (Sub-woofer support) |
Reverse Camera Input |
Yes |
3 Zone Out |
No |
Other Functions |
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone |
No |
Pictrue In Pictrue |
No |
Steering Wheel Control Function |
Yes |
CANBUS |
Yes |
MFD |
Yes |
TMC |
Yes (Optional) |
V-6 Disc Changer Memory |
No |
CDC |
Yes |
Parking Assistance |
No |
Game |
No |
Button Back Light |
Red Illumination |
Accessories |
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,USB Cable*1 |
