| Prod Model: |
W2-M045 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Car Radio |
| Placement: |
Dashboard |
| Certification: |
CE |
| Voltage: |
12/24V |
Product Description

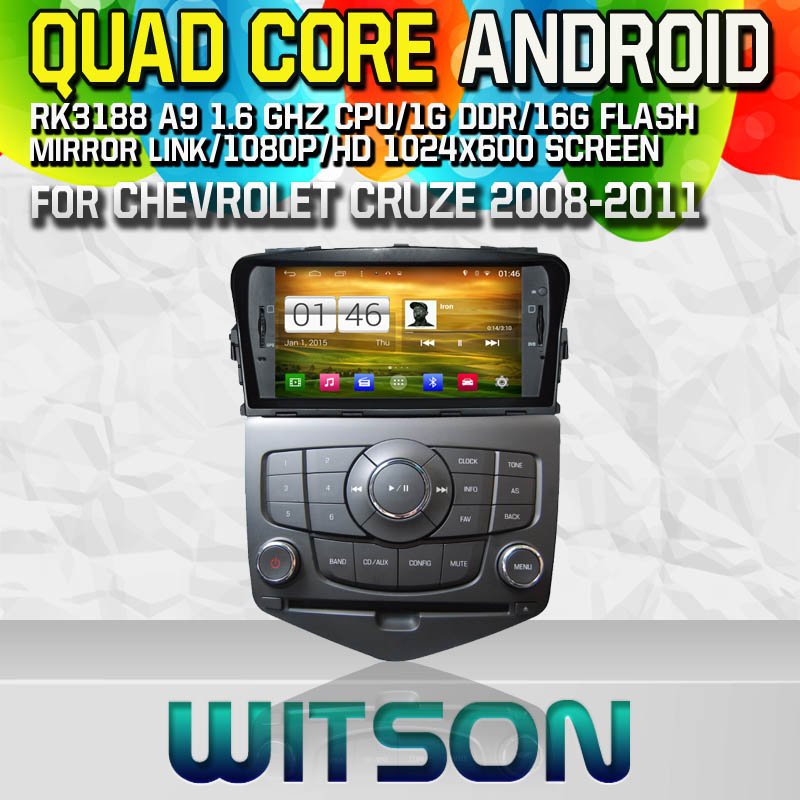

For CHEVROLET CRUZE (2008-2011)
Android 4.4.4 System
CPU: Rockchip 3188 Quad-Core 1.6GHZ Frequency
CAPACITIVE HD 1024X600 Screen
Mirror Link Function (One way control,Android-Support Android phone version 4.2 and above. iPhone-Support iOS 7.0 and above)
Built In 16GB Inand
1G DDR3 RAM Memory
1080P HD Video
External Bluetooth Microphone
Built-In WiFi Module
Built In ATV Function
Front DVR Camera-Operate by Touch Screen of DVD (High Solution & Speed) (DVR Camera Optional-Click For Details)
DVB-T MPEG4 Box-Operate by Touch Screen of DVD (DVB-T Box Optional-Click For Details)
Support External 3G Dongle
Support HD 2D & 3D Games
Front And Rear Camera Can Work Together
Support Thousands Of Softwares Downloading From Android Market
Support SD/MMC/SDHC SD Ports, SDHC Supports Max 64G, HDD
| S160 Platform Specify Info of Hardware and System |
| Type | Name | Description |
| Main CPU | RK3188 |
| CPU main frequency | Frequency 1.6GHZ | True Quad-Core Processors, Increase performance markedly |
| ROM | DDR III 1G | Standard ROM |
| Flash/harddisc capacitance | INAND FLASH 16G | Very large memory |
| Screen size | 7" 16:9 | HD 1024*600 screen |
| Color | 65000 color | Colorful display |
| Display screen | Mirror surface high definition and high transmittance LCD |
| OS | ANDROID 4.4.4 | Fast response, stable system |
| Touch panel | Capacitive multi touch screen |
| Display | Support high-definition screen, support LVDS input |
| Network | Connect external 3G/4G network card) |
| GPS receiver | Frequency:1575.42MHZ C/A CODE |
| Protocol standard:NMEA-0183 V3.01 |
| Channel - 66 channels for searching satellite, 22 channels for tracking. | Tracking sense: -164dBm |
| Locate:3m 2D RMS | Receivermodule:G591C GPS1613 |
| BT module | Working frequency:2.402GHZ-2.480GHZ ISM Band |
| MIC sense:-42dB | BC6 Bluetooth module BT MDC732 |
| Radio | Radio module 7706 IC |
| Video decoder | All format decoding,support 1080P |
| Audio Sounds(import) | America TDA 7415CB(Better sounds) |
| Amplifier IC(import) | Amplifier IC (TDA 7851L); High power, low dissipation |
| DVD Mechanism | Specification | LE CHI DVD Mechanism |
| Optical head | Sanyo 860C |
| Remark: |
| 1.System updates: no other equipment just insert the SD card can upgrade system, interface, MCU, Bluetooth, canbus program and etc; |
| 2.Bigscreen machine have no Traverse. |
WITSON is a professional CAR DVD PLAYER manufacturer and exporter in China. Especially for Special OEM integrated car DVD player for different car brand like BMW, Audi, Volvo, Volkswagen, SKODA, Toyota, Honda, Nissan, KIA, HYUNDAI, Ford, MAZDA etc....,
Welcome OEM order with customer brand name on the box and products, so if you want to order our models by OEM way, we can discuss it together
We have abundant exporting experience, espeically in EU market and South America market, so we can provide our customers with professional question reply and after-serivce support.
We attend every version of Hong Kong Electronics Fair (Spring Version 14-17 April; Autumn Version 13-16 October) and foreign Electronics Fair(CAR+SOUND in Germany, MOTORTECH in Spain, etc. ) as well.
If you have further inquiry, please feel free to contact us.
Contact us now!
