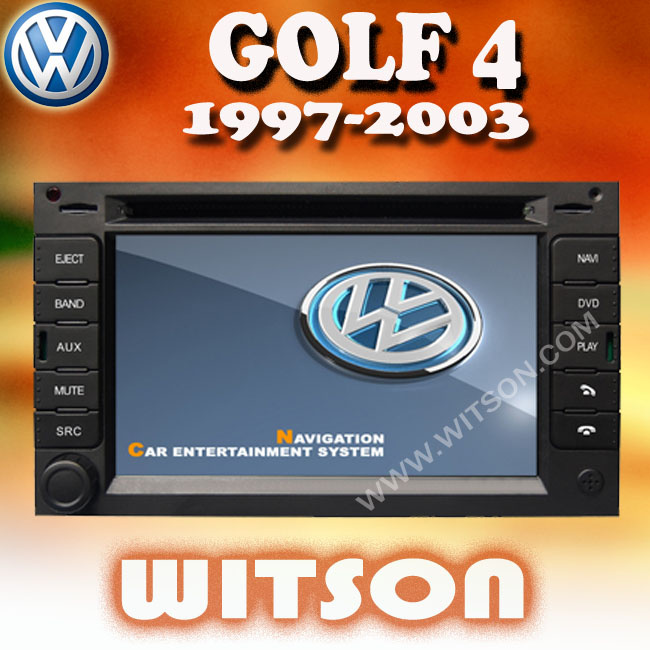

Witson Golf 4 Navigation W2-D9230V DVD Player

Prod Model:	W2-D9230V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	CE

Product Description

Special features:

1. V-6 disc changer memory(6 disc music can be memory in the unit while you listening the music)
2. Picture in Picture fucntion
3. All keys with Blue/Red/Purple three color adjustable, match your original car perfectly.
4. Three Zone function, listening to Radio/watching GPS image in the front and watching DVD/USB/SD/TV from the back Monitor Simultaneously

For Volkswagen Passat(MK5)(2001-2005)/JETTA(1998-2005)Bora/Polo(MK3, 4)(2000-2009)/GOLF(MK4)(1997-2003)/CITI GOLF, CHICO(2004-2009)/SHARAN(2000-2009)/TRANSPORTER(T4/T5)(1998-2009)Skoda Octavia I/Super
6.2" digital 800*480 screen resolution
Built-in GPS system
Dual zone function (Listen Radio/CD while watching GPS image)
Built-in Bluetooth
RDS receiver
USB port
SD card slots (Two SD card slots, one for GPS, one for Multimedia)
iPod control
Built-in TV tuner
Built-in DVB-T tuner (optional)
Built-in ISDB-T tuner (optional)
Steering wheel control function (CANBUS optional)

The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia

GPS
Operating System	Windows CE 6.0
GPS Resolution Output	800x480
Media Player	Yes
Card Supported	Micro SD Card
MAX Memory Supported	16GB
Map Supported	PolNav, Igo, Route66, Tom-Tom, Support 3D Maps
	GPS Baud Rate=9600, Com Port=2
Display Screen
Screen Type	Digital TFT touchscreen
Resolution	800*480
Screen Dimension	6.2 inch 16:9
Language
Main Interface Language	English Francais Deutsch Italian Espanol
DVD Control Language	English,Spainish,Turkish,Portuguese,Russia,etc.
GPS Console Language	English, Deutch, Franch, Portuguese, Italian, Espanol,Nederlands,etc.
DVD Playback
Disk Format Supported	DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG
Media	DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD
Bluetooth
A2DP	Yes
Microphone	Built-in
Received Call	Yes
Dialled Call	Yes
Missed Call	Yes
Download Contacts	No
Store Contacts	No
TV Tuner
Built-in Analog TV	Yes
Analog TV System	NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N ,SECAM-DK
Built-in DVB-T Tuner	Yes (Optional)
DVB-T Format	MPEG-2,Support 120km/h, 1 x Active Antenna Included
Built-in ISDB Tuner	No
Radio
AM Frequency Range	522-1620 (Europe/China), 530-1710 (America)
FM Tuning Range	87.5-108 (Europe/China), 87.5-107.9 (America)
RDS	Yes
for iPod Control
Touchscreen Control	Can Control Music Through Touchscreen
Show Information Of Music	No
Play Video	No
Storage Media
SD Card Slot For Music/Movie	Micro SD Card Slot
	MAX Memory Supported 32GB
USB Port For Music/Movie	Normal USB Port
	MAX Memory Supported 32GB
	Position: Back of the Unit
Portable HD	No
Video & Audio
Video Input	1-Channel RCA Input
Video Output	1-Channel RCA Output
Audio Input	2-Channel RCA Input
Audio Output	4-Channel RCA Output
Reverse Camera Input	Yes
3 Zone Out	Yes
Other Functions
2-Zone	Yes (Listen Radio/CD While Watching GPS Image)
3-Zone	Yes (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV        From The Sub-monitor Simultaneously)
Pictrue In Pictrue	Yes
Steering Wheel Control Function	Yes
CANBUS	Yes
MFD	No
TMC	No
V-6 Disc Changer Memory	Yes
CDC	No
Parking Assistance	No
Game	No
Button Back Light	Blue/Red/Purple Illumination
Accessories
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,GPS Antenna*1,Touchpen*1,USB Cable*1
