| Prod Model: |
W2-C065 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Car Radio |
| Certification: |
CE |
| Placement: |
Dashboard |
Product Description

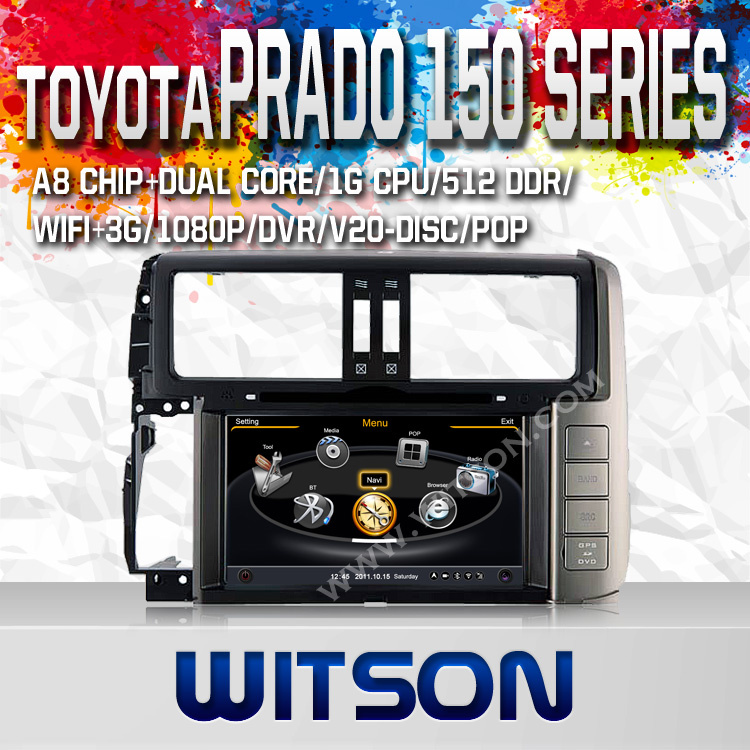

For Toyota PRADO 150 Series (2010-2011)
Special Features:
1GMHZ CUP Main Frequency/512M DDR II ROM
V-20 disc CDC Memory (Copy 20 Disc Music Inside Memory)
Built in 4G FLASH
3G/WiFi Internet Ready
Front DVR Camera (High Solution & Speed) (Optional)
1080P HD Video Display
Split-screen Image Function
File Management
Video and Audio Copy
Bluetooth Phone Book/Searching
FM/AM Tuner /RDS
Auto Rear Viewing Function
iPod Ready Optional
Built-in HD GPS/Dual Zone System
Unique 3D Flash Graphical User Interface
DVB-T Box (Touch Screen Operation, No Need Remote Control) (Optional)
Steering Wheel Control Support
--------------------------------------------------------------------------------
The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia
|
S100 platform design request |
|
hardware & system explanation |
|
Type |
Name |
Description |
|
CPU main CPU |
Samsung S5PV210 |
CPU high quality Samsung CPU |
|
frequency |
1GMHZ |
CPU main frequency |
|
ROM |
DDR II 512MB |
standard ROM |
|
hard disc |
INAND FLASH 4GB (16G) INAND FLASH 4GB can be increased to 16G |
Can make built in map while the hard disc is 4G |
|
resolution |
800*480 |
high resolution digital panel |
|
color |
65000 color |
colorful display |
|
OS |
WINCE 6.0 |
Support muti-language,support oversee map |
|
GPS receiver |
frequency :1575.42MHZ C/A CODE |
|
protocol standard:NMEA-0183 V3.01 |
|
channel-66 channel for serching sateellite,22 channel for tracking |
|
tracking sense:-164dBm |
|
locate:3m 2D RMS |
|
BT module |
working frequency:2.402GHZ-2.480GHZ ISM Band |
|
MIC sense: -42dB |
|
touch panel |
4 wire resistance(ready adaptor for capacity panel on PCB) |
|
|
|
S100 - platform design request - function Description |
|
Main function |
Basic function Description |
|
system update |
no need special tools,update all software such as UI/MCU by sd card only |
|
Video fuction set up |
Lightness/ contrast/ color adjustment,support style set up |
|
Doual zone |
DVD TV AUX Vedeo output,1 chanel CVBS video output,DVD TV AUX optional |
|
Daul zone audio harness output,stereo harness output,TV AUX IPOD RADIO DVD for optional;can also select Bass for main channel output |
|
Add dual zone control adaptor |
|
Bass output |
Separated output |
|
ipod function |
Belongs to main-board,auto display when connects to IPOD device |
|
Video playing(not support currently,but there is port ready for future) |
|
Support audio playing,name display,album, singer's information |
|
DVD function |
Car Spec DVD loader,Build in virtual disc(20 disc)changer |
|
support DVD\DVD-R\DVD±RW\HDCD\CD-R\CD±RW\MP3\MP4 \Picture CD\VCD\WMA |
|
AUX function |
2 channel,support front &rear AUX input (alternative) |
|
TV function |
support analog TV,support all TV system, Analog TV & digital TV-alternative. |
|
DVB-T ISDB CMMB Support digital TV,DVB-T ISDB CMMB,support 2tuners |
|
Radio |
Build in car spec AM/FM tuner,support RDS,support local& long-distance |
|
99 station for AM,99 station preset for FM |
|
support to scan different frequency station by area step |
|
Bluetooth |
support built in MIC,external MIC,standard adaptor,no MIC wire |
|
support BT 2.0 ,A2DP,support phone book,calling record,BT music |
|
support phone book,calling recall,phone book transferred |
|
phone book language is the same as the cell phone |
|
POP |
3-Zone POP |
|
GPS |
Build in high quality GPS module,gain satellite signal faster and stable |
|
support GPS signal query TMC |
|
GPS audio can be work together with front &rear speakers |
|
Rear camera |
1 channel video input,Enter camera menu once in reverse |
|
support device on when the car in reverse |
|
External digital TV box |
DVB-T,CMMB,ISDB,support external digital TV box-DVB-T,CMMB,ISDB,support double digital tuner.Build in/external is alternative |
|
External USB (2 channel,1A output electric current) |
USB1:USB2.0 USB1:USB 2.0,for media playing,photos reading |
|
support WMW,AVI,MPEG,MP3,MP4,RMVB(1080P),JPEG format,support name album,singer's name |
|
USB2-for 3G internet or WIFI Input |
|
SD card |
SD1- for navigation,support SD2.0 protocol standard SDHC,support 32 GB. Support map data |
|
support SD2-for media palying and photo reading. |
|
support WMV,AVI,MPEG,MP3,MP4,JPEG,support name,album,singer's name |
|
Game |
built in games |
|
tooling |
build in normal tools,calculator ,calendar. |
|
GOD |
support |
|
Video recording |
can record DVD,AUX,TV |
|
File magement |
build in flash and external SD,USB for data transferred |
