Prod Model: |
W2-C150 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CE |
Placement: |
Dashboard |
Combination: |
GPS |
Product Description

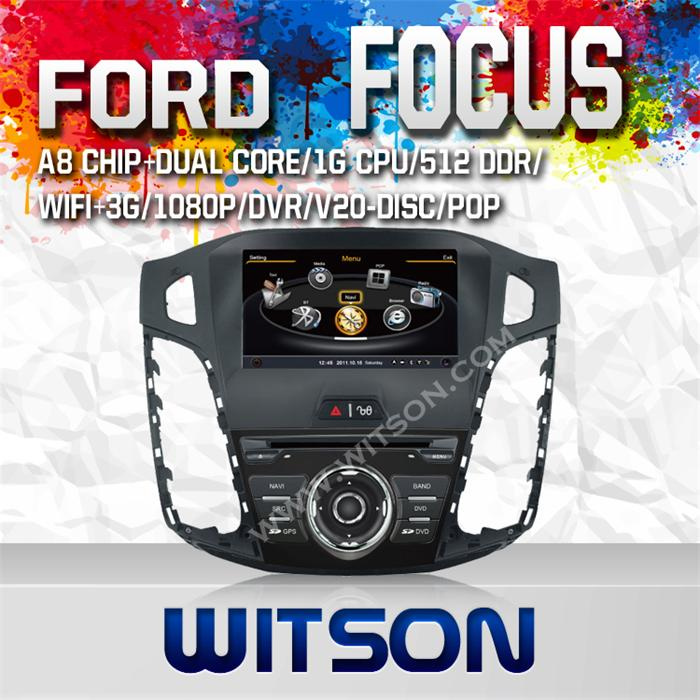

For Ford FOCUS 2012
Special features: *Support original car air-condition and out of car temperature display
*Support original car parking system display and parking senses sound reminde
*Support original car electronic clock display and set
*Support car door condition display
Special Features:
1GMHZ CUP Main Frequency/512M DDR II ROM
V-20 disc CDC Memory (Copy 20 Disc Music Inside Memory)
Built in 4G FLASH
3G/WiFi Internet Ready
Front DVR Camera (High Solution & Speed) (Optional)
1080P HD Video Display
Split-screen Image Function
File Management
Video and Audio Copy
Bluetooth Phone Book/Searching
FM/AM Tuner /RDS
Auto Rear Viewing Function
iPod Ready Optional
Built-in HD GPS/Dual Zone System
Unique 3D Flash Graphical User Interface
DVB-T Box (Touch Screen Operation, No Need Remote Control) (Optional)
Steering Wheel Control Support
The following maps of countries are available now:
EU MAP: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Island, England, Ireland, Lisle of Man, Northern Ireland, Scotland
GULF AREA: Saudi Arabia, Oman, Bahrain, United Arad Emirate, Qatar, Kuwait
OTHER MAP: America, Canada, Australia, Turkey, Russia, Brazil, Argentina, South Africa, Chile are available
Menu Language& Navigation Voice: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russia
S100 platform design request |
hardware & system explanation |
Type |
Name |
Description |
CPU main CPU |
Samsung S5PV210 |
CPU high quality Samsung CPU |
frequency |
1GMHZ |
CPU main frequency |
ROM |
DDR II 512MB |
standard ROM |
hard disc |
INAND FLASH 4GB (16G) INAND FLASH 4GB can be increased to 16G |
Can make built in map while the hard disc is 4G |
resolution |
800*480 |
high resolution digital panel |
color |
65000 color |
colorful display |
OS |
WINCE 6.0 |
Support muti-language,support oversee map |
GPS receiver |
frequency :1575.42MHZ C/A CODE |
protocol standard:NMEA-0183 V3.01 |
channel-66 channel for serching sateellite,22 channel for tracking |
tracking sense:-164dBm |
locate:3m 2D RMS |
BT module |
working frequency:2.402GHZ-2.480GHZ ISM Band |
MIC sense: -42dB |
touch panel |
4 wire resistance(ready adaptor for capacity panel on PCB) |
|
S100 - platform design request - function Description |
Main function |
Basic function Description |
system update |
no need special tools,update all software such as UI/MCU by sd card only |
Video fuction set up |
Lightness/ contrast/ color adjustment,support style set up |
Doual zone |
DVD TV AUX Vedeo output,1 chanel CVBS video output,DVD TV AUX optional |
Daul zone audio harness output,stereo harness output,TV AUX IPOD RADIO DVD for optional;can also select Bass for main channel output |
Add dual zone control adaptor |
Bass output |
Separated output |
ipod function |
Belongs to main-board,auto display when connects to IPOD device |
Video playing(not support currently,but there is port ready for future) |
Support audio playing,name display,album, singer's information |
DVD function |
Car Spec DVD loader,Build in virtual disc(20 disc)changer |
support DVD\DVD-R\DVD±RW\HDCD\CD-R\CD±RW\MP3\MP4 \Picture CD\VCD\WMA |
AUX function |
2 channel,support front &rear AUX input (alternative) |
TV function |
support analog TV,support all TV system, Analog TV & digital TV-alternative. |
DVB-T ISDB CMMB Support digital TV,DVB-T ISDB CMMB,support 2tuners |
Radio |
Build in car spec AM/FM tuner,support RDS,support local& long-distance |
99 station for AM,99 station preset for FM |
support to scan different frequency station by area step |
Bluetooth |
support built in MIC,external MIC,standard adaptor,no MIC wire |
support BT 2.0 ,A2DP,support phone book,calling record,BT music |
support phone book,calling recall,phone book transferred |
phone book language is the same as the cell phone |
POP |
3-Zone POP |
GPS |
Build in high quality GPS module,gain satellite signal faster and stable |
support GPS signal query TMC |
GPS audio can be work together with front &rear speakers |
Rear camera |
1 channel video input,Enter camera menu once in reverse |
support device on when the car in reverse |
External digital TV box |
DVB-T,CMMB,ISDB,support external digital TV box-DVB-T,CMMB,ISDB,support double digital tuner.Build in/external is alternative |
External USB (2 channel,1A output electric current) |
USB1:USB2.0 USB1:USB 2.0,for media playing,photos reading |
support WMW,AVI,MPEG,MP3,MP4,RMVB(1080P),JPEG format,support name album,singer's name |
USB2-for 3G internet or WIFI Input |
SD card |
SD1- for navigation,support SD2.0 protocol standard SDHC,support 32 GB. Support map data |
support SD2-for media palying and photo reading. |
support WMV,AVI,MPEG,MP3,MP4,JPEG,support name,album,singer's name |
Game |
built in games |
tooling |
build in normal tools,calculator ,calendar. |
GOD |
support |
Video recording |
can record DVD,AUX,TV |
File magement |
build in flash and external SD,USB for data transferred |
WITSON is a professional CAR DVD PLAYER manufacturer and exporter in China. Especially for Special OEM integrated car DVD player for different car brand like BMW, Audi, Volvo, Volkswagen, SKODA, Toyota, Honda, Nissan, KIA, HYUNDAI, Ford, MAZDA etc....,
Welcome OEM order with customer brand name on the box and products, so if you want to order our models by OEM way, we can discuss it together
We have abundant exporting experience, espeically in EU market and South America market, so we can provide our customers with professional question reply and after-serivce support.
We attend every version of Hong Kong Electronics Fair (Spring Version 14-17 April; Autumn Version 13-16 October) and foreign Electronics Fair(CAR+SOUND in Germany, MOTORTECH in Spain, etc. ) as well.
If you have further inquiry, please feel free to contact us.
