Prod Model: |
W2-D8422C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Car Radio |
Placement: |
Dashboard |
Certification: |
CE |
Audio Output: |
L/R Channel |
Product Description
ANDROID OS Click HERE
New Version Released now! Best Choise for Windows Car DVD GPS!

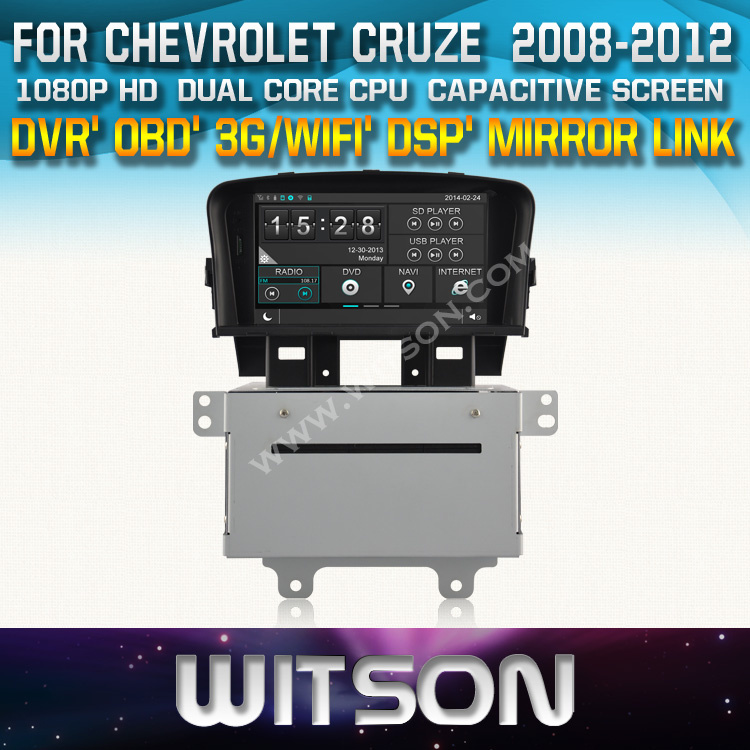

For CHEVROLET CRUZE (2008-2012)
Manual (English) Video Introduction
Capacitive Touch Screen
DSP Audio/4.1 channel Audio output
Front DVR Camera-Operate by Touch Screen of DVD (High Solution & Speed) (DVR Camera Optional-Click For Details)
Support External WIFI Dongle (Wifi Dongle Optional-Click For Details)
Support External 3G Dongle (3G Dongle Optional-Click For Details)
Support OBD Display-Operate by Touch Screen of DVD (OBD Adaptor Optional-Click For Details)
1080P HD Video Display
Support Max 32GB SD/USB/HD
Audio Copy From CD to SD/USB
Auto Rear Viewing Function
FM/AM Tuner /RDS
Bluetooth Function
iPod/iPhone Ready
Built-in HD GPS/Dual Zone System
Unique 3D Flash Graphical User Interface
Mirror Link Function
Steering Wheel Control Support
Display Screen |
Screen Type | Capacitive TFT Touch Screen |
Resolution | 800*480 |
Screen Dimension | 7 inch 16:9 |
Illumination (Button Backlight) |
Back Light Color | Blue Button Light |
Internet |
3G | Yes (3G Dongle Optional-Clike Here For Details) |
WIFI | Yes (WiFi Dongle Optional-Clike Here For Details) |
UI Language |
Main Interface Language | English, P,Deutsch,Français,Português,Español,, etc. |
DVD Control Language | English, P,Deutsch,Français,Português,Español,, etc. |
GPS Console Language | English, P,Deutsch,Français,Português,Español,, etc. |
Radio |
AM Frequency Range | 522-1620 (Europe), 530-1710 (America),522-1620 (Russia) |
FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America),65.0-108.0 (Russia) |
RDS | Yes |
DVD Playback |
1080P | Yes |
Disk Format Supported | DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
Media | DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
GPS |
Operating System | Windows CE 6.0 |
GPS Resolution Output | 800x480 |
Card Supported | Micro SD Card |
MAX Memory Supported | 32GB |
Map Supported | Navitel,Igo,PolNav,Sygic,Route66,Tom-Tom, Support 3D Maps |
GPS Baud Rate=9600, Com Port=2 |
Bluetooth |
A2DP | Yes |
Phonebook Download | Yes |
Microphone | External |
Received Call | Yes |
Dialled Call | Yes |
Missed Call | Yes |
Store Contacts | Yes |
Storage Media |
SD Card Slot For Music/Movie | Micro SD Card Slot |
MAX Memory Supported 32GB |
USB Port For Music/Movie | Normal USB Port |
MAX Memory Supported 32GB |
Position:Front Panel+Back of the Unit |
2.0 Version |
Portable HD | Yes |
TV Tuner |
Built-in Analog TV | NO |
Analog TV System | / |
Built-in DVB-T Tuner | / |
DVB-T Format | / |
Built-in ISDB Tuner | / |
iPod/iPhone Control |
Version | iPod/iPhone 4/iPhone 4S |
Touch Screen Control | Can Control Music Through Touchscreen |
Show Information Of Music | Yes |
Play Video | No |
Video & Audio |
DSP Audio Processor | Yes |
Front DVR Input | Yes (DVR Camera Optional-Clike Here For Details) |
Video Input | 1-Channel RCA Input |
Video Output | 2-Channel RCA Output |
Audio Input | 2-Channel RCA Input |
Audio Output | 4.1-Channel RCA Output |
Reverse Camera Input | Yes |
3 Zone Out | No |
Other Functions |
OBD (On-Board Diagnostic) | Yes (BOD Adaptor Optional-Clike Here For Details) |
Front DVR Camera | Yes (DVR Camera Optional-Clike Here For Details) |
Phone-Link (Mirror Link) | Optional |
2-Zone | Yes (Listen Radio/CD While Watching GPS Image) |
3-Zone | No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV From The Sub-monitor Simultaneously) |
Steering Wheel Control | Yes |
CANBUS | Yes |
MFD | No |
TMC | No |
CD Copy to USB/SD Card | Yes |
Parking Assistance | No |
Wallpaper DIY | Yes |
Game | Yes |
Accessories |
User Manual*1,Power Cable*1,Remote Control*1,iPod Control Wire*1, RCA Cable*1,USB Cable*1,External Microphone*1,GPS Antenna*1 |
