| Prod Model: |
W2-D9760A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
Product Description
Special Features:

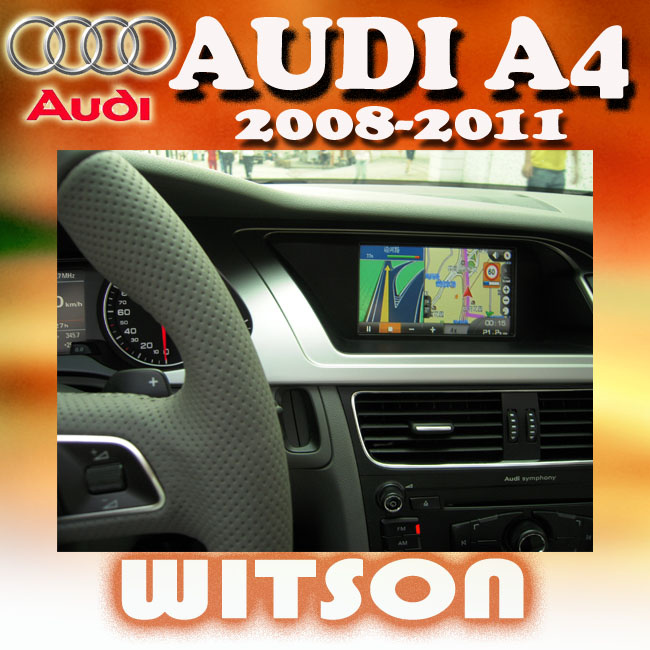

1. Design for Audi A4, A5, Q5 (2008~2010) car with orignal screen to work with the main DVD with GPS/iPod/Bluetooth
2. Support original car information without any modification ( fuel consumption, air-conditional temperature ect. )
3. DVD sound come from original car speaker, GPS sound come from GPS speaker and original car speaker.
4. Support Audi A4, A5. Q5 with or without MMI system (This model can fit for car which have orginal color monitor)
----------------------------------------------------------------------------
The multimedia navigation system is a multi-functional, intelligent, navigation, audio and video entertainment multimedia system that research and desigh for Audi A4, A5. Q5 with or without MMI system.
It integrates smart touch control navigation, DVD, Bluetooth hands-free phone, digital TV and other multi-functional as a whole, and it can also be an external USB, CDC discs box, iPod, reverse rear view camera and so on equipment, by the original vehicle MMI system to render images and voice of the corresponding function, and retain all the features of the original car.
Product Features
The system through the professional vehicle regulation design standards. It realized intelligent, professional, human manipulation of the multimedia navigation system.
|
GPS |
|
Operating System |
Windows CE 6.0 |
|
GPS Resolution Output |
800x480 |
|
Media Player |
Yes |
|
Card Supported |
Normal SD card |
|
MAX Memory Supported |
16GB |
|
Map Supported |
PolNav, Igo, Route66, Tom-Tom, Support 3D Maps |
|
GPS Baud Rate=9600, Com Port=2 |
|
Display Screen |
|
Screen Type |
Original TFT Screen |
|
Resolution |
800*480 |
|
Screen Dimension |
6.5 inch 16:9 |
|
Language |
|
Main Interface Language |
English |
|
DVD Control Language |
English,Francais,Spainish,Deutch,Italiano,etc. |
|
GPS Console Language |
English, Deutch, Franch, Portuguese, Spanish, Italiano, Espanol,etc. |
|
DVD Playback |
|
Disk Format Supported |
DVD/VCD/CD/MP3/MPEG4/CD-R/WMA/JPEG |
|
Media |
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/CD/CD-R/CD-RW/MP3/MP4(DIVX)/VCD/SVCD |
|
Bluetooth |
|
A2DP |
Yes |
|
Microphone |
Built-in |
|
Received Call |
Yes |
|
Dialled Call |
Yes |
|
Missed Call |
Yes |
|
Download Contacts |
No |
|
Store Contacts |
No |
|
TV Tuner |
|
Built-in Analog TV |
No |
|
Analog TV System |
/ |
|
Built-in DVB-T Tuner |
Optional |
|
DVB-T Format |
MPEG-2,Support 120km/h, 1 Channel Antenna Included |
|
Built-in ISDB Tuner |
Optional |
|
Radio |
|
AM Frequency Range |
Support Original Radio |
|
FM Tuning Range |
Support Original Radio |
|
RDS |
Support Original Radio |
|
iPod Control |
|
Touchscreen Control |
/ |
|
Show Information Of Music |
/ |
|
Play Video |
/ |
|
Storage Media |
SD Card Slot For Music/Movie |
NO |
|
/ |
|
USB Port For Music/Movie |
Normal USB Port |
|
MAX Memory Supported 16GB |
|
Position: Front Panel |
|
Portable HD |
No |
|
Video & Audio |
|
Video Input |
1-Channel RCA Input |
|
Video Output |
2-Channel RCA Output |
|
Audio Input |
2-Channel RCA Input |
|
Audio Output |
2-Channel RCA Output |
|
Reverse Camera Input |
Yes |
|
3 Zone Out |
No |
|
Other Functions |
|
2-Zone |
Yes (Listen Radio/CD While Watching GPS Image) |
|
3-Zone |
No (Listening To Radio/Watching GPS Image At The Front And Watching DVD/SD/USB/TV
From The Sub-monitor Simultaneously) |
|
Pictrue In Pictrue |
No |
|
Steering Wheel Control Function |
No |
|
CANBUS |
Yes |
|
MFD |
No |
|
TMC |
No |
|
V-6 Disc Changer Memory |
No |
|
CDC |
No |
|
Parking Assistance |
No |
|
Game |
No |
|
Button Back Light |
Red Illumination |
|
Accessories |
|
User Manual*1,Power Cable*1,Remote Control*1,GPS Antenna*1,Microphone*1,GPS Speaker*1 |
WITSON is a professional CAR DVD PLAYER manufacturer and exporter in China. Especially for Special OEM integrated car DVD player for different car brand like BMW, Audi, Volvo, Volkswagen, SKODA, Toyota, Honda, Nissan, KIA, HYUNDAI, Ford, MAZDA etc....,
Welcome OEM order with customer brand name on the box and products, so if you want to order our models by OEM way, we can discuss it together
We have abundant exporting experience, espeically in EU market and South America market, so we can provide our customers with professional question reply and after-serivce support.
We attend every version of Hong Kong Electronics Fair (Spring Version 14-17 April; Autumn Version 13-16 October) and foreign Electronics Fair(CAR+SOUND in Germany, MOTORTECH in Spain, etc. ) as well.
If you have further inquiry, please feel free to contact us.
Contact us now!
