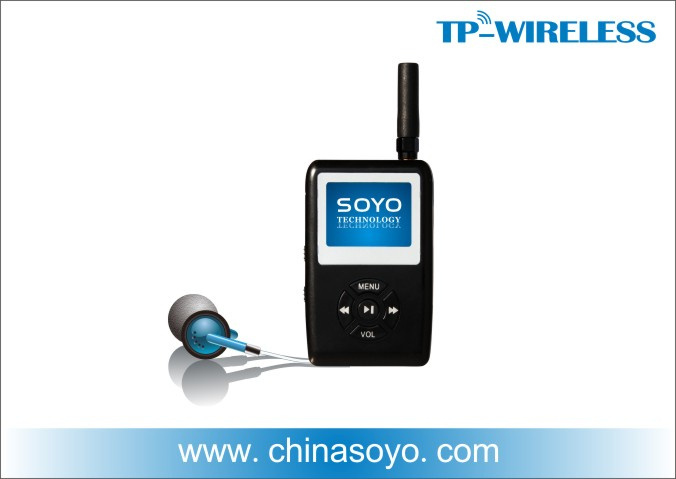

Wireless MP3 Transmitter\Portable MP3 Transmitter
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
500PIC |
Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Prod Model: |
TP-WTG04 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shortest Latency: |
< 0.5ms |
Frequency Response: |
20 -20KHz |
Brand Name: |
Soyo |
Model Number: |
Soyo-Wtg2010-MP3 |
Use: |
School, Church, Conference |
Rx Supply Voltage: |
2.5_3.6v DC |
Frequency: |
2.400-2.483GHz |
Type: |
Active |
Sound Quality: |
Anti-Interference |
Special Feature: |
Wireless, Portable |
Screen: |
TFT |
SNR: |
95dB |
Recording Modes: |
Without |
Operating System: |
Windows |
Memory Size: |
2GB |
Function: |
2.4G |
Style: |
Card |
PC Interface: |
2.4G |
Product Description
Spec*Performance characteristics.
* Operate frequency: 2400-2483MHz
* Channel: 20
* Small in size, high integration
* Shortest sound delay: <0.5 ms
* Low power consumption, wide voltage input, the transmitter can work at least 6 hours continuously, the receiver can work at lease 30 hours continuously.
* Real digital transmit, with the encrypt pairing function, the receiver which not been paired will not receive the signal of this group.
* Automatic scan function. (Refer order description)Description of Wireless Portable MP3 audio guide transmitterPower(input voltage) 3.7VNokia lithium battery
Work currency 120Ma(MAX)
Operate tenperature -25 ~ 85 C
Frequency 2400 --~ 2483MHz
Modulate GFSK
Channel width 4MHz
Channel choose method One-way loop
Transmit power 19dBm
Input level Max 1.0Vpk
Input impedance 10k Ohm
Input interface Two kind input mode: 1. Microphone input2. Stereo sound input(confirm when order)
Output impedance 1k Ohm
Input-output gain ratio 1: 1
Delay < 0.5 ms
SNR 95 dB
Distortion 0.3 % @ 1KHz
Dynamic range 90dB
Left and right channel isolation 85 dB
NO. |
Description |
Transmitter module |
Receiver module |
1 |
Work voltage |
3.6- 6V DC |
2.5 - 3.6V DC |
2 |
Work electric current |
Max 120mA |
Max 35mA |
3 |
Work temperature |
-15 - +65 |
-15 - +65 |
4 |
Frequency response |
2400 - 2483 MHz |
2400 - 2483 MHz |
5 |
Modulation |
GFSK |
|
6 |
Baud rate |
2M bps |
2M bps |
7 |
Channel space |
4MHz |
4MHz |
8 |
Stabilization of frequency |
+/-156KHz |
+/-156KHz |
9 |
Work frequency range |
2400 - 2483 MHz |
2400 - 2483 MHz |
10 |
Work channel |
20 CH |
20 CH |
11 |
Channel space of module |
4MHz |
4MHz |
12 |
Output power |
0-20 dBm |
|
13 |
Receiver sensitivity |
|
90dBm |
14 |
Input power |
Max 1.0Vrms |
|
15 |
Input impedance |
10k Ohm |
|
16 |
Input mode |
Two input modes:
1. Microphone
2. Stereo audio |
|
17 |
Stereo output 1 |
|
30mW RL = 32Ω |
18 |
Stereo output 2 |
|
50mW RL = 16Ω |
19 |
Output impedance |
|
1k Ohm |
20 |
RF Distance |
100-150 meters in the open area under 20dBm |
21 |
Output input gain ratio |
1:1 |
22 |
Frequency response |
20 - 20000Hz ( +/1dB ) |
23 |
The latency time |
< 0.5 ms |
24 |
Sampling ratio |
64kHz@16 bit*2 |
25 |
SNR |
95 dB |
26 |
Distortion |
0.8%@1kHz |
27 |
Dynamic range |
90dB |
28 |
Separation between the left and right track |
70 dB |
