| Prod Model: |
MC-9007 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Signal Transmission: |
Wireless |
| Application: |
Amplify |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Sound Field Force: |
Pressure Type |

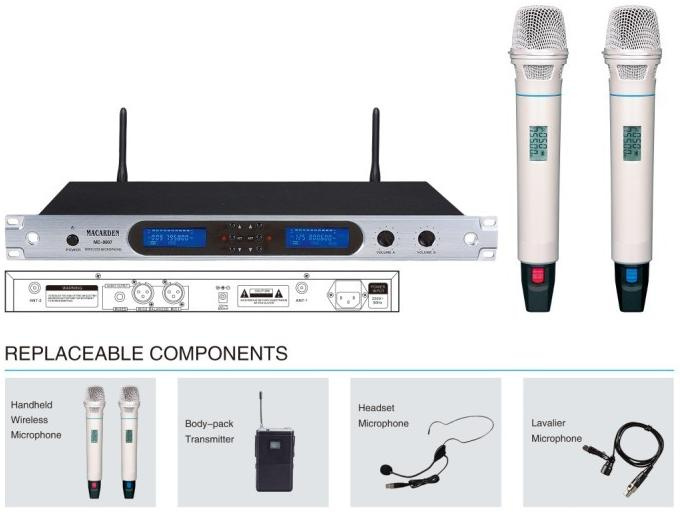

Product Description
Specifications:
Frequency Range: 730-960MHz
Automatic Transmitter Setup channels: 200
Display Model: LCD
Oscillation Mode: PLL synthesized
Frequency Stability: ± 10ppm
Receive Mode: Superheterodyne
Input Sensitivity: -90dBm
Audio Response: 40Hz~20kHz
T. H. D. At 1kHz: ≤ 0.5%
Signal to Noise Ratio: ≥ 110dB
RF Output: 10mW(50mW Max)
Modulation Mode: FM
Battery Requirement: 2× 1.5V AA size
Work Distance: In ideal condition 100m
Main Feasure:
1. Using UHF650-950MHz Band to avert interference frequency.
2. Using stability PLL circuit of high-precision to lock frequency.
3. Builds-in 100Pre-set channels for the frequency choice.
4. CPU Control can make channel and frequency conversion and locking function of the mute regulating.
5. Equipped with exquisite LCD panel for working open and shut
6. Each dual-channel true diversity reception circuit, effectively prevent dead spots and increase the distance to receive.
7. With audio compressing-expanding technology, the machine can lower noises and increase the dynamic range. It can also lower the reecho.
8. The receiver uses multilevel high frequency; Enlarge so it has high sensitivity.
9. It has channel separate output and Mix output, and it can be connected with the sound-adjusting stage and amplifier.
10. Has the level and the noise dual mute digital control circuit.
11. It has the best power button impact noise elimination of the circuit.
12. Uniform cardioid' s pickup pattern isolates the main sound source and minimizes background noise.
13. Effective, built-in spherical wind and pop filter.
14. Choose excellent chipset and high quality component, so that its timbre will be very good.
15. Longest distance in open is 120m and the shortest distance in open is 80m.
16. Using volume of eight control, it' s convenient.
17. Infrared automatic function of frequency, and frequency transmitter and receiver automatically sync.
