| Prod Model: |
LHY-550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wireless Microphone: |
300 Meters |
| Application: |
Amplify |
| Signal Transmission: |
Wireless |
| Directivity: |
Bi-direction |
| Sound Channel: |
Stereo |
| Transducer Principle: |
Electrodynamic Microphone |
| Style: |
Wireless Microphone |
| Wireless Technology: |
Infrared |
Product Description

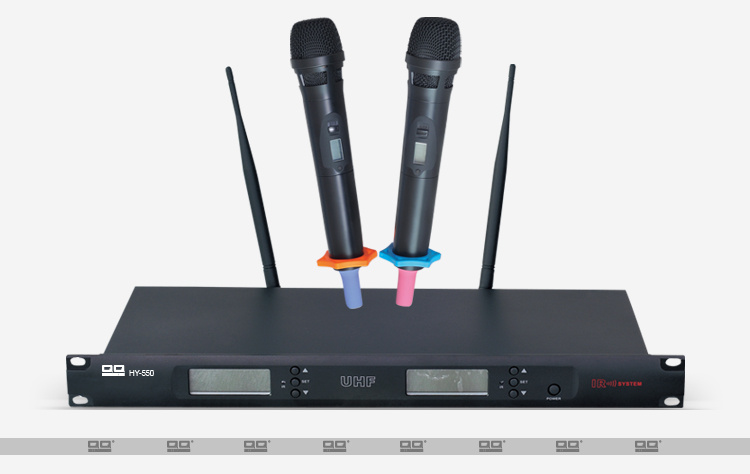

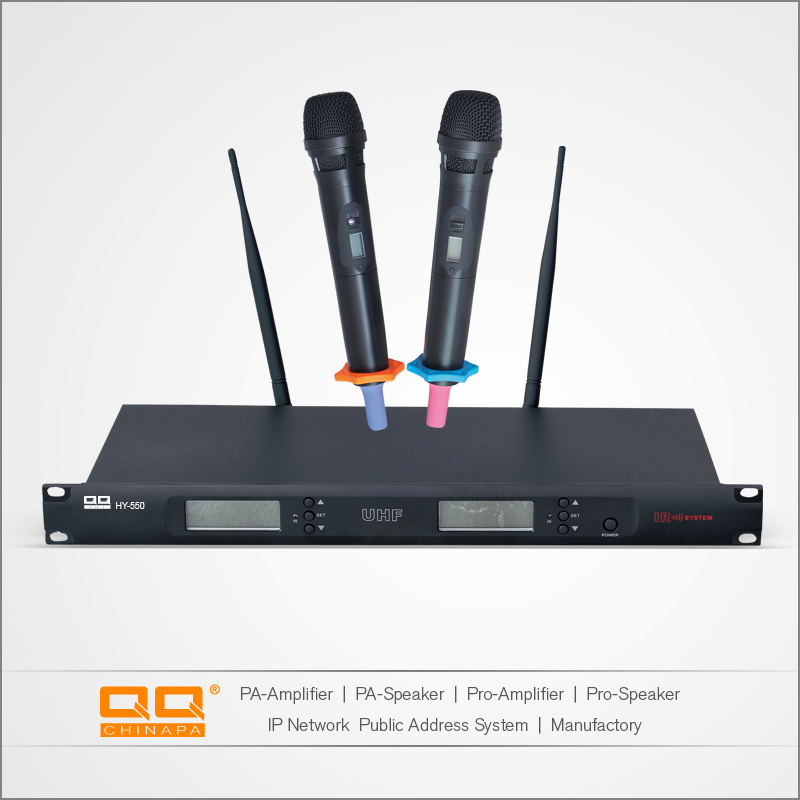

Wireless Microphone,300 meters long distance supported, 2/4 channels
Main Function Description:
1*U for the 2nd wireless microphone, distance is up to 300 meters'
2*Frequency range: 740-790MHz
3*2 channels,total number of channels can be 200 through sets of extension
4*Strong anti-jamming capbility for above 6 sets of machines 5*PLL phase-locked loop technology,frequency stability <+100Hz
6*LCD display channels and battery conditions
7*Working distance: Iindoor is more than 100 meters,outdoor is 300 meters
| Model:LHY-550 |
|
| Transmitter Operation frequency range :740MHz-790MHz | SNR:<-95dB |
| Launch Radio Frequency Power:<=30 mW | Distoration:<=1% |
| Radio Frequency Modulation Noise:<-65 dB | Output Amplitude:LINE 160mV/XLR 12mV(400Hz/20KHz) |
| Radio Frequency Modulation: <= +/-75KHz | Audio Isolation:>60dB |
| The system receiving sensitity:-65 to -105 dBm(Adjustable) | Transmitter Operation Voltage:3V DC |
| System Audio Frequency Response:30-18KHz @ +/-3dB | Current Transmitter:Min.150mA(5#AA 1000mha,the battery last for 6 Hrs.) |
| Input Signal Strength Clearance Ratio:>15dB | Receiver Power Supply: 12V DC/1000mA DC |
Main Functions:
1*It is for 4*channels infrared automatic frequency of multi-channels wireless microphone,
2*200 frequency points are optional,
3*Compatibe with UHF frequency band PLL phase locking technology,less noise interference,
4*Increased to 250KHz between each frequency points, success perfect sound performance,
5*1U metal panel configuration 4 channel receiver,
6*LCD display for each
Receiver Parameter:
| Oscillation :PLL Syntheized |
| Carrier Frequency Range: UHF 740MHz-790MHz |
| Frequency Stability:+/-0.001% |
| Max.Eviation Range :+/-50KHz |
| Modulation Mode:Frequency Adjustment FM |
| S/N Ratio:>=110dB |
| T.H.D:<=0.5%@ 1KHz |
| Sensitivity :-95dB |
| Power Supply:DC12-17V |
| Audio Output:The equilibrium output and unbalanced output |
Shoot Machine Parameter:
| Power Supply:DC 3V (1.5V AA*2) |
| Consume an Electricity Quantity:100 mA |
| Carry a frequency:UHF 740MHz-790MHz |
| Frequency Stability:+/-10ppm |
| S/N Ratio:>=110dB |
| F/N Ratio:.80dB |
| Dynamic Range:>=100dB |
| Type:capacitance |
| Polar Psttern:one direction |
| Sensitivity:-47+/-3dB@1KHz |
