Product Description
VW Series
Wireless Conference System

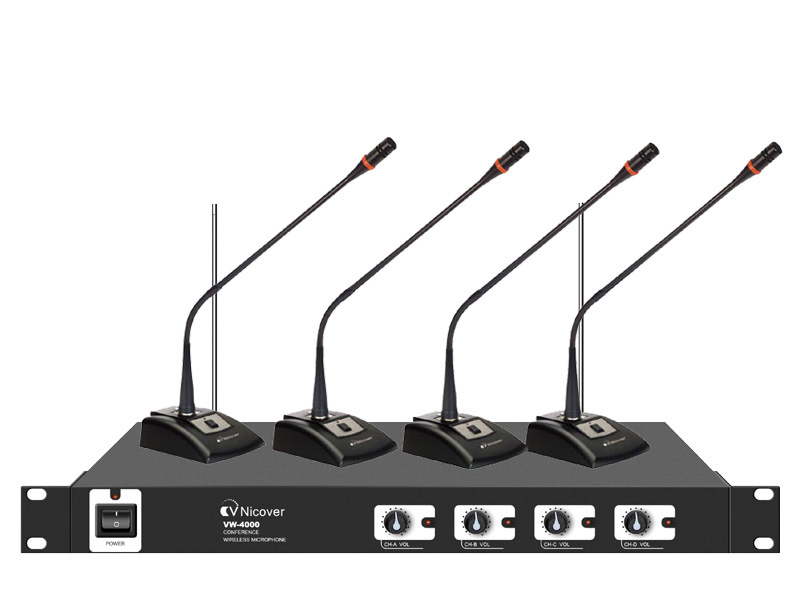

VW4000M One With 4 Microphone
FEATURE:
Uses the quartz oscillating circuit, has the extremely high frequency stable performance. The multistage narrow band high frequency filter, abandon the minute to eliminate the dry sorrow signal. Because the traditional wireless microphone uses the frequency low silent chain, all is analyzes the radio-frequency signal the intensity, therefore they cannot and need the noise the signal differentiates; In the noisy radio frequency environment (for example digital equipment and so on CD/VCD/LD send out massive overtones) under use, when this launcher signal weak or closure, the silent chain possibly can open suddenly, the receiver can send out the intense demolition noise. In order to solve this problem, this corporate design this section specialized level wireless conference microphone. The multistage narrow band high frequency filter, originate one kind of high-frequency launch receive the noise numerical code suppression electric circuit, but it analyzes the signal the quality is not the signal intensity, when transmitting message micro strong, this system noise acoustic level is low, the receiver lets the sound pass, when the transmitting message weak or does not have the signal, this system noise acoustic level is high, suppresses the electric circuit to be able to cause the receiver noise elimination, removed the irritating demolition sound to pass your receiver possibility.
TECHNICAL DATA:
When the microphone open, the sound hair halo is light The microphone has low electricity to warn the indicator lamp
Have independent outputs and mix and output the function, can connect the organ stop or the power amplifier
The power is supplied: Transmitter DC9V receiver AC220V 50Hz
The power consumption of the microphone: 35mA
Frequency of the signal carrier: VHF220-270MHz
Steady degree of frequency: ± 0.002%
SNR: >98dB
It is the hear it interfere line than: >80dB
Dynamic range: >90dB
The wave in harmony is distorted: < 0.5%
Type: Electric capacity type
Polarity mode: Single pointing to
Frequency is responded: 60Hz-16000Hz
The sensitivity of the microphone: -47± 3dB@1KHz
Receive the sensitivity: 50uS( SINAD =20dB)
Frequency export: Independence is 0-± 400mv Mix 0-± 300mv
Nicover Professional Audio Equipment Factory is a high-tech enterprise which engages in scientific research, development, production and marketing. Mainly produce mixer, conference system, conference microphone.
Our products are widely used in all kinds of places of recreation, conference halls, performing spots, recording studio and so on. They are well received among numerous customers.
