| Prod Model: |
retek-054 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Painting: |
Cathode Electrophoretic Painting |
| Inner Cleanness: |
Can Meet The Requirement of R134A and CFC Cooling |
| Colour: |
Black |
| Itme: |
Wire Tube Refrigerator Condenser as Freezer Parts |
| Freezer Patts: |
Freezer Condenser |
| Freezer Wire Tube Condenser: |
Refrigerator Parts |
| Bundy Tube: |
Ø4.76/6/6.35/8/9.52 |
| Wall Thickness: |
0.7mm. |
| Low Carbon Steel Wire: |
Ø1.0-1.6mm |
| Bracket:Steel Plate(SPCC),Thickness: |
0.6-1.5mm. |
| Condensation Forms: |
Water-Cooled |
| Type: |
Steam Condenser |
| Certification: |
UL |
| Condition: |
New |
| Refrigerant: |
R134A |
| Material: |
Bundy Tube |
| Structural Form: |
Wire Tube Refrigerator Condenser as Freezer Parts |
| Heat Transfer Mode: |
Wire Tube Refrigerator Condenser as Freezer Parts |
| Form: |
Wire Tube Refrigerator Condenser as Freezer Parts |
| Application Field: |
Wire Tube Refrigerator Condenser as Freezer Parts |
Product Description

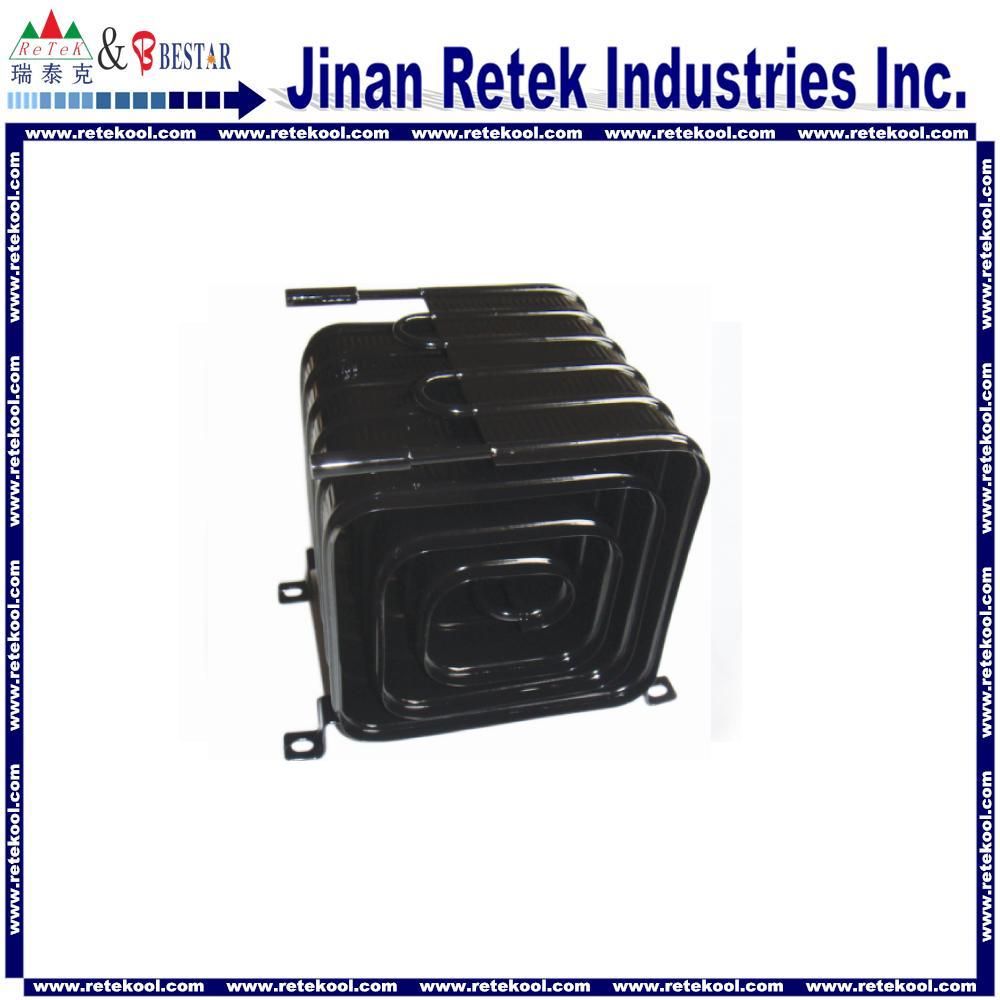

Wire Tube Refrigerator Condenser as Freezer Parts
FREEZER PARTS, FREEZER CONDENSER, FREEZER WIRE TUBE CONDENSER, FREEZER WIRE CONDENSER, REFRIGERATOR CONDENSER, REFRIGERATOR WIRE TUBE CONDENSER, REFRIGERATOR PARTS, REFRIGERATION PARTS, WATER COOLER CONDENSER, CONDENSER, WIRE TUBE CONDENSER
Black Electrophoresis Coating Wire Tube Spiral Refrigerator Condenser
Different sizes and models available. We could produce according to client's drawing or samples
Refrigerator accessory wire tube on condenser:
Specifications:
1) Raw material:
A) Rolling welded steel tube: 4.76, 6.00, 6.35, 8.00, 9.52 x 0.7
B) Low carbon steel wire: 1.4 ~ 1.6mm
C) Bracket: Steel plate SPCC thickness 0.6~2.0
D) Base mounting plate: SPCC thickness 0.6~2.0
2) Technical standards: Can produce according to clients' drawing or samples
3) Performance:
A) Surface with electrophoresis coating to prevent the corrosion
B) Inner cleanness can meet the requirement of R134a and CFC cooling system
C) Can satisfy the cooling capability requirements
Structure:
Bended or spiral type of wire on tube condenser used at the bottom
R134a cooling system tube inside standard:
1) Residual moisture: ≤ 20mg/m²
2) Residual dusty: ≤ 30mg/m²
3) Residual mineral oil: ≤ 7mg/m²
4) Residual chlorine: ≤ 3mg/m²
5) Sealing density: ≥ 1.65MPa
Specification of E-coating:
1) Coating thickness:
A) Thickness of anodic electrophoresis coating ≥ 12μ M
B) Thickness of cathodic electrophoresis coating ≥ 20μ M
2) Hardness of coating ≥ 2H
3) Impact of coating: 50cm. Kg/cm impact, no crack
4) Adhesion of coating: ≥ 2 grade
5) Flexibility of coating: Around R=3D bend 180 degrees, no crack or no fall off
6) Corrosion resistant
A) Cathodic electrophoresis coating ≥ 200hrs
B) Cathodic electrophoresis coating ( add power painting )≥ 300hr
| PRODUCT NAME: | KRCR-06 Steel Wire Tube Condenser for Show Case |
| APPLICATION: | REFRIGERATOR,FREEZER,SHOWCASE,WATER COOLER |
| REFRIGENT: | R134a |
MAIN MATERIAL:
| 1,BUNDY TUBE:Ø4.76/6/6.35/8/9.52,WALL THICKNESS 0.7MM.
2,LOW CARBON STEEL WIRE Ø1.0-1.6MM.
3,BRACKET:STEEL PLATE(SPCC),THICKNESS 0.6-1.5MM.
4,STEEL PLATE:SPCC THICKNESS 0.3-0.4MM |
| STRUCTURE: | 1,FLAT TYPE OF WIRE ON TUBE CONDENSER USED AT THE BACK.
2,BENDED OR SPIRAL TYPE OF WIRE ON TUBE CONDENSER USED AT THE BOTTOM.
3,WRAPPED TYPE OF TUBE EMBED ON PLATE. |
| MAIN PRODUCTION PROCESS: | TUBE BENDING->WELDING->FIX THE BRACKET->WELD THE SUCTION TUBE->
LEAKAGE TEST->COATING->
FOLDING OR BENDING SHAPING->INSPECTION->PAKAGE. |
PERFORMANCE:
| 1,SUEFACE WITH ELECTROPHORESIS COATING TO PREVENT THE CORROSION.
2,INNER CLEANESS CAN MEET THE REQUIREMENT OF CFC & R134A COOLING SYSTEM
3,CAB SATIFY DIFFERENT COOLING CAPABILITY REQUIREMENTS. |
