| Prod Model: |
KC-18H |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Compressor: |
Famous Brand, Hitachi |
| Refrigerant: |
R410A |
| Certificates: |
ETL, RoHS, ISO9001, ISO14001 Standard |
| Function: |
Low Voltage Startup, Auto-Protection, Auto Restart |
| Net Dimensions: |
660X680X430mm |
| Type: |

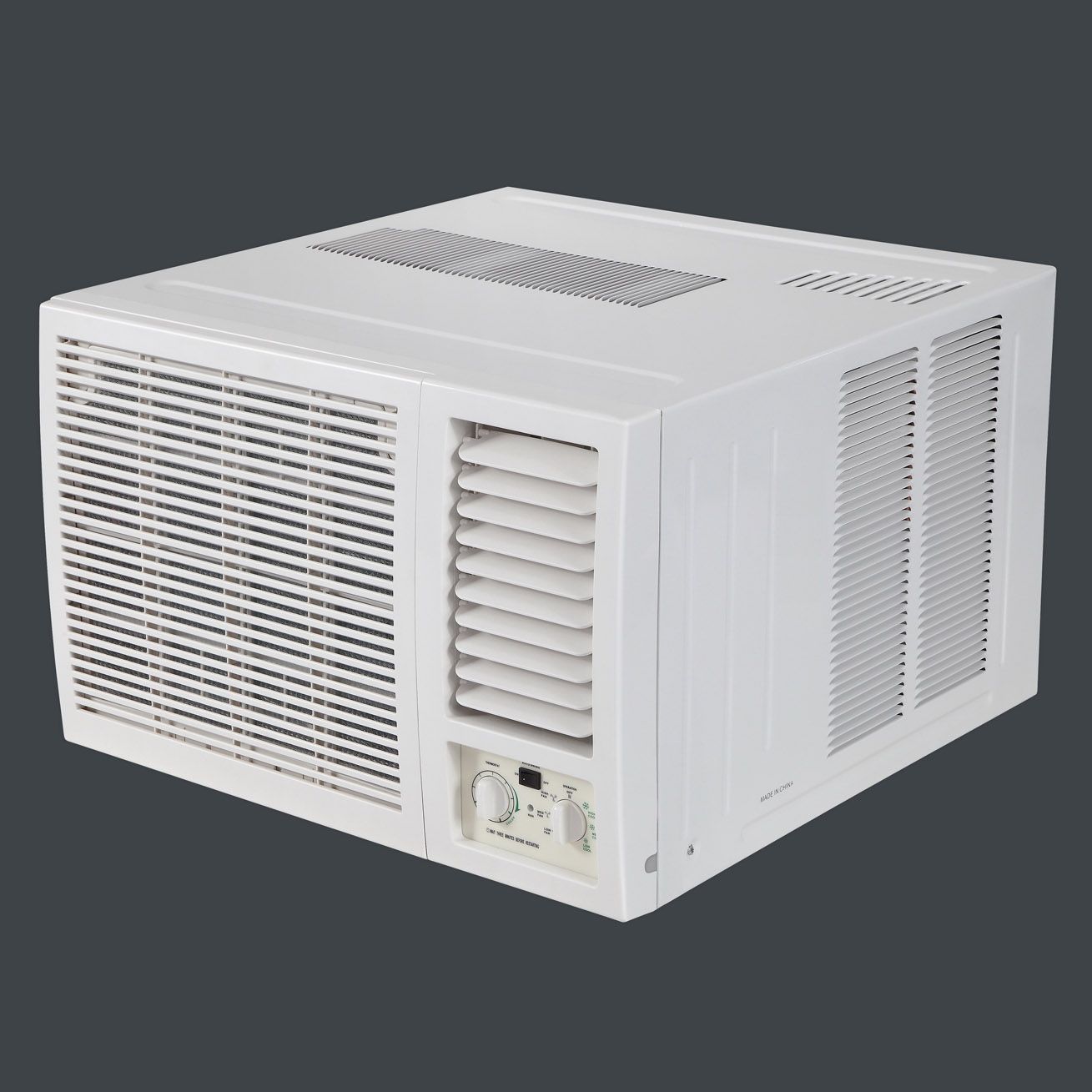

Window Mounted Air Conditioners |
| Capacity: |
18000-24000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
24-35dB |
| Certification: |
UL |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Features:
1: High efficiency,low noise air guide design
2: World famouns brand rotary type compressor;
3: High Efficient Internal Thread Copper pipe for condensor and evaporator;
4. Self-evaprative system for condensing water
5: 3 fan speeds
6.High,Mid,Low to adjust cooling capacity
7: Low Voltage Startup, Auto-protection, Auto Restart;
8: Refrigerant: R410A
9: With ETL, RoHS, ISO9001, ISO14001 standard;
Technical Specifications |
|
|
|
|
Model No. |
KC-18C |
KC-18H |
KC-24C |
KC-24H |
Type |
Cooling only |
Cooling/ heating |
Cooling only |
Cooling/ heating |
Control type |
Manual Control |
Rated cooling capacity |
Btu/h |
18000 |
18000 |
21500 |
21500 |
W |
5200 |
5200 |
6200 |
6200 |
Rated heating capacity |
Btu/h |
N.A |
6900 |
N.A |
6900 |
W |
N.A |
2000 |
N.A |
2000 |
EER/COP |
Btu/h.w |
13.00 |
13.00/- |
13.00 |
13.00/- |
W/W |
3.81 |
3.81/- |
3.81 |
3.80/- |
Moisture removal |
Liters/h |
1.9 |
1.9 |
2.1 |
2.1 |
Pressure |
High(DP) |
MPa |
4.5 |
4.5 |
4.5 |
4.5 |
Low(SP) |
MPa |
1.5 |
1.5 |
1.5 |
1.5 |
Indoor noise level |
dB(A) |
55 |
55 |
56 |
56 |
Outdoor noise level |
dB(A) |
61 |
61 |
63 |
63 |
Electrical Data |
Power supply |
V~ ,Hz |
|
Power input |
Cooling |
W |
1730 |
1730 |
2070 |
2070 |
Heating |
W |
N.A |
2200 |
N.A |
2200 |
Rated Current |
Cooling |
A |
16.0 |
16.0 |
18.9 |
19.0 |
Heating |
A |
N.A |
19.0 |
N.A |
19.0 |
Indoor air volume(Cooling/Heating) |
m3/h |
750 |
750/750 |
750 |
750/750 |
Others |
Suitable area |
m2 |
30~50 |
30~50 |
50~70 |
50~70 |
Net dimensions (W x Dx H) |
660x680x430 |
660x680x430 |
660x680x430 |
660x680x430 |
Net weight |
50 |
51 |
51 |
52 |
Packing dimensions (W x Dx H) |
740x795x468 |
740x795x468 |
740x795x468 |
740x795x468 |
Gross weight |
54 |
55 |
55 |
56 |
Stuffing qty |
40'HQ |
sets |
220 |
220 |
220 |
220 |
