| Prod Model: |
Apollo 25 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
RoHS |
| Pixel Pitch: |
25mm |
| Pixel Density: |
1600 Pixels/M2 |
Product Description

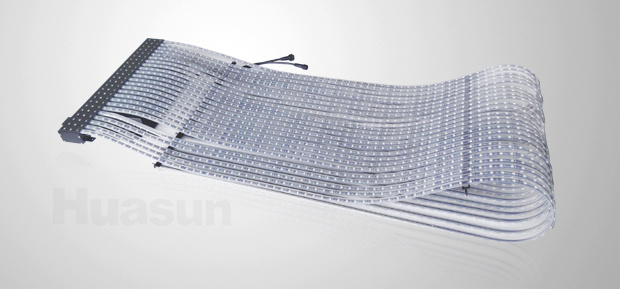

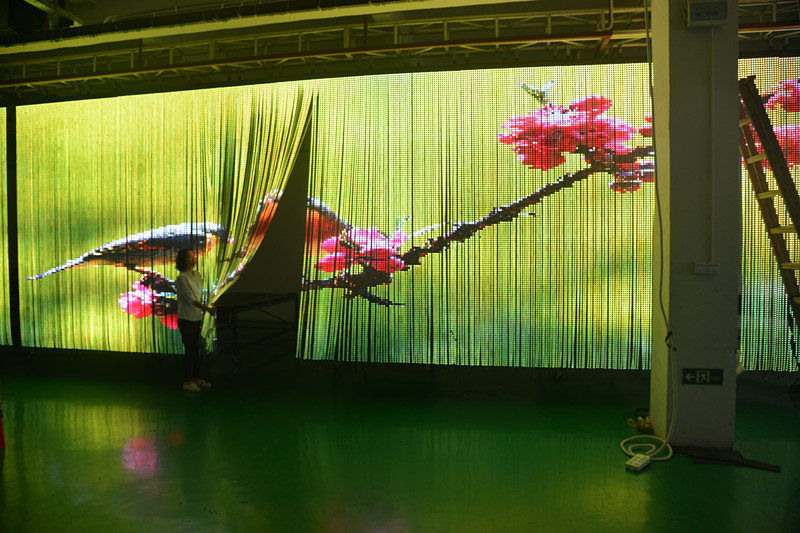

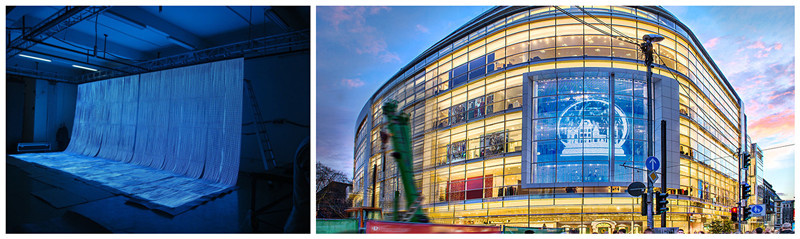

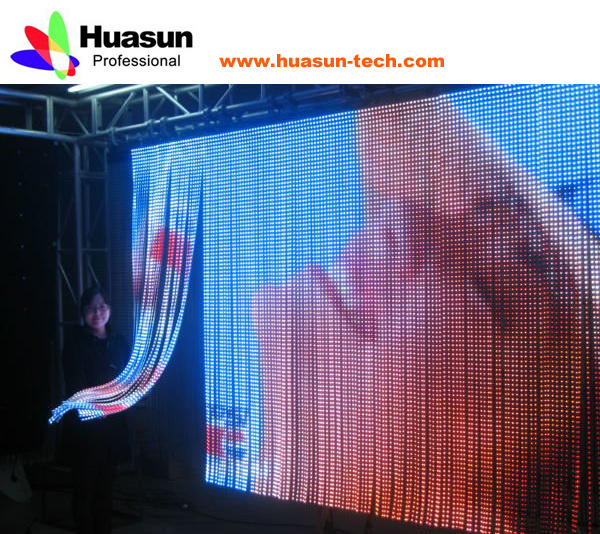

Apollo Series IntroductionApollo series flexible LED displays are composed of soft LED strips which have FPC and silicone rubber coating, so it is very soft and flexible and higher transparent. It looks like a crystal curtain to bring more creative application. It is applied in fashion shows, trade shows, theme parks, music concerts, visual stage, shopping mall advertising, video wall, indoor decoration and more. Transparent body: Transparent LED strips give more amazing screenLight weight: Ultra-slim and ultra-lightweight bring more design opportunities and save the shipping costAmazing flexibility: Very soft and can be folded up, can be designed many different shapes.High brightness:
High-quality RGB 3-IN-1 LED, brings bright, high-impact, full-color video images.
1) Made up of High quality rubber material. Transparent, flexible.
Ultra light & think like paper;
2) Easy to use, the controller & signal cable all hidden on the tope together with the control box. So look front the LED screen body, it is very clean and tidy.
3) The screen come out with the power plug. Plug to the power source, ready to use.
4) Resolution is customized.
5) Size is customized.
Specifications: Model No. Apollo 25
Pixel pitch 25mm
Module resolution 24X80
Density 1600 pixels/
Transparency 45%
Pixel configuration RGB 3-in-1 SMD LED
Brightness(White) 2700 nits
Bit depth per color 16 bit
Bit depth per pixel 48 bit
Visual angle Horizontal:120; Vertical:120
Date refresh rate ≥1000Hz
Drive mode Constant current
Display mode 1280X1024
Input signal RF,S-VIDEO,RGBHV,YUV,YC&COMPOSITION,etc
Power supply 90~132VAC/180~264VAC 50/60Hz
Max.Power consumption ≤256W/
Average.Power consumption ≤105W/
Body material Silicome Rubber,Aluminum
Ingress protection IP44
Ambient temperature -20~+50 degree
Relative humidity 10%~90%
Weight 3.8kg/
Module size Width:500mm Height:2000mm Thinkness:80mm
Size can be customized
Installation Hang
Control system Sending card HVT09
External Sending card HC103D
