| Prod Model: |
LLT-JV3307 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Frequency: |
800MHz/1GHz |
| Hvga: |
800X480 |
| OS: |
Wince 6.0 |
| Mirror Link: |
Two-Way Touch |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Brand: |
Lsailt |
Product Description

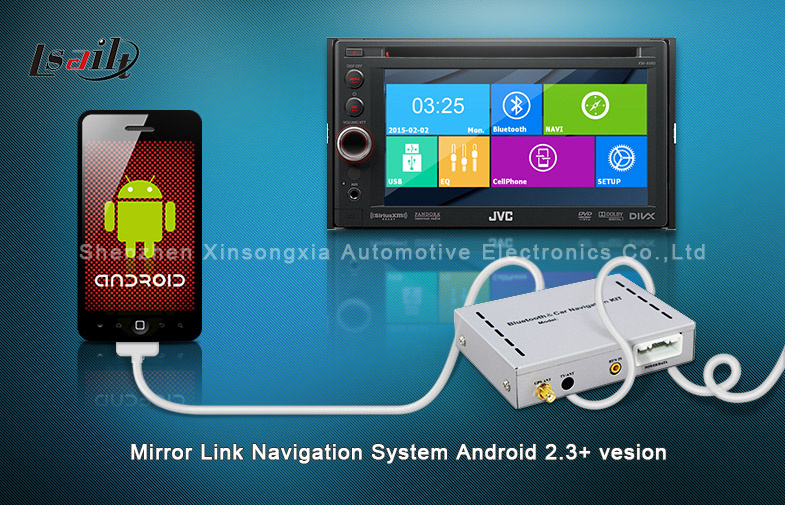

Mirror Link Navigation for SONY with Mute Dedicated Line / Touch Function
Trade Terms
Min. Order | 1Set | Unit Price | Negotiation |
| Trade Terms | FOB | Payment Terms | T/T, western Union, PayPal |
| Supply Ability: | 3,000pcs per month | Delivery Time: | 5 working days after received your payment |
| Packaging Details: | Standard export carton | HTTP | www.lsailt.com |
| SIZE | 118*84*26 (MM) | GR. WT | 0.8KG/SET |
Custom properties
| CPU | 1GHZ | RAM | 256M |
| Working voltage | 9-12V | OS | WINCE 6.0 |
| HVGA | 800X480 | MAP | IGO/PAPAGO |
| Mirror Link | Two-way touch | Type | Through the cable |
Add Advantages:
1) Nondestructive installation design, which does not damage to the wires of original car; special interface cable, plug-up installation without wire cut;
2) Choose installation functions freely (Bluetooth optional);
3) Technology is reliable, take the original agreement;
4) After upgrading, it still remains all the functions of the original head unit, even if navigation goes wrong, which does not affect the function of the original car;
5) After-sales service is convenient, replace the adapter module directly, compare with special machine, it's much simpler, less risk, more safe and reliable;
6) Choose beautiful interface as you like;
7) Achieve handwritten navigation, and control the navigation by touching it. Compare with the original navigation module, it's more convenient and flexible.
Product Description:
1. Adopt high performance RAM11, car regular hard acceleration processorA6II,main frequency is 1GHZ;
2. With high capacity memory for DDR3 256M;
3. OS:WINCE6.0;
4. Support many kinds of resolutions,default 800*480;
5. Support mobile mirror link;
6. Support many kinds of navigation software. Support 3D live navigation With Navigation voice mixing function, Support runs multiple maps; the highest support 32G;
7. Support touch screen operation;
8. Support upgrade OS by TF card and U Flash Disk ;
9. Support USB 2.0 external U Flash Disk. Support external Hard Disk;
10. Support many kinds of video formats(1080P):AVI(H.264, DIVX, DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264);
11. Supports many audio formats :WAVE,AIFF,AU,MP3,MIDI,WMA,RealAudio,VQF,OggVorbis,AAC,APE;
12. Equipment with Bluetooth function, providing a telephone connection, Bluetooth music player and other functions;
13. Design EQ sound choice function, achieve high quality music effect.
Product Application:
1.Vehicle: Car, bus, truck;
2. Brands: Toyota, Honda, Nissan, GM, Buick, Kia, HYUNDAI etc.
3. Super auto supplies supermarket,car audio modification store,automobile service factory
4. Apply to the car DVD host:PIONEER/KENWOOD/SONY/JVC/ALPINE/PHILIPS etc.
Competitive advantages:
1. Easy installation. Nondestructive installation;
2. Random installation ,without secondary installation;
3. Simple functions, strong stability, which more useful,
4. Convenient to upgrade map.
5. Design EQ sound choice function, achieve high quality music effect.
| Product accessories |
| Mainframe | 1(standard configuration) |
| Dedicated wire | 1(standard configuration) |
| Antenna | 1(standard configuration) |
| USB cable | 1(standard configuration) |
| Specification | 1(standard configuration) |
| certification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |
| Microphone | 1(standard configuration) |
| SPK | 1(optional configuration) |
| Map card | 1(optional configuration) |
| Mute dedicated line | 1(optional configuration) |
| Product parameter |
| CPU | SiRF Atlas VI |
| Main frequency | 800MHZ/1GHZ |
| RAM | 256M DDR3 |
| Flash memory | 256Mcan expand to 8GB |
| Navigation storage | SD/TF maximum 32GB |
| HVGA | 800X480 or 480X234(RGB) |
| Working voltage | DC 9-16V |
| Dual Video Display | CVBS,Y/C,YPbPr,RGB |
| Video out voltage | 1.0Vpp/75Ω |
| Operating temperature | -40ºCto +85ºC |
| Storage temperature | -40ºC to +100ºC |
| USB | mouse,mobile mirror link,AV display,maximum 32G |
| Sound out | Dual channel CD stereo sound |
| Audio playing | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| VIDEO playing | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM ,MKV,DIVX, AVI,ASF,WMV,FLV,TS,WEBM. |
| Format of pictures | JPEG,JPG,GIF,PNG,BMP,WBMP. |
| MAP | IGO/PAPAGO/ Careland/DaodaoTong |
| Navigation sound | Voice sent back/ sound mixing e |
| Sound Control | More EQ simulate control |
| Balancing control |
| Acoustic control |
| Spectrum collection and variety shows |
| Time set | clock,Auto-Sync through GPS |
| BT | BT 4.0 CLASS 2 mode |
| Track sensitivity | -161dBm |
| Positioning accuracy | 10m,2D RMS,5m,2D RMS,WAAS enable |
| GPS Antenna type | External active ceramic antenna |
For models: 2015 Models:
AVH-X1750DVD, AVH-X2750BT, AVH-XL4750DVD, AVH-XL4750DVD, AVH-XL5750BT, AVH-X5750, AVH-X6750DVD, AVH-X7750BT, AVH-X8750BT
2014 Models:
AVH-X4000NEX, AVH-X5600BHS, AVH-X4600BT, AVH-X3600BHS, AVH-X2600BT, AVH-X1550BHS, AVH-X2550BT, AVH-X2550DVD, AVH-X4550BT,
AVH-X5550BT, AVH-X6550, AVH-X7550, AVH-X8550, AVH-X4650, AVH-X5650BT, AVH-X6650BT, AVH-X7650BT, AVH-X8650BT,
2013 Models:
AVH-X8500BHS, AVH-X7500BT, AVH-X6500DVD, AVH-X5500BHS, AVH-X4500BT, AVH-X3500BHS, AVH-X2500BT, AVH-X1500DVD etc. all machine with NAVI interface. (800X480))
