| Prod Model: |
OX-ET 8204 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation System: |
Linux |
| Compression: |
H.264 |
| Signal System: |
PAL:25 Fps, NTSC:30 Fps |
| Optional Function: |
G-Sensor ;WiFi;3G-WCDMA,Cdwma,Cdwma2000,TD-SCDMA |
| Extended Port: |
Rj45X1;RS232X2;RS485X2 |
| Warranty: |
One Year |
| Certificator: |
CE; RoHS; FCC |
| Type: |
GPS Tracker |
| Use: |
Automotive |
Product Description

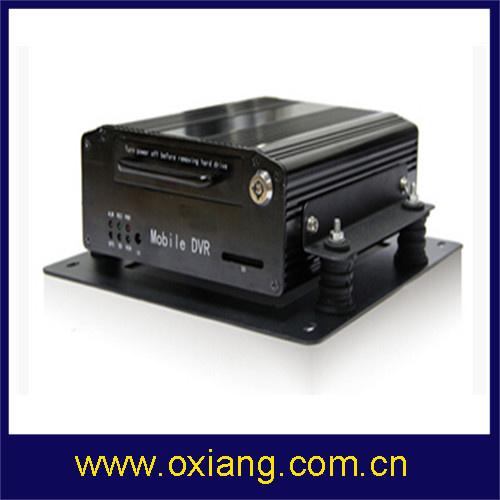

Newest 3G/WiFi Mobile DVR GPS Tracking System
Features:
1. Management for 500 vehicles
2. Real-time video and audio monitoring
3. Real-time vehicle status with complete information: Online number, speed, GPS Tracking,
Temperature, brakes, backing up, turnning and alarming etc
4. Remote control to gas-off/power off to vehicles
5. Video search, download
6. Picture capture
7. Intercom, Broadcasting, Text To Speech
8. PTZ Control
9. History Tracking
10. Alarm linkage(Speeding alarm, external emergency alarm, hard disk error alarm, video lost alarm, electronic map markers)
11. Electronic security fence
12. Google Map/Mapinfo
13. Multiple access, permissions setting
| Technical Specifications: |
| Operation System | Linux |
| Compression | H.264 |
| Signal System | PAL:25 fps, NTSC:30 fps |
| Language | Simplified Chinese/Traditional Chinese/English optional, OSD Menu |
| Display Frame Rate | D1/HD1/CIF Selectable. 4CIF@25fps,4HD1@25fps,2D1@25fps+25fps |
| Video Input/ Output | 4-CH Input/1CH Output |
| Audio Input/Output | 4-CH Input/1CH Output |
| Alarm Input/Output | 4 alarm input/2Output |
| Recording | Manual/ Schedule/ Motion Detection |
| GPS Vehicle tracking, Speed detection, Synch time |
| Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss |
| Playing Mode | Support 1 channel or synchronous 4 channels By PC |
| Searching Mode | By Time/ By Date/ By Event |
| Storage | Support single/Dual SD card selectable, 128GB Total/Max 64GB for Each |
Built-in Model
(Optional) | G-SENSOR |
| GPS |
| 3G( WCDMA/CDWMA2000/TD-SCDMA) |
| WIFI 802.11b/g |
| Remote Control | IR Remote Control /Control Panel |
| Software Upgrade | SD Card |
| Power Input/Output | 8~36V Input,12V Output |
Camera's remote
power supply | Supply Remote Power for 4 channel cameras DC12V@2A |
| Extended Port | RJ45X1;RS232X2;RS485X2 |
| Working Temperature | -30degree~+70 degree |
| Relatively Humidity 20% - 95% |
| Vibration Resistance < 2 Grms |
| Shock Resistance < 1200 Grms |
| Vehicle key signal | ≤4V (OFF),≥5V(ON) |
| Power Supply | DC8V~36V,6W |
| 8~36V Input, DC12V@2A Output for 4CH Cameras |
| Meas(L*W*H) | 22x15x7.6 cm |
| Applications |
|
Ouxiang International Limited is a Chinese professional Security and Electronic products manufacturer. Our main focus on SBalance Scooter, Sport Camera, GPS tracker, Police DVR, WiFi PIR light Camera, etc. Since its establishment in 1998, has been the most sincere service and responsibility to deal with each of our agents and end customers. As an "ISO 9001 standards, CE, RoHS, 3C-certified manufacturer, we understand that there are no shortcuts to produce good quality products. Only doing what they do every step of the testing process, and in order to make consumers be assured that every one products. Ouxiang mind of every member of this idea, continuous effort to continuously design, develop new products, the company has become stronger and more competitive.
Your satisfaction is our glory. This is the struggle of every member of the ouxiang international limited
Welcome to visit our company and our factory!
