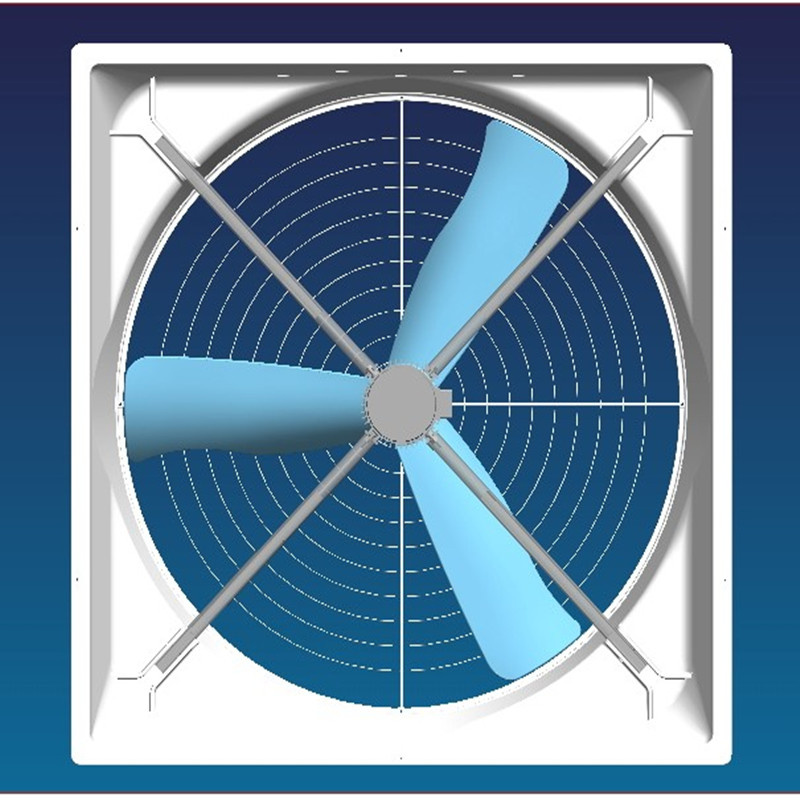

White SMC Cone Fan

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	58 Inch
Type:	Ventilation Fan
Installation:	Wall Mounted
Certification:	CE
Remote Control:	With Remote Control
Timer:	Without Timer
Application:	Industrial
Power Supply:	Electric
Material:	Fiberglass
Power:	0.55kw
Speed:	1&2 Speed

Product Description

Applications:

1. Industrial fields: Textile, socks/clothes making, glass, molding, rubber, coating, silk-screen printing, toy, electronics, home appliances, shoe making, printing, food stuff, processing, dyeing, laundry and other workshops with high temperature.

2. Civil fields: Net bars, stores, supermarkets, mess hall, food markets, waiting-rooms and recreation places and other occasions with air-conditioning.

3. Agricultural &horticulture fields: Large farms, greenhouse and livestock farms, etc.

1. High performance
2. Innovative design
3. Corrosion proof
4. Explosion proof

General Information:
1. Availbale in 58" & 42" &30 "sizes.
2. The new 58" high performance SMC cone fan are desiged for use in industrial, poulty, dairy, swine and greenhouse applicantion.
3. The cone fan eill wirk equally well in either tunnel or cross ventillaed buildings.
4. Super strong heavy duty center post design
5. The cone fan features a traditional inside shutter design
6. Special order motors available-call for detail

Features:
1. The patented design provides excellent performance without a cone.
2. Thick and corrosion resistance SMC housing with limited lifetime warranty.
3. Rust-free, corrosion-free, SMC housing with onterior glossy for high output performance and low maintenance
4. Every feature of cone fan line is designed to maximize performance and durability 6 blanced SMC paddle blades
5. Direct drive fan requiring no belts, no bearings to grease with high efficiency with no drive loss
6. Totally enclosed, maintenance free, high efficiency direct drive motors
7. Uniques shutter design lower resistance with preventing back drafts
8. Unique motor mount design allows you to quickly and easily remove all interior fan conmponts from inside of the building
9. Self draining, sloped housing is quick and easy to clean reducing maintenance costs
10. PVC coated outside guard
11. Special order colours housing available
12. Shipped unassembled to save lots of freight

Affordable Benefits
1. Motor is variable speede designed to turn a special impeller to achieve optimum efficiency.
2. Motor is totally enclosed with an air-over design with diecast aluminium housing. Single phase fans have an automatic thermal 3. Protection and heat resistance to 311 degrees fahrenheit (115° C)

Multiple Option
Oasis Fan Systems offers a wide selection of echaust fans for tunel ventilation.

Fiberglass housing or SMC fiberglass housing
Three, six-wing or seven blades
Single or Two-speed motors
Galvanized or Stainless Materials
Single or Three-Phase Power
Multiple Horsepowers
