| Prod Model: |
FPV-718W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Backlight: |
LED |
| Contrast Ratio: |
700:1 |
| Brightness: |
500CD/M2 |
| Viewing Angle: |
75° /75°(L/R), 70° /75°(U/D) |
| Input Signal: |
Mini HDMI,3.5mmav,RF |
| Output Signal: |
AV,3.5mm Earphone Jack |
| Input Voltage: |
DC9-18V |
| Power Consumption: |
≤ 13W |
| Built In Battery: |
7.4V/2200mA(2 Hours) |
| Unit Size: |
190X 134X 18mm |
| Application: |
Surveillance |
| Aspect Ratio: |
16:9 |
| Feature: |
No Blue Screen ,32 CH AV Receiver |
| Type: |
TFT |
| Widescreen: |
Widescreen |
| Response Time: |
16ms |
| 3D: |
Not 3D |
| Screen Size: |
7" |
| Optimum Resolution: |
1024X600 |
| Interface Type: |
HDMI,AV |
Product Description

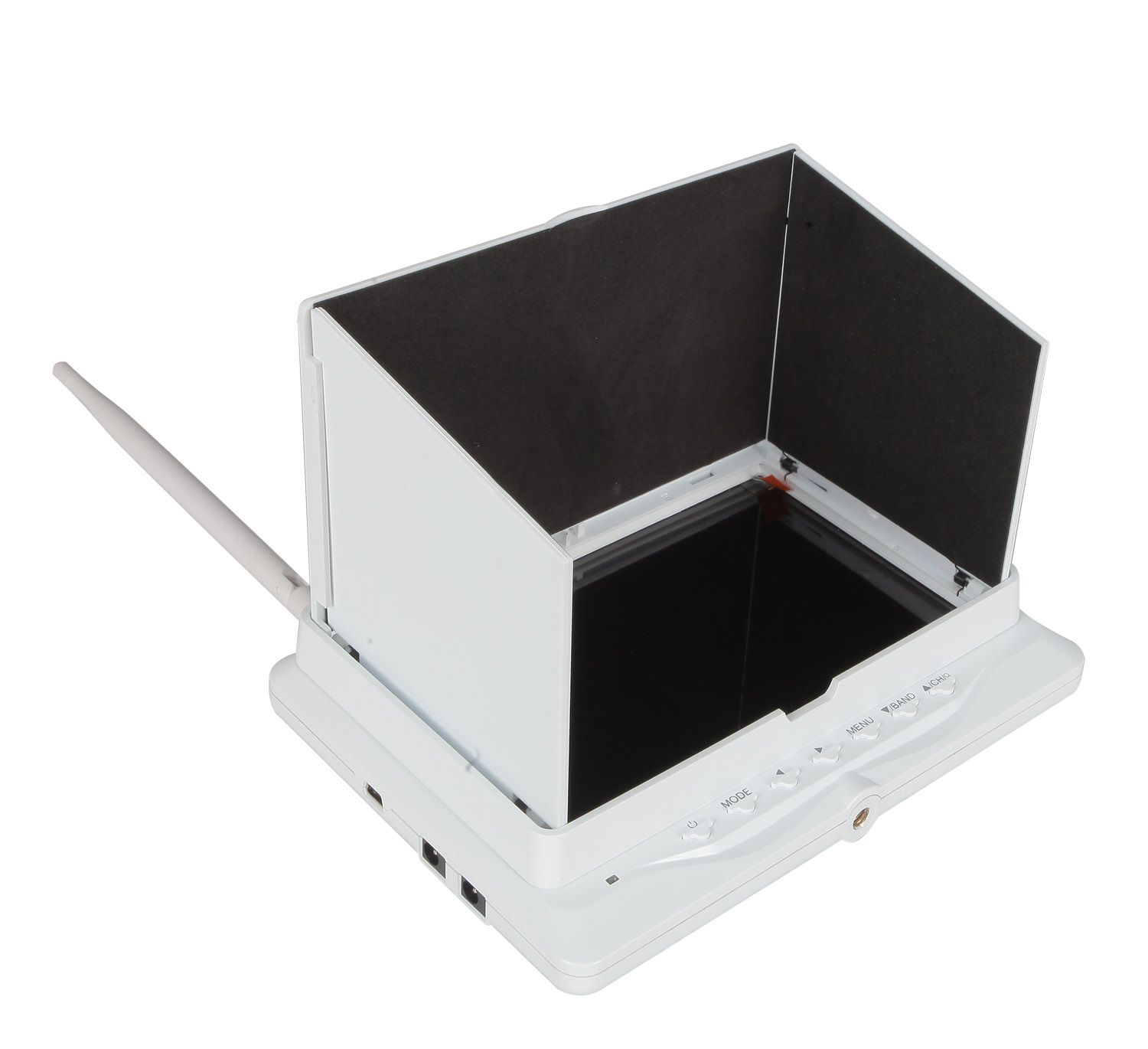

Super Slim High Brightness 16: 9 7 Inch 5.8G FPV DVR Monitor built in Battery
Applications:
Designed specially for FPV and outdoor operation purpose. FPV-718 also has a very important feature for FPV users, it dosen't have "blue screen" when the signal gets weak. When VTX is not connected, it just show static, never turn blue or black. It is ideal monitors for Aerial photograpy.
1. Wireless FPV
2. Baby Monitor
3. Wireless Visual Reversing Camera Transmission
4. DVD/DVB AV Wireless Transfer
5. Engineering Construction Monitor
6. Wireless Video Leisure Goods
7. Wireless Camera Security System
8. Wireless Doorbell
Photography Functions:
1. Peaking Focus Assist
2. Check Field(Red, Green, Blue, Mono)
3. Camera 5D II Mode
4. Screen Marker
5. Centre Marker
6.4: 3&16: 9 image adjustable
7. Full Screen Display in mode of Monitoring & Recording
Advanced Features:
1. Super Light and Slim 18mm Width
2. Built-in integrated lipo battery
3. Channel Auto searching, selection via button
4. Best Channel Receiption via Antenna Auto-switching
5. 5.8GHz, 32 Channels Receiver
6. Video outputs and DC output to connect and power other equipment
7. High resolution 1024x600, Bright 500cd/m²
8. No blue screen
9. High Sensitivity: -90dBM
10. Compable with all 5.8GHz transmitters 32ch, such as Fatshark, Boscam
11. Not affected by 2.4ghz radio controller
| Model Number | FPV-718 (FPV-718B for black color, FPV-781W for white color ) |
| Screen Size | 7 inch with digital panel |
| Resolution | 1024x600 |
| Backlight | LED |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 700:1 |
| Brightness | 500cd/m 2 |
| Viewing Angle | 75° /75°(L/R), 70° /75°(U/D) |
| Input Signals | Mini HDMI,3.5mmAV,RF |
| Output Signals | AV,3.5mm earphone jack |
| Input Voltage | DC9-18V |
| Power Consumption | ≤ 13W |
| Built In Battery | 7.4V/2200mA(2 hours) |
| Working Temperature | -20 to 50 °c |
| Storage Temperature | -30 to 65°c |
| Install Way | including a stardard 1/4-20 tripod mounting holes at the bottom for simple use for your ground station |
| Unit Size | 190x 134x 18mm |
| Unit Weight | 440g |
| Standard Accessories | Plastic sun shade x1, Antenna x2, Power Adaptor x1, Li-Battery x1, Instructional Manual x1 |
| PCS/CTN | 10PCS/CTN |
|
|
