| Prod Model: |
HF UHF Wristband |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Wristband: |
Silicone,Soft Plastic |
| Feature: |
Eco-Friendly, RFID, Mosquito Repellent, with USB |
| Logo Type: |
Silkscreen |
| Style: |
Sport |
| Color: |
Optical Variable |
| Application: |
Water Park/SPA ID Control, |
| Advantage: |
Waterproof,High Temperature Resistant |
Product Description

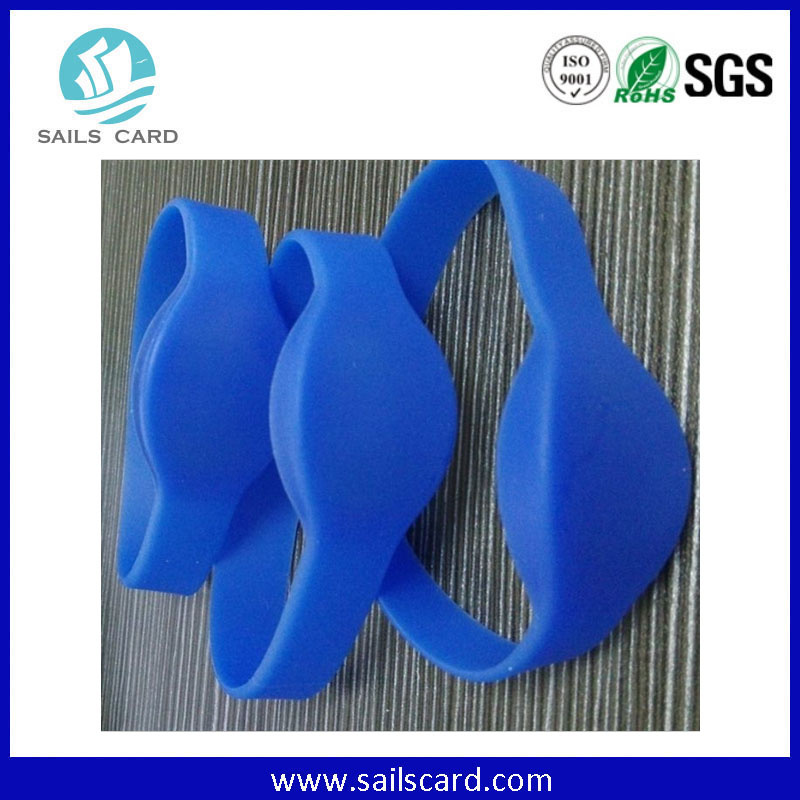

Waterproof silicone HF UHF RFID wristbands/BraceletKey features:
Excellent stability, resistant-heat, with silicone material.
Excellent waterproof can be used directly in water.
Circulation for many times after sterilization
Bulk cheap silicone wristbands Chip optional:
IC available at 125KHz nominal: | TK4100, EM4100, EM4102, EM4450,Hiatg1, Hitag2, HitagS256, HitagS2048, Atmel temic 5567.. |
| IC available at 13.56MHz nominal | Ntag203, S50, S70, Desfire,Ultralight, Icode1, Icode Sli , Legic mim256, JWL872, TI256,Fudan F08 chip |
Bulk cheap silicone wristbands Specification:
Material: | 100% ISO approval silicone |
| Color: | Red, Black, Yellow,Bule |
| Logo: | Screen printed, embossed,embossed.Customer's logo and design is welcome! |
| Size: | 65 or 74mm diameter as standard,other size is customized |
| OEM: | Can be customized with your logo |
| Frequency: | 13.56mhz |
| MOQ: | 200pcs per color |
| Packing detail: | 100pcs/bag,1000pcs/ctn. |
| Sample time: | 2~7 working days |
Mifare Ultralight RFID Bracelet
NXP has developed the MIFARE MF01CU1 to be used with Proximity Coupling Devices according to ISO14443A, it can act as single trip tickets in public transportation networks, loyalty cards or day passes for events. They are the ideal replacement for conventional ticketing solutions such as paper tickets, magnetic stripe tickets or coins.
Mifare ultralight can be easily be integrated into existing schemes and even standard paper ticket vending equipment can be upgraded. In addition this solution for low cost tickets can help operators to reduce fraud and the circulation of cash within the system.
Key applications for RFID Bracelet
Limited-use tickets in public transport (e.g.: single trip tickets, multiple trip tickets, tourist weekend passes)
Event ticketing (stadiums, exhibitions, leisure parks, etc.)
MIFARE RF Interface (ISO/IEC 14443 A)
Contactless transmission of data and supply energy (no battery needed)
Operating distance: Up to 100 mm (depending on antenna geometry)
Operating frequency: 13.56 MHz
Data transfer: 106 kbit/s
Data integrity: 16 Bit CRC, parity, bit coding, bit counting
Anticollision
7 byte serial number (cascade level 2 according to ISO/IEC14443-3)
Typical ticketing transaction: < 35 ms
Fast counter transaction: < 10 ms
EEPROM
512 bit, organised in 16 pages with 4 byte each
Field programmable read-only locking function per page
32 bit user definable One Time Programmable (OTP) area
384 bit user r/w area (12 pages)
Data retention of 5 years
Write endurance 10000 cycles
RFID Bracelet
Item |
rfid bracelet ,rfid wristbands, nfc bracelet |
Material |
ECO-material Silicone , Silica gel , Waterproof |
Dimension |
Flexible watch style : 248MM(L)*16MM(W)*1.5MM(H), 25MM round Dial. 7 holes and 3 buttons, length can be arbitrary regulation
Classic closed loops : 74mm diameter *16mm width,65mm diameter *14mm width.
60mm*14width ,50mm diameter *14mm width ,45mm diameter *14mm width |
Color |
Red, Blue, Black, Purple, Orange, Yellow, or in customized color (quantity over 5000pcs).
|
IC style |
- LF(125KHz):TK4100, EM4200, T5577 etc.
-HF(13.56MHz):FM11RF08, Mifare classic S50, Mifare classic S70, Mifare Ultralight,
ultralight-C, NTAG203 ,I-CODE SIL, TI2048 etc.
-UHF(860MHz-960MHz):UCODE GEN2, ALIEN H3, IMPINJ Monza etc. |
Available craft |
single color logo silk printing, laser numbering or UID number, encoding etc
|
Working temperature |
-25 degree to +50 degree |
Reading & Writing distance |
-2CM-5CM for LF & HF / 1m-6M (UHF), (Relative with reader.)
|
Application |
Widely using in hospital for mother and baby care;
Swimming poor;
Refrigeration house, and fieldwork and so on humid working environment a
nd so on |
Package |
Natural package, 100pcs/ OPP bag, 10bags/CNT, I.E 1000pcs/CNT.
Size of carton:30*22.5*20.5CM or depends
G.N: 12.5KG/CNT |
Other key words and related products |
rfid bracelet , nfc wristbands ,rfid wristbands,, silicone rfid wristbands |
Customizations for RFID Bracelet
Print: offset, silkscreen, thermal printing
Serial number printing: thermal or inkjet format
Signature panel, Scratch off, Hologram, Laser film
Magnetic stripe: LoCo 300 Oe, HiCo 2750 Oe or 4000 Oe
Embossing, Hot-stamping, Hole punching
Encoding, UV printing, Color photo printing
Typical application for RFID Bracelet
Public Transport
Access Control
Logistics, hotel management, transportation
Supermarket VIP card
Social insurance card
Leisure card,Toll Card, Student/Campus Card/School Card, Identity Card, etc
