| Prod Model: |
P8 outdoor display |
| Markets: |
Eastern Europe,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320mm*160mm / 256mm*128mm |
| Cabinet Size: |
640mmx 640mm |
| Pixel Configuration: |
1r1g1b 3 in 1 |
| Package Mode: |
SMD2121 |
| Module Weight: |
0.55kg |
| Control Mode: |
Synchronization with PC |
| Certificates: |
CE/ RoHS /ISO / CCC / FCC |
| Delivery Time: |
7-10working Days |
| Warranty: |
2 Years |
| Other: |
Low Energy Consumption ,Long Lifespan , Less Maint |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC,ISO9001,EMC,IP65 |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625dots/M2 |
Product Description

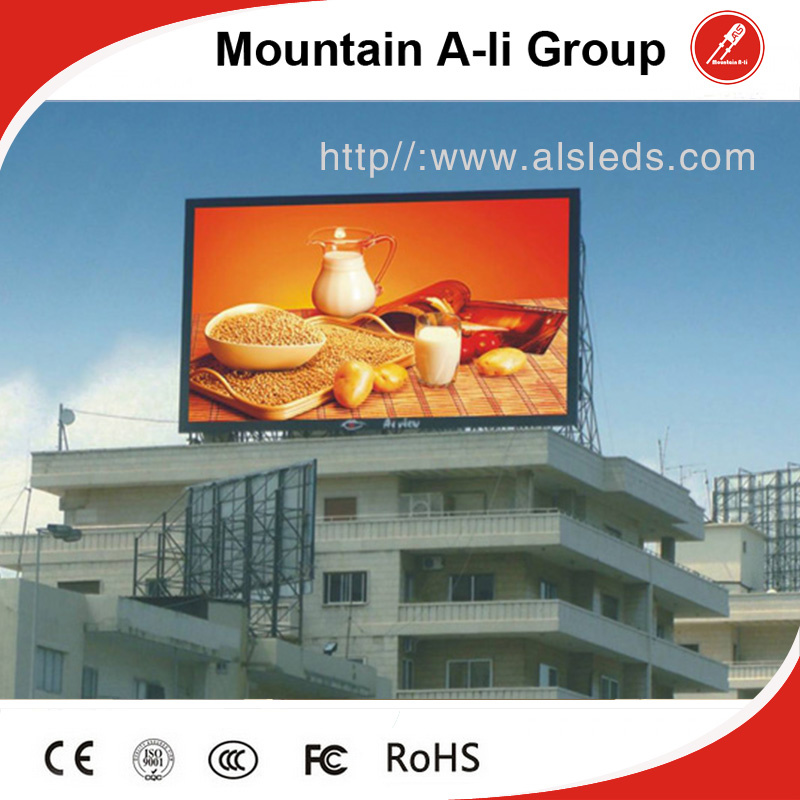

Waterproof P8 SMD outdoor led display with high quality product features :
1. Widely application field and short ROI time. Commercial advertising LED display screen, Stadium perimeter LED display screen, mobile trailer LED display, LED screen for mobile media, shopping mall LED display, screen for logo showing, LED display for bank or stock exchange rate showing, LED moving sign for train and bus station, LED display screen for air port, elecommunication LED display screen for information showing and instruction and ect.
2. Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more audience to get short ROI of your LED display screen's investment.
3. Long term brightness. More than 6000 nits brightness for outdoor full color LED display, more than 800 nits brightness for indoor full color LED display capacity throught products lifetime of LED display screen.
4. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the LED display screen system.
5:Low energy consumption ,long lifespan , less maintenance performance ./ No color difference , concentrating well, good veiwing angle .
6:Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
7:High brightness , high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .
8:Simply installation , easy to maintain ,easy to use .
| Waterproof P8 SMD outdoor led display with high quality techincal parameters |
| Unit Module | Item | parameter |
| Model | P8 surface mounted module |
| Module size | 320mm*160mm / 256mm*128mm |
| Pixel Pitch | 8mm |
| Pixel Density | 15625dots/m2 |
| Pixel Configuration | 1R1G1B 3 in 1 |
| Package mode | SMD2121 |
| Module Resolution | 40dots(W)*20dots(H) / 32dots(W)*16dots(H) |
| Max power consumption | 25w |
| Module Thickness | 2.8cm |
| Module Weight | 0.55kg |
| Driving Method | Constant Current Driving |
| Scan Method | 1/5scan / 1/4scan |
| Interface Way | HUB75B |
| Brightness | ≥6200cd/m2 / ≥6500cd/m2 |
| Unit Module | Cabinet size | 640mmx 640mm |
| Quantity of Module | 8 |
| Power supply Mode | 5V/40A / 5V/60A |
| cabinet resolution | 80dots *80dots |
| Optimal Viewing Distance | 8M-50M |
| Optimal Viewing angle | 160°(W)120°(H) |
| Enviroment Temperature | Storage :-35ºC-+85ºC
work :-20ºC-+50ºC |
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% |
| Average power | 400W/H |
| Max power Consumption | ≤800W/m2 |
| Current | ≤20mA (Single LED ) |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP |
| Control Mode | Synchronization with PC |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥600HZ |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor |
| MTBF | ≥9000hours |
| Power Switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
| Waterproof P8 SMD outdoor led display with high quality |
Product Advantages :
1. Price Advantage: Best competitive price of the market.
2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .
3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .
4. Service advantage: With professional service team for 24 hours service! Rich advertising LED display engineering experience both in domestic and oversea market . Top quality+reasonable price+responsible after service=successful & win
| Trade terms : | 1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery . |
| 2. Shipping freight are quoted under your requests . |
| 3. Shipping port: Shenzhen,mainland China . |
| 4. MOQ:1SQM . |
| 5.Package : Wooden packing and flight packing . |
| About Technology : | 1. We provide the technology training for free, which contains the operation training and maintenance training at our factory. |
| 2. We will send our engineers to your country by negotiation. |
| 3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion. |
| 4. We will send our engineers to your place if we are expected after our negotiation. |
OUR COMPANY offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality. Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
OUR COMPANY provides onsite product installation, debugging and maintenance service for our LED display. Such as:
1. After-sales service:
1) Service principles: Response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipments.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
