| Prod Model: |
p16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256*128mm |
| Pixel Resolution: |
W: 16dots*H: 8dots |
| Dimension: |
1024mm*768mm*170mm |
| Colors: |
16777216 |
| Horizontal Viewing Angle: |
120 |
| Brightness: |
8000CD/Sqm |
| Color Temperature: |
10000CD/Sqm |
| Driving Method: |
1/4scanning |
| Frame Frequency: |
60Hz |
| IP Grade: |
IP67 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Average Power Consumption: |
1000W/Sqm |
| Pixel Density: |
3906dots/Sqm |
Product Description

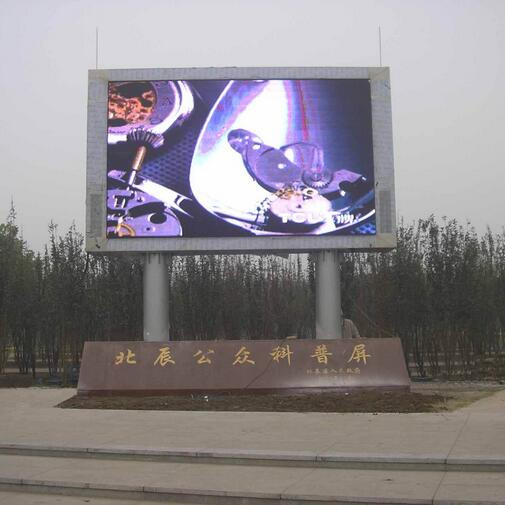

Waterproof P16 Outdoor LED Video Display
Feature and Advantage
1. Waterproof and dustproof: IP68front, IP65back
2. Best viewing distance: 10-300m
3. White balance brightness: 9000CD/sqm can adjustable
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 500W
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributoership are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests4. Shipping port: Shenzhen, Mainland China5. Warranty time: 3years
6. Delivery time: 3-12working days
| Description | Technical parameter |
| Unit module | Module size | 256*128mm |
| Pixel pitch | 16mm |
| Pixel density | 3904dots/m2 |
| Pixel configuration | 2R1G1B |
| Led specification | Φ 5ellipse |
| Pixel resolution | W: 16dots*H: 8dots |
| Cabinet | Dimension | 1024mm*768mm*110mm |
| Quantities of module | 24pcs |
| Power supply | 5pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 55kg |
| Best viewing angle | 12-300m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 11cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 500W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | Static scanning, also virtual |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 9, 000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Network calbe: 100m, Multi-model: 500m, Single-model fiber: 20km |
| Software | LED media player
|
