| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 9--300key: |
64 |
| Connection Type: |
Wired |
| Wireless: |
Wireless |
| Application: |
Tablet PC |
| Interface: |
USB |
| Working Principle: |
Mechanical |
| Shape: |
Standard |
| Key Technology: |
Mechanical Axis |
| Product Positioning: |
Mechanical Keyboard |
| Key Numbers: |
104 |
| Text Input: |
Double Bond |

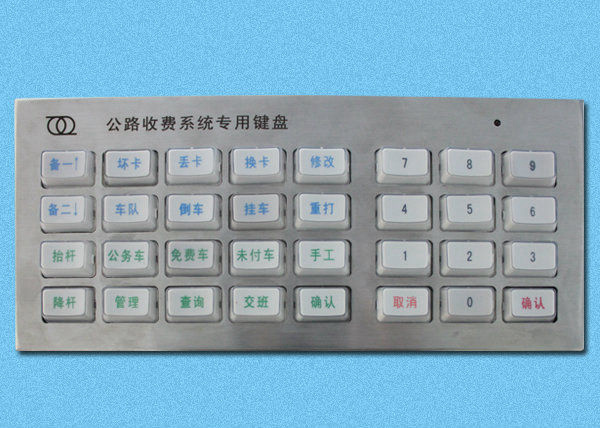

Product Description
1.Electricity performance:
Working voltage:≤50VDC
Operating current:≤100mA
Contact resistance:0.510Ω
Return route resistance:
Generally≤150Ω,specially according
to customer request
Switch power:0.25500Mw
Insulative resistance:≥100Ω
Base material pressure:150VDC
2.Physical performance:
Service life:1000000 times Touching
With joint forces:15450g
Snapping back time:10s
Closed displacement:0.10.4ms(not touching)
0.41.0ms(with touching)
3.Environment adaptability:
Operating temperature:-1070
Depositing temperature:-4070
Work humidity:95%
Altitude:04500 meters
4.Machine capability:External dimension:400*800MM
Key size:according to customer request
Key spacing:>1.5MM
Line wide:≥0.5MM
Resisting vibration:(Reference to MIL-STD-202)
Since 2006, E-sun electronic provide customer with customerize designed and Input Devices and interface technology.
E-sun electronic believe that we stand by creat value for customer. Base on China, we support customer the most competitive price.
All materials is RoHS compliance.
2006 E-sun shenzhen established with membrane switch, nameplate, graphic overlay, domed label market
2007 invested for kapton circuit and PCB
2010 invested for silicon rubber(elastomer) keypad
2012 invested touch panel and touch display(touch monitor)
2013 invested capacitive switch keypad
2014 Setup Hongkong E-sun office for oversea market
2015 invest to office device
Product
*Touch panel
*Resistive touch panel(4 wire, 5 wire and 8 wire) from 3.5inch to 23 inch
*Project capacitive touch panel from 1.8 inch to 32 inch
*Membrane switch/graphic overlay
*Elastomeric keypad
*Metal keyboard
*Customerize plastic products and metal products
*PCB and regid Flexiable print circuit(kapton and PET)
*Value add assembly service
*Bar code scanner and laser scanner
Appliance:
Medical device
Industry control
Aerospace and defence
Comsumer
Automative
Other
