| Prod Model: |
TD-800D/24 |
| Detection Sensitivity Of Each Zone: |
From 0 to 255 |
| Working Frequency: |
1-100 |
| Working Environment: |
-20-65 Degree |
| Sensitivity: |
255 Level |
| Certification: |
FCC RoHS |

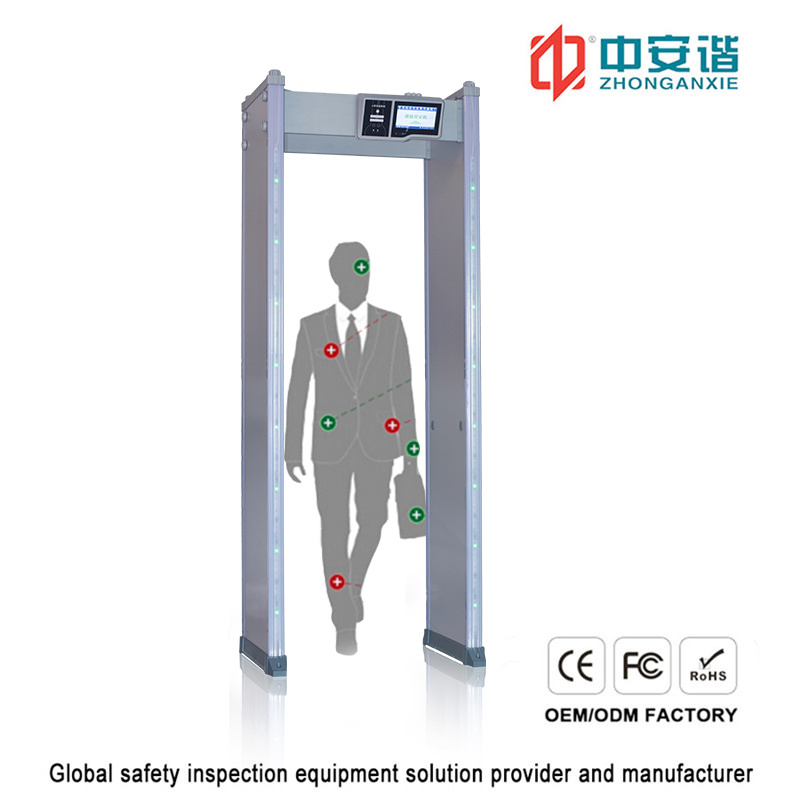

Product Description
Application1. Places which should be security examined. Such as airport, customs, harbor, station, etc.2. Places where prohibited metal items should be examined. Such as court, police station, jail, lockup, etc.3. Public places entrances Such as important place, exhibition, business rally, celebration meeting, stadium, etc.4. Industries where the valuable metal articles should be avoided missing. Such as hardware, electronics, jewelry,
coinage line , etc.5. Entertainment places where dangerous items should be forbidden. Such as nightclub, theater,ballroom, bar, KTV, etc.
6.Places where the dangerous items should not be taken with, such as the Bank , Government , Post office,
school , private house ,etc.Product features- Multi-zone technology:24 detection zones,adjust sensitivity of each zone individually.

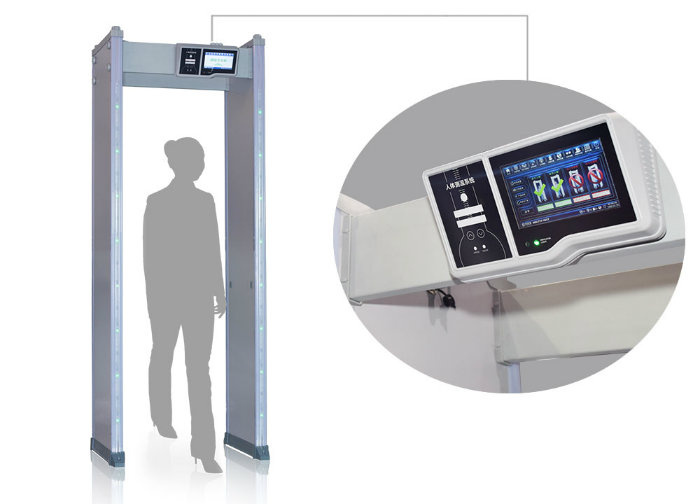

- Touch screen:7-inch HDMI LCD touch screen,easy to operate and understand.
- Mobile connection technology: realize mobile APP remote control(optional).
- IP Grade: IP55 superior waterproof performance(optional).
- Multi-alarm sounds to choose-to fit different applications.
- Counter: Record the pass and alarm numbers.
- Query function: The system has real-time information query function
- Self calibration once power on.
- Detection Technology:Even detection technology, no blind spot.
- Professional detection process:built in 60 different detection occasions(providing upgrade services).
- Working frequency: 100 working frequency.
- Security level:100 security levels.
- Self diagnostic, it will inform the user when exit the system.
- Start-stop technology:infrared devices with automatic start-stop technology.
- Adjust the alarm sounds arbitrarily.
- Adjust the working frequency automatically or manually.
- Detection sensitivity of each zone: From 0 to 255 level.
- Intelligent Standby: The system has intelligent standby operation alerts.
Specification | FUNCTIONS |
| Model | TD-800D/24 |
| External dimensions | 2240×670x850mm |
| Vertical channel size | 2000x700mm |
| | |
| Packing size | 2280x700x290mm |
| NW | 67KG |
| GW | 75KG |
| Working voltage | AC90V~240V 50/60Hz |
| Power | 12W |
| Working frequency | 1-100 |
| Working environment | -20ºC~65ºC |
| Installation environment | (W) 100cm* (L) 200cm
(no metal in this range) |
| Highest standard | Metal size≥6g |
Our advantages1.Brands cooperation,ODM,OEM
2.Sales of a complete set of technical solutions
3.Technical guidance and training for customers
4.Product design, technology development, parts processing and sales integration services
5.One of the world's top four brands, leading technology, quality first, service first-class
6.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
