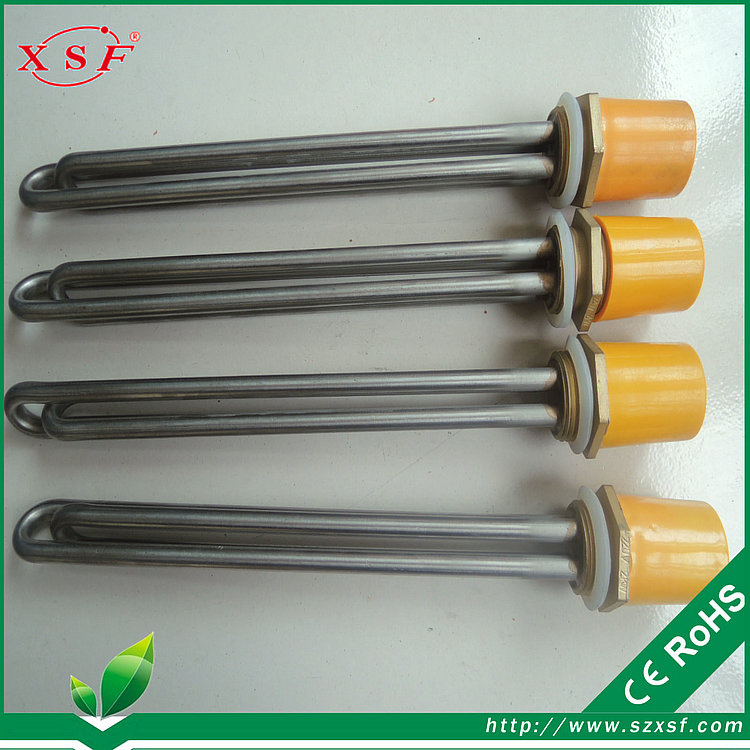

Water Tubular Heater with Themostat

Prod Model:	XSF-IMH-181
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Heater:	Stainless Steel Flange Heater
Name:	Immersion Tubular Heater
Voltage:	as Your Request
Power:	as Your Request
Shapes And Sizes:	Available
Length:	10mm-6000mm

Product Description

Water Tubular heating element with Themostat

Immersion Tubular heaters are one of the most widely used methods for heating liquids (such as water, oil, heat transfer fluid and corrosive solutions). Designed for use in tanks and pressurized vessels, they are easy to install and maintain to provide heat for many processes. The direct immersion method is energy efficient and easily monitored and controlled.

Specification parameter	SZXSF	Remark
Name	Electric heating element
Insulation resistance	≥1000MΩ(cold condition)
Leak current	≤0.5mA
Material	SUS304	Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage	230/800W	Voltage/Wattage can be customized as required,and Wattage tolerance(cold condition):+5%-10%
Diameter	6.5mm	Tube diameter can be changed to 6.6mm,8.0mm,10.0mm or others as requested
Resistance powder	Magnesium oxide	We can use other powder if requested
Faston terminal	Nickel plated iron	Materials of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Thermal fuse	Iron chromium	Material of thermal fuse can be nickel chromium wire if requested
Application	Roaster,bread toaster,stove,furnace,water boiler,and other home appliances

Immersion Tubular Heater Technical Parameter:
1.Tube diameter: Φ8-Φ16mm
2.Tube material:copper.ss304,ss321,ss316L,incoloy800
3.Input voltage and wattage:customized as customer's requirement.
4.Wattage tolerance:+5%-10%
5.Leakage current is less than 0.5Ma


Immersion Tubular Heater Characteristics:
Select excellent raw material as per operation conditions of equipment,and meet the demand of corrosion resistance and anti-oxidation.
Good electrical performances to improve operationsafety of equipment.
Advanced technology and strict management guarantee the operation requirement and long service life of equipment
  Immersion Heater Main Features:
(1). The electric heating elements developed by our factory is made from the excellent stainless steel tube, high quality electrically-melted oxidized magnesium power and high-density heating wires with international famous brand and processed by national advanced equipments
(2). It is heating in the water and it is widely used in the electric water heaters.
(3). Heating temperature rises quickly .
(4). It is safe when used.


Immersion Tubular Heater Application:
Electric water heating elements are widely used in domestic or commercial water dispenser,coffee machines,water and oil heaters,showers water machine,dishwashers,etc.


When ordering Immersion Tubular Heater, please specify the below:

(1). Flange size and heater length, drawing or samples available will be very helpful.

(2). Wattage and Voltage

(3). Material

(4). Working environment
