| Prod Model: |
CSFXRS- |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Water to Water Heat Pump Csfxrs-20iia/S |
| Color: |
Grey |
| Model: |
Csfxrs-20iia/S |
| Compressor: |
SANYO |
| Refrigerant: |
R410A |
| Heat Source Side Exchanger: |
Coaxial Heat Exchanger |
| Heat Source: |
Water-source |
| Certification: |
TUV |
| Work Environment: |
Common Heat Pump |
| Application: |
Beauty Salons |
| Heat Temperature: |
55 ~ 60 Celsius Degree |
Product Description

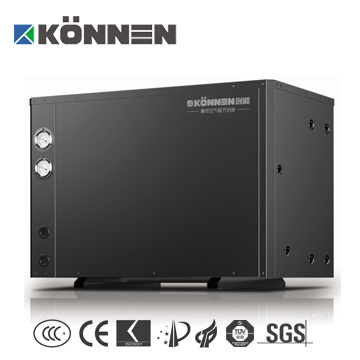

Water to Water Heat Pump CSFXRS-20IIA/S
Rated Heating Capacity: 20KW
Rated hot water outlet temperature: 55 ~60 degree
Power Supply: 380 ~ 415V/50Hz
Refrigerant: R410A
Compressor: SANYO
Wiring diagram:
| Model | CSFXRS-20IIA/S |
| Rated heating capacity(KW) | 20 |
| Rated produce hot water capacity (L/h) | 430 |
| Rated outlet water temperature(celsius degree) | 55 |
| Max outlet water temperature(celsius degree ) | 60 |
| Electricity parameter | Rated power (KW) | 4.1 |
| Rated Current (A) | 7.8 |
| Maximum power (KW) | 5.3 |
| Maximum-current(A) | 10.5 |
| Refrigerant R410A (kg) | 3.0 |
| Unit Dimensions (mm) | 956 x 556 x 680 |
| Power Supply | 380V ~ 3N/50HZ |
| Heat source side water temperature | 9 ~ 29 (celsius degree) |
| Heat exchanger | Source side exchanger | Coaxial heat exchanger |
| Use side exchanger | Efficient tube heat exchanger |
| Pipe specification | DN25 |
| Heat source side water flow | ≥ 2.8m³ /h |
| Use side water flow | ≥ 3.4m³ /h |
| Water pressure drop | < 38Kpa |
| Unit Control | Microcomputer central processor ( line control ) |
| Unit weight(Kg) | 114 |
| Noise dB(A) | ≤ 38 |
Test Conditions:
1. Use side initial water temeprature 15 celsius degree, end water temperature 55celsius degree .
2. Source side water inlet temperature 15 celsius degree. outlet temperature 10 celsius degree.
|
Zhejiang Cen New Energy Technology Co., Ltd. Our company is still developing more styles of products. We take the technology as the core\regard the quality as life\treat the user as god. We dedicated to provide you with the highest cost-effective energy-saving products\high-quality engineering design and meticulous transformation of after-sales service!
Our main products as follows:
Air-source heat pump unit for household and commercial
Ground source heat pump unit
Water source heat pump unit
Combine cooling\heating and hot water heat pump unit
Swimming pool heat pump unit
Heat recovery of centre air-conditioner so on energy-saving products, our products passed prove ISO9001\CCC\CE certificate.
Product features: Reasonable structure\stable quality\reliable and nice.
We consistently insist on the sane business strategy. We don't demand the biggest, only best. Take the most serious attitude, do the most professional thing. Let us enhance friendship with large clients and sincere cooperation, create brilliance!
