| Prod Model: |
TOP MOUNT SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Temperature: |
40 Centigrade |
| Max Operating Pressure: |
28psi/2.0bar |
| Union Connection Provideduniversal Stand: |
Universal Standard |
| Max Flow Rate: |
4.32--19.2m3/H |
| Suggested Size Of Media: |
0.5-1.2mm |
| Function: |
Filtration |
| Material: |
Fiberglass |
| Product Name: |
Top Mount Swimming Pool Fiberglass Sand Filter for |
| Guarantee: |
1 Year |
| Way Of Water Output: |
Top Mount |
Product Description

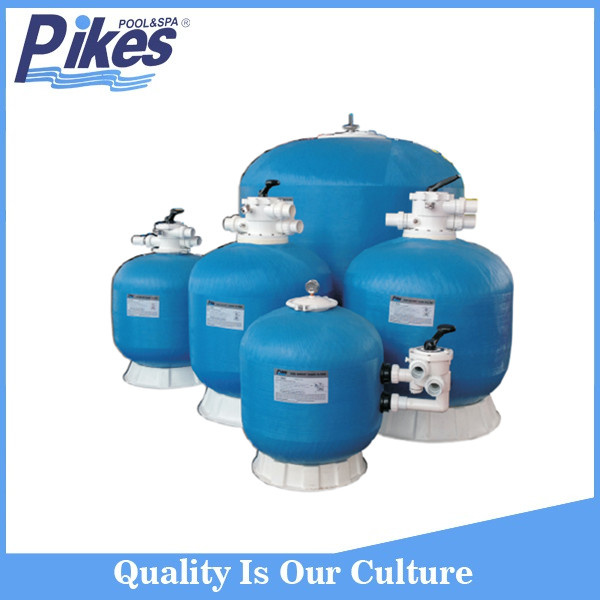

Top Mount Swimming Pool Fiberglass Sand Filter
1)It is made of fiberglass and high density polyethylene and its designed for most domestic swimming pools or spa pool.
2)Valve is designed to allow 360 degree rotation to simplify installation.
3)Easy-to-use water drain plug and multi-port valve lets you select any of the valves/filter operation
Ideal for: 1) Hotels 2) Motels 3) Clubs 4) Condos 5) Apartments 6) Homes
1.Details:
2.Funtions:
Refor to 6 way multi-port valve
Maximum working pressure ---250kpa/36psi/2.5bar
Maximum filtration velocity ---50cbm/h/sq
Maximum water temperaturen --43°C(109°F)
Size of Silica Sand----0.5-1.2mm
3.Factory Overview:
4.Technical Characteristics
Model NO | Filter Area(m²) | Valve Connections | Max Flow Rate | Sand(kg) |
| PS350 | 0.09 | 11/2inch 50mm | 72lpm 4.32 m³/h | 20 |
| PS400 | 0.13 | 11/2inch 50mm | 108lpm 6.48 m³/h | 35 |
| PS450 | 0.16 | 11/2inch 50mm | 135lpm 8.10 m³/h | 45 |
| PS500 | 0.22 | 11/2inch 50mm | 185lpm 11.10 m³/h | 85 |
| PS650 | 0.32 | 11/2inch 50mm | 260lpm 15.60 m³/h | 145 |
| PS700 | 0.40 | 11/2inch 50mm | 325lpm 19.50 m³/h | 210 |
Qingyuan Kasdaly Sanitary Ware Co., Ltd is located in Qingyuan City, the backyard garden of Pearl Ricer Delta. We are one of the largest professional manufacturers of SPA industry in this area. Our main products are outdoor spas, massage hot tubs, swim spas etc. Through more than 5 years of endeavor in this Industry, now we are the leading innovator of SPA design. Our products are sold throughout Europe, Australia, America, New Zealand, Asia, Russia, etc.
Our cooperate philosophy emphasizes on building strong and long term business relationship with all our customers. Our emphasis on quality control and innovative new product development has earned us an excellent reputation in all of the market we have served. We work closely with each of our customer in order to provide the exact products and service they require.
All joyspas are manufactured strictly according to ISO9001: 2008 quality management system guidelines, using most advanced facilities. Each SPA is energy efficient, and has been created to satisfy everyone' S needs and expectations, with a size and design to meet the needs of every backyard. Joyspa range designed to cater for the tallest to the shortest person in mind, with no compromise in comfort or therapeutic benefit.
With every SPA we design, together with well-experienced and friendly staff provides our client with the high quality and professional service that no one can match. From original concept to samples, production and delivery, our highly skilled and motivated workforce make things happen on time, every time.
You are welcome to come to visit our factory and discover our commitment to providing every customer the best service possible.
