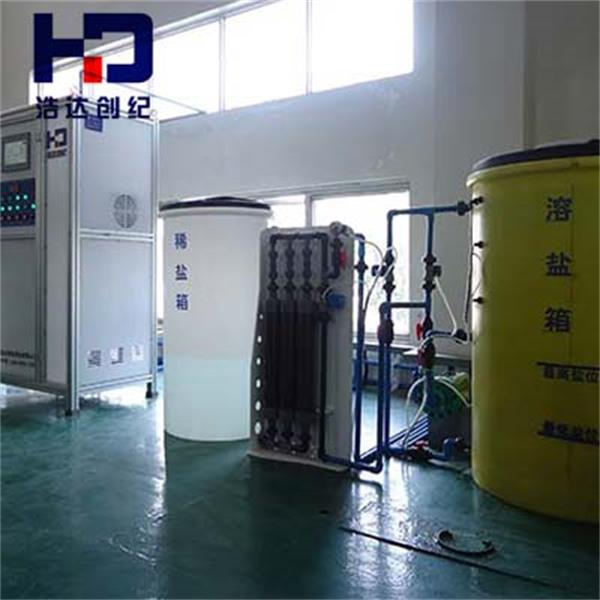

Water Purifier The Manufacture of Chlorine From Brine Electrolysis

Prod Model:	HD-1K-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	900mm(L)*700mm(W)*1780mm(H)
Weight:	220kg
Dissolving Tank Capacity:	800L
Diluting Tank Capacity:	500L
Storage Tank Capacity:	1.5t
Chlorine Production:	1000g/H
Naocl Concentration:	0.5~15%
Salt Cost:	<3kg
Power Cost:	<4kw
Ramark:	Split Type

Product Description

Product Description

Main reaction process: NaCl(salt)+ H2O(water) = NaClO(sodium hypochlorite) + H2↑ (hydrogen)

Sodium hypochlorite generator is a device to generate
 sodium hypochlorite solution
Working principle:electrolysis of brine
Raw materials needed: water and salt
Functions:  water bleaching, purification and disinfection



The Principle of Sodium Hypochlorite Disinfection

99.99% of NaClO will be hydrolysised into Water and generate HCL and O

Main reaction process:NaClO + H2O = NaOH + HClO(Hypochlorous acid)
                                         HCLO = HCL(Chlorine hydride) + O ( new ecological oxygen)

1. The oxydation of HClO (Hypochlorous acid): The molecule of  Hypochlorous acid can penetrate into the bacteria with oxidation reaction and break the balance of glucose metabolism to kill the bacteria
2. O (new oxygen): The protein of virus will be degenerated and led to death by  the strong oxidability of O (new oxygen)
3. The Chloridion: can disturb the metabolism and alter the osmotic pressure of bacteria and virus, lead them to death


Application

school, hotel, hospital for water disinfection
food company production process disinfection
industrial water circulating and bleaching
water station for purification and disinfection
water recycling plant for water treatment
sewage treatment plant for water treatment ., etc

water purifier the manufacture of chlorine from brine electrolysis



Main components

Electrolytic cell
1.UPVC  resistance corrosion pipe, internal electrode plate
2.Between anode and  cathode used PVDF material to isolation
3.Resistant  to corrosion, high stability, long life characteristics

Electrode plate
1.HADA company patent technology, the cathode and the anode were all made of pure titanium TA1
2.Surface used nanotechnology, ruthenium, iridium oxide coated layer
3.25 times coated, coating thickness of 20um
4.Ensured the electrode has the long service life

Electrolysis power
1.Marine-grade high-frequency voltage constant current power supply
2.Power conversion efficiency>92%
3.Resist general moisture, dust ,and corrosive,low heat ,stable

Siemens PLC
1.Directly controlled the safe, reliable operation of the generator system
2.Alarmed and auto stopped the Siemens SmartSeries LC touch screen
3.Displayed the running state, through the touch screen to adjust and set all parameters.



Advantage by our machine

	HADA series	Others
Chlorine concentration	15% at max	5~12% at max
Eletrolyzer	Pure titanium ,coating by ruthenium and iridium Gap between anode and cathode: 2~3mm, decrease scale formation generate Low heat 25~40 times of coating, ensure Anode long life and high producing	Gap between anode and cathode: 0.5~0.9mm,incease scale formation generate High heat 15~20 times of coating, less durable
Electrolysis power	Power conversion efficiency>92% low heat, resist moisture,dust and corrosive	Power conversion efficiency at 75%~85%
Control system	"Siemens" PLC and LCD touch screen 24 hours automatic control online system which you can control and check status in office	Other PLC
Cost for running	To produce 1KG chlorine cost: <3KG salt and <4KW power	To produce 1KG chlorine cost: >3.5KG salt and >4.5KW power
Supporting	Detail of every part of the machine Whole set of design chart for project Detail manual books Technical support online and local	PI and Manual books

water purifier the manufacture of chlorine from brine electrolysis



Guarantee and after-sale service
1years guarantee for whole generator, 5years guarantee for Electrolytic cell
Technical support online and local
Extra spare parts provided
Quick response after sale service



Our Projects

Model	Projects
HD-10K×2	26th world University sports meeting 2011
HD-15K×2	Shenzhen henggang water recycling plant
HD-120	Zhengzhou air port Water Company
HD-200~1000	Shandong changdao water company
HD-1000×2	Singapore SembCorp Water  Company
HD-1K	Guangdong minjie group
HD-10K×2	Daqing Oilfield longyi waterworks
HD-20K×2	Jiaozuo Wenxian east County water plant
HD-15K×2	Zhangzhou Development Water  Company
HD-350	Uzbek Waterworks
HD-4000	Budweiser InBev Sedrin beer company
HD-5K	Fujian mandy food company
HD-300	Zhangzhou huachang food company
HD-5K~20K	Singapore shipyard
HD-10K~15K	China shipyard
HD-20K	Japanese Osaka
HD-1500	Fujian dragon  Food Co. Ltd.
HD-500	Fuzhou xinfu food company
HD-1000	Xiamen Swire Coca-Cola Company
HD-800	Fuzhou Pepsi Cola Beverage Co., Ltd.
HD-5K	Zhangzhou 175 Hospital

water purifier the manufacture of chlorine from brine electrolysis



FAQ

What does chlorine do?
Chlorine is a biocide and is toxic to microorganisms via oxidation reactions within them. Chlorine disturbs the production of ATP (adenosine triphosphate), an essential compound for the respiration of microorganisms, such as bacteria and virus, thereby killing them. It does not purify or clean the water by removing debris; it just kills it so that the stuff doesn't grow or breed. In 1908, chlorine was used for the first time as a primary disinfectant of drinking water in Jersey City, New Jersey, and chlorine water saved thousands of lives in World War I when it was used to wash wounds.

What is sodium hypochlorite?
Sodium Hypochlorite is a member of the chlorine family of disinfectants. Sodium Hypochlorite is a chemical compound made up of the elements: sodium, oxygen, and chlorine and is formed from salt and water.

What does hypochlorite do?
Sodium Hypochlorite is a disinfectantin other words, it kills organisms such as bacteria and viruses and also aquatic life forms, i.e. mussels, algae, etc. It does not purify or clean the water by removing debris; it just kills it so that the stuff doesn't grow or breed. On one project, Electrichlor was called upon to commission it's system prior to project water flow in order to prevent any microbially-induced corrosion (MIC) from attacking the steel piping.

Can water be purified with it?
No, it can only be sterilized. The matter is not removed as it would be by filtration or reverse osmosis.

Can I drink it?
Yes, you probably have been drinking it all of your life as the "Safe Drinking Water Act" (SDWA) requires disinfecting all drinking water. It has been adopted in the United States and also many other countries around the world. It has prevented many diseases and outbreaks of typhoid, dysentery and cholera epidemics. However, there are limits to the amount of chlorine that is safe to drink. The USEPA requires a public water system maintain a residual of 1mg/l throughout its service lines. If you have felt ill after you drank more than your share of swimming pool water in a day's time, you probably ingested much more than 10 mg/l of chlorine as well as all the dead matter in the water as well (we won't name those things but we're sure you could remember some of them).

Can I make bleach like the ones in the store?
No, the bleach in a bottle is often 3.5%-5.5%. The process to make that is totally different than our process.

Is this hypochlorite hazardous?
No, our technology limits the concentration to less than 1%, and that's a good thing as EPA says that concentrations of bleach are hazardous above 1%.

How much does it take to disinfect seawater?
The quality of water found in the open ocean is quite good and so disinfecting the water would only take a few milligrams per liter (mg/l) or parts per million (ppm). At the opposite end would be some of the harbor waters found near industrial centers can take upwards of 10 mg/l.

What do I need in order to make hypochlorite?
Salt is the basic ingredient required to make hypochlorite. The oceans vary from around 2% to slightly more than 4% with 3.5% being the average. We have units operating around the world where the salt level is at both ends of the spectrum.

How much power is needed to produce hypochlorite?
While there are several factors that come into play here, the power required is less than 4.5 kW of power for every kilogram of chlorine isolated as sodium hypochlorite. This term is used because the unit of measure is for the chlorine ion. So, when comparing other forms of chlorine, one must make the other forms equal chlorine values. For example, 13% bleach must be multiplied by a factor of about 7.7 to equal 100% chlorine availability.

How long will hypochlorite last?
Hypochlorite is in the halogen family and has an extremely strong negative charge. It wants to combine with positively charged particles, such as sodium, and will do so when a metal, such as sodium, or organic matter, is available. Sodium hypochlorite is not a stable compound and will begin to revert back into salt water in a sliding scale starting with less than an hour in a 0.8% concentration to several months in a 0.15% concentration.

How is the hypochlorite used?
The primary use of the hypochlorite manufactured by electrolysis is for disinfection. However, it is sometimes used to combine with other chemicals to make a more stable, non-reactive compound.

What kind of piping do I need?
PVC piping and fittings are recommended as they are not affected by hypochlorite or acid used for cleaning purposes. PVC, CPVC, Polypropylene, Polyethylene are all suitable for hypochlorite.

What are the bubbles in the solution?
The bubbles that form in the electrolytic cells are hydrogen gas that have collected at the cathode. It is a byproduct of the process but is not produced in sufficient quantity to be commercially attractive. In other words, the "strain is not worth the gain".
