| Prod Model: |
xwb |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body: |
Cast Iron or Ss |
| Method: |
Physical Treatment |
| Usage: |
Home |

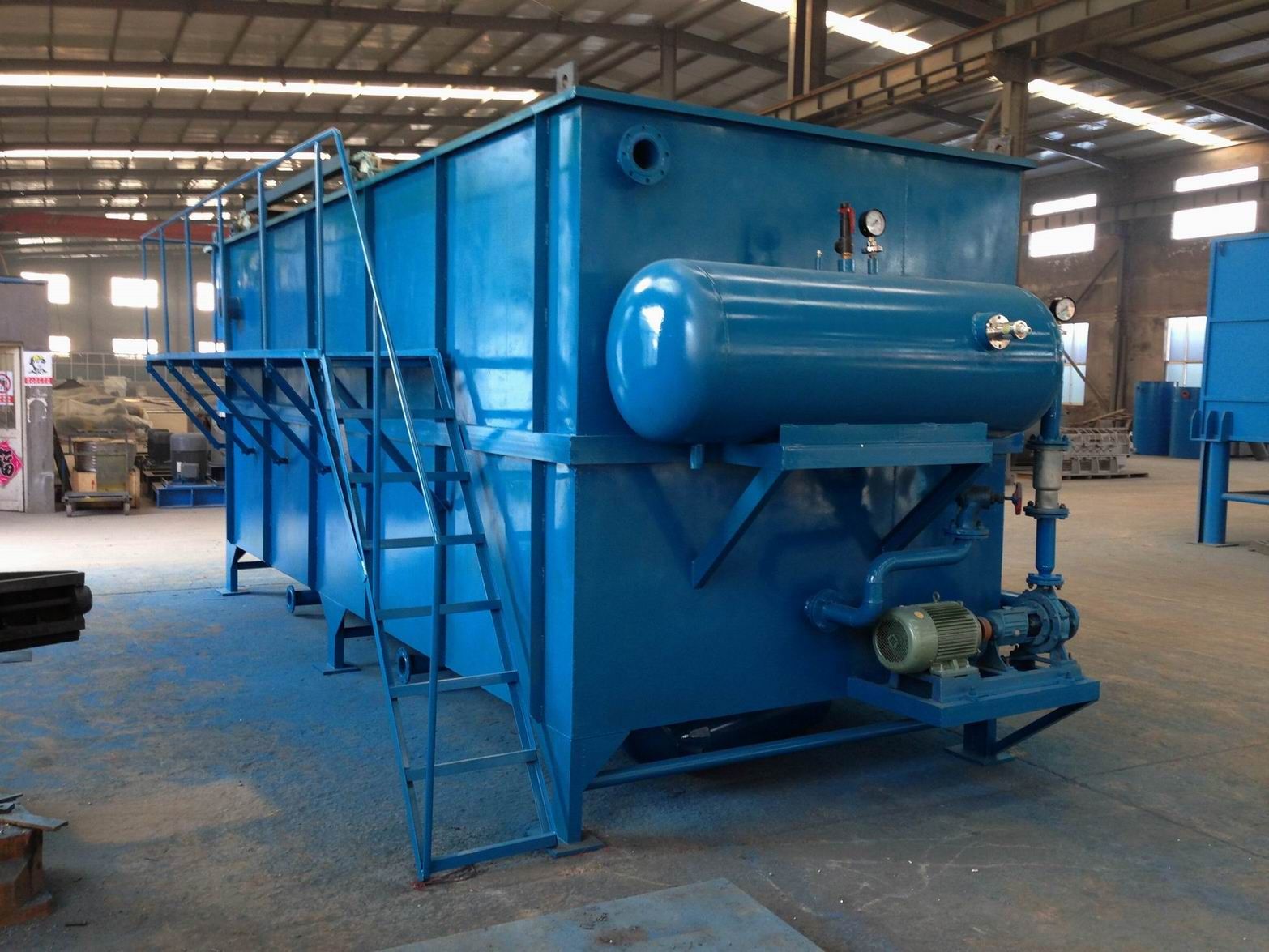

Product Description
Specifications
1). Air-liquid dissolving efficiency high
2). Low voltage operation
3). Dissolve gas-water dissolving efficiency 80-100%
1---30 m3/hour capacity, the advantages:
1). No air compressor system,
2. ) no air storage tank,
3). No water pump
4). No less power consumption
5). Easier operation
6). Operation automatically
7). Little cost
Application
(1) Separate small particles and algae in groundwater.
(2) Recover valuable products in industrial sewage such as paper pulp.
(3) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
Features
(1) Large capacity, high efficiency and small occupying space.
(2) Compact structure, easy operation and maintenance.
(3) Silt expansion elimination.
(4) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
(5) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
DAF application includes in:
Slaughter house
Chemical plants
Textile plants
Metal fabricator
Dairy processor
Pulp and paper mills
Pet food processors
Meat & poultry processing plants
Fruit & vegetable processors and canneries
Biological treatment facilities(clarification, thickening)
|
model |
Productivity (m3/h) |
Water volume (m3/h) |
Power (kw) |
Blows form machine power (kw) |
Air compressor power( kw) |
Air compressor model |
Clear water pump model |
Air flotation pot specification (mm) |
External dimensions (mm) |
|
|
XRWF-11-5 |
4-5 |
1.5-2 |
3 |
0.75 |
1.5 |
V-0.1/8 |
1"/2G25-1 |
φ400×1000 |
2800×2100×2200 |
|
|
XRWF-11-10 |
8-10 |
2-3 |
3 |
0.75 |
1.5 |
V-0.14/7 |
1"/2GC-5*2 |
φ500×1512 |
3700×2100×2200 |
|
|
XRWF-11-15 |
10-16 |
3-4 |
3 |
0.75 |
1.5 |
V-0.14/7 |
1"/2GC-5*2 |
φ500×1512 |
4500×2400×2300 |
|
|
XRWF-11-20 |
15-20 |
5-7 |
7.5 |
1.1 |
1.5 |
V-0.14/7 |
2GC-5*2 |
φ500×1512 |
4650×2400×2300 |
|
|
XRWF-11-30 |
20-30 |
6-10 |
7.5 |
1.1 |
1.5 |
V-0.14/7 |
2"/2"GC-5*2 |
φ500×1512 |
5840×2700×2300 |
|
|
XRWF-11-40 |
30-40 |
8-13 |
7.5 |
1.1 |
1.5 |
V-0.14/7 |
2"/2"GC-6*2 |
φ600×1880 |
6800×2700×2300 |
|
|
XRWF-11-50 |
40-50 |
15-20 |
7.5 |
1.5 |
2.2 |
V-0.14/7 |
IS65-40-200 |
φ600×1880 |
7500×2900×2300 |
|
|
XRWF-11-60 |
50-60 |
18-27 |
7.5 |
1.5 |
2.2 |
V-0.14/7 |
IS65-40-200 |
φ600×1880 |
8500×2900×2300 |
|
|
XRWF-11-80 |
70-80 |
24-32 |
7.5 |
1.5 |
2.2 |
V-0.14/7 |
IS80-65-160 |
φ650×2034 |
9300×3520×2300 |
|
|
XRWF-11-105 |
90-105 |
30-35 |
15 |
1.5 |
3 |
V-0.36/7 |
IS80-50-200 |
φ700×1980 |
11750×4400×2300 |
|
|
XRWF-11-150 |
125-150 |
60-80 |
22 |
2.2 |
3 |
V-0.36/7 |
IS150-80-400 |
φ800×1980 |
12100×5600×2300 |
|
|
XRWF-11-200 |
175-200 |
80-100 |
22 |
3 |
4 |
V-0.36/7 |
IS150-80-400 |
φ800×2100 |
12400×7600×2300 |
|
|
XRWF-11-250 |
225-250 |
110-120 |
22 |
3 |
4 |
V-0.36/7 |
IS150-80-400 |
φ800×2400 |
14700×7600×2860 |
|
|
XRWF-11-300 |
280-300 |
120-180 |
37 |
3 |
5.5 |
V-0.36/7 |
IS150-125-400B |
φ1000×2900 |
19100×7600×3150 |
|
