| Prod Model: |
ZDYA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Method: |
Physical Treatment |
| Usage: |
Industrial, Agriculture, Hospital |
| Material Quality: |
Cast Iron or Ss |
| Body: |
Cast Iron or Ss |
| Net: |
Wear-Resistance Poly |
Product Description
Specification:
1) Large treating capacity
2)Low energy consumption and low cost
3)Unique tilt and long wedge area ensures stable performance
4)National patent no.: 201020688456.9
Feature:
1. Long gravity dewatering area with strong treating capacity, heavy load capacity, low energy consumption and low cost.
2. Unique tilt and long wedge area ensures stable performance.
3. Multi-roller decreasing dia. Is compact in configuration and improves solid-content of filter cake.
4. New auto-adjusting and tilting system greatly improves life time of filter belt.
5. Adopts two independent backwash systems.

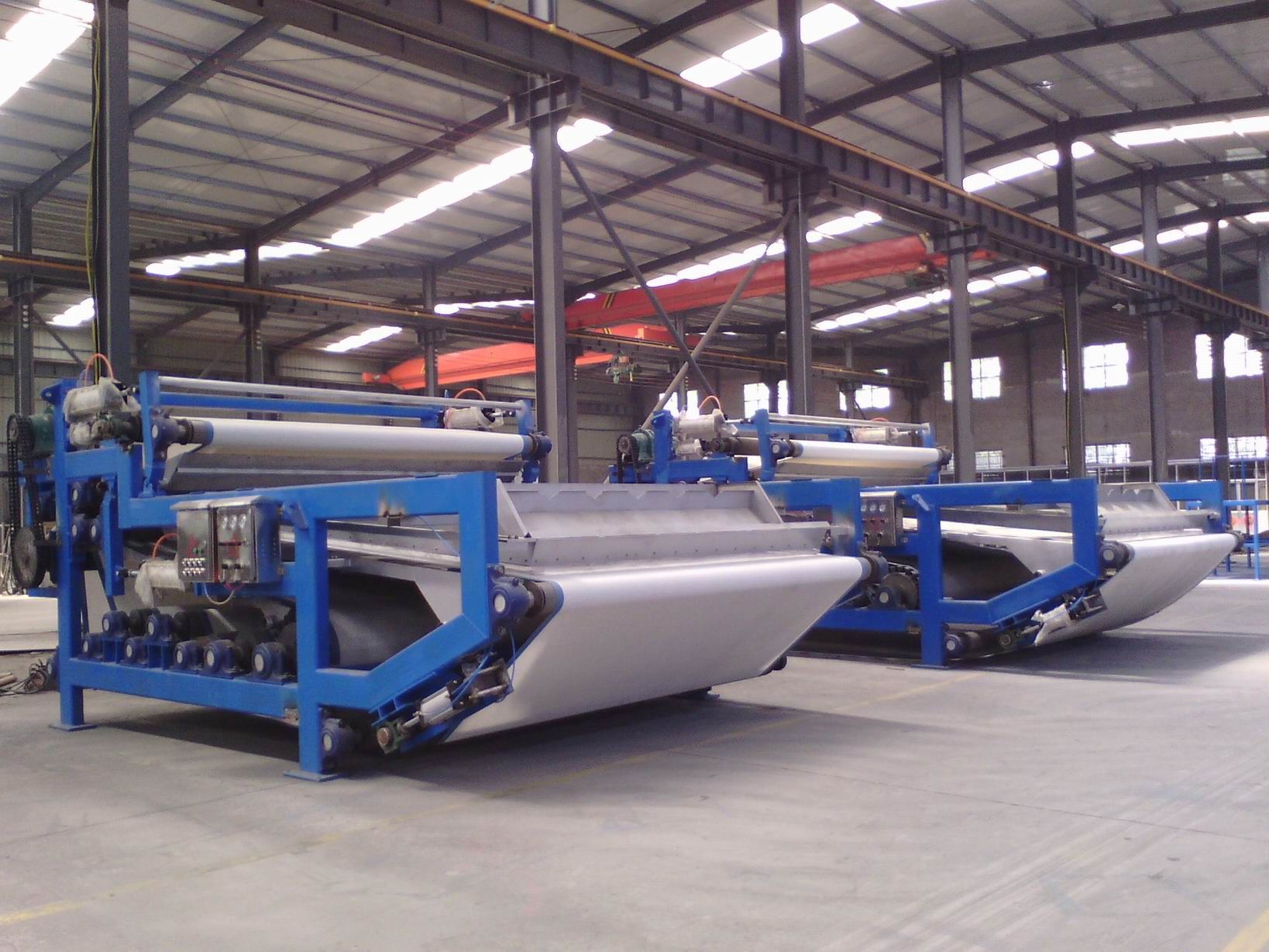

ZDYA series belt pressure filter
ZDYA series belt (type) pressure filter is a kind of dewatering machine developed on the basis of advanced foreign technology. It features large treating capacity, high dewatering capacity and long life time. As a part in waste water treatment system, it is used for dewatering of suspended particles and residue after treated so as to avoid secondary pollution. It is also applicable for treatment of thickener concentration and black liquor extraction.
Application references:
1. Paper & pulp sewage;
2. Printing/dyeing sewage;
3. Leather & tannery sewage;
4. Electro-plating sewage;
5. Metal-processing sewage;
6. Stone & mine sewage;
7. Food & beverage sewage;
8. Livestock sewage;
9. Butchery sewage;
10. City mixed raw sewage;
11. Excretion sewage;
12. Water purifying sewage;
13. Brewery processing wastewater.
|
Model |
Throughput (m 3 /h) |
Power of motor (kw) |
Air compressor power (kw) |
Band width (mm) |
Inlet consistency (%) |
Outlet consistency (%) |
Length (mm) |
Width (mm) |
Height (mm) |
|
ZDYA500 |
0.5-4 |
0.75 |
1.1 |
500 |
3-8 |
25-40 |
4290 |
900 |
1840 |
|
ZDYA1000 |
3-6.5 |
1.5 |
2.2 |
1000 |
3-8 |
25-40 |
4790 |
1400 |
2040 |
|
ZDYA1500 |
4-9.5 |
1.5 |
3 |
1500 |
3-8 |
25-40 |
4790 |
1900 |
2040 |
|
ZDYA2000 |
5-13 |
2.2 |
4 |
2000 |
3-8 |
25-40 |
4790 |
2400 |
2040 |
|
ZDYA2500 |
7-15 |
4 |
5.5 |
2500 |
3-8 |
25-40 |
5300 |
2900 |
2250 |
|
ZDYA3000 |
8-20 |
5.5 |
5.5 |
3000 |
3-8 |
25-40 |
5300 |
3400 |
2250 |
|
ZDYA4000 |
12-30 |
7.5 |
7.5 |
4000 |
3-8 |
25-40 |
5800 |
4400 |
2250 |
