Prod Model: |
KM-XX |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Water Purification System / Refine System / Purifi |
Function: |
Water Purification |
Raw Water: |
River Water/Lake Water/Underground Water |
Outcome Water: |
Mineral Water/Pure Water |
Market: |
Water Purification System / Refine System Market |
Outcome Capacity: |
1 Ton/H--30 Tons/H |
Main Material: |
SUS304 |
Voltage: |
220V / 380V |
After Sale Service: |
Engineers Available to Service Overseas |
Warranty: |
12 Months |
Type: |
Reverse Osmosis |
Usage: |
Drinking Water |
Motive Force: |
Pressure |
Certification: |
GS |
Product Description
Water purification system / refine system / purifier
1. Reverse Osmosis system
2. Stainless steel tank
3. American RO membrane
4. CE, ISO, SGS approved

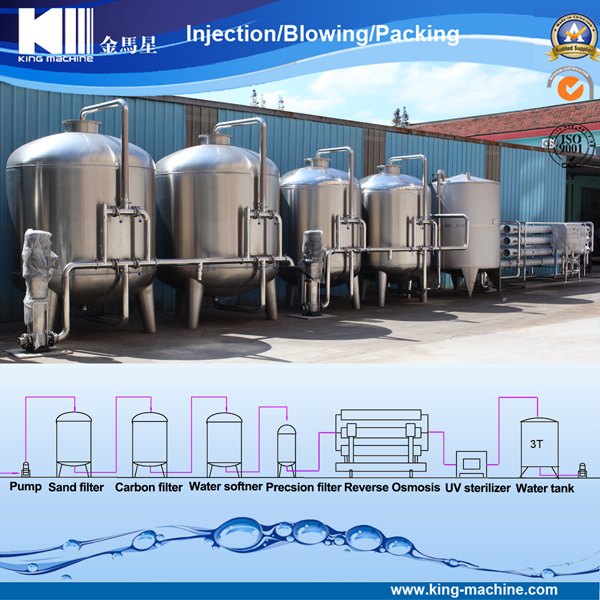

Flow chart:
Raw water tank— Raw water pump— Multi-medium filter--active carbon filter water softner (Sodium Ion Exchanger)— Precision filter— RO mainframe(including chemical cleaning device)— Ozone generator— Finished product water tank
First stage pretreatment. (Sand filter):
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5. Water filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions. Filter is an effective water purification and treatment of the main process in the preparation of pure water is an indispensable process.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. The structure of activated carbon filters and quartz sand filters, the difference is placed inside the strong adsorption capacity of activated carbon for removal by the quartz sand filter without the filter out organic material, adsorption of residual chlorine in the water, using water more than less than or equal to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong oxidants chlorine, there are various types of membrane damage, in particular, reverse osmosis membranes are more sensitive to chlorine.
Third stage pretreatment (Resin softener):
Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +, Mg2 + was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter):
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree, but still per milliliter of water for hundreds of thousands of particle size 1-5 microns colloidal particles, the pressure on this filter to remove water after the particle size of 100 microns or less in small particles, to further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running processes.
RO system:
Using reverse osmosis technology for desalination, reverse osmosis membrane was only 0.001 micron pore size, can be harmful to remove dissolved solids and bacteria, viruses, etc., desalination rate of more than 99.6 percent, in line with national standards to produce pure water, the host section contains the security filter, high-pressure pump and reverse osmosis membrane, security filters for the fourth grade and above pre-treatment systems, high-pressure pump is the host of one of the core equipment for the reverse osmosis membrane elements to provide sufficient pressure to overcome the penetration resistance to pressure and run to meet the needs of a device to achieve the rated water.
Model | Outcome capacity (Ton/h ) | Motor power (kw) | Membrane | Entrance Diameter (mm) | Size(L*W*H) ( mm) | Weight (Kg) |
KM-1 | 1 | 1.5 | 4040 | Φ32 | 1300*600*1400 | 100 |
KM-2 | 2 | 3 | 4040 | Φ38 | 1400*600*1400 | 200 |
KM-3 | 3 | 4 | 8040 | Φ48 | 1600*750*1750 | 200 |
KM-4 | 4 | 5 | 8040 | Φ48 | 2550*750*1750 | 250 |
KM-5 | 5 | 7 | 8040 | Φ60 | 2550*750*1750 | 300 |
KM-10 | 10 | 11 | 8040 | Φ60 | 3000*800*2000 | 600 |
KM-15 | 15 | 16 | 8040 | Φ72 | 3000*1250*2000 | 840 |
KM-20 | 20 | 30 | 8040 | Φ60 | 3000*1800*2000 | 1250 |
Zhangjiagang King Machine Co., Ltd. is a group company located in Zhangjiagang city Nanfeng industrial town, we have more than 15years experiences on beverage machinery and plastic machines.
We devote ourselves to the development, research and production of plastic machine and liquid food and beverage packing and filling industry and automatic blow molding machine in China.
Our Main products including: Mineral water and purified water producing line. Carbonated beverage producing line. 3 gallons& 5gallons producing line. Flat and tube UHT device, and CIP system. All the products are sold well in every province and city of the whole country and also exported to about thirty countries and areas with strong technical force, advanced equipment, scientific management system and perfect after-sales service.
Our Main Products Likes:
1000-15000bph water productione line
1000-15000bph juice production complete line
1000-15000bph carbonated drink production line
1000-15000bph wine bottling line
1000-9000tin cans/hr
5gallon bottle filling line
Stand alone machines also available
Welcome Customers Visit Our Company.
