| Prod Model: |
SFDPA1-015-0120-36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ozone Water Purifier |
| Usage: |
Agriculture/RV/Marine/Yachts/Boat/Caravan/Water Sy |
| Valve: |
Viton |
| AMPS: |
0.8A Max |
| Duty Cycle: |
Intermittent |
| Diaphragm: |
Santoprene |
| Pressure: |
120psi/8.3bar |
| Product: |
Water Pump, RO System Water Purifier |
| Port Dimension: |
3/8"-18 Fnpt |
| Motor Type: |
12VDC Permanent Magnet, Totally Enclosed, Non-Vent |
| Certification: |
CE, ISO9001:2008, RoHS |
Product Description

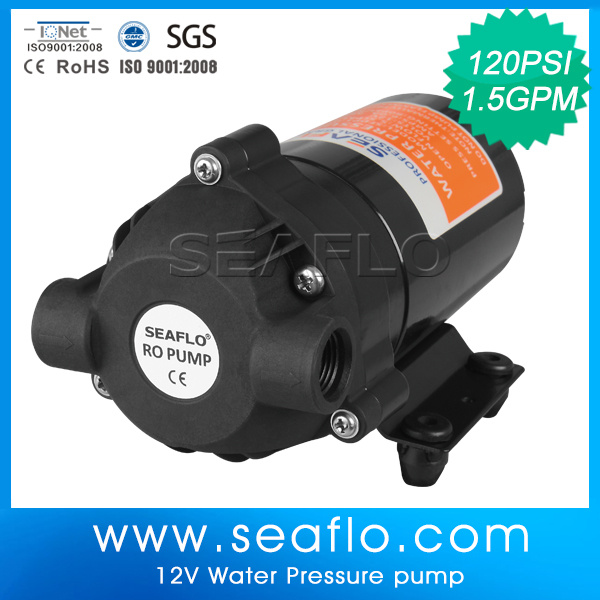

Water Pump, RO System Water Purifier
Application:
Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system
How a Diaphragm Pump Works
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber
Has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet
The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity
|
Housings: |
Polypropylene |
|
Valves: |
Viton |
|
Diaphragm: |
Santoprene |
|
Fasteners: |
Stainless Steel |
|
Motor Shell: |
Coated Steel |
|
STANDARD PUMP CONFIGURATIONS |
|
Model |
Switch |
GPM/LPM |
PSI/BAR |
Max Draw(A) |
Valves |
Diaphragm |
Ports |
Voltage |
Wire Connections |
|
SFDP1-015-120-36 |
By Pass |
1.5/5.5 |
120/8.3 |
10 |
Viton |
Santoprene |
3/8"-18 FNPT |
12V |
2-Pin/Leads |
|
SFDP2-015-120-36 |
By Pass |
1.5/5.5 |
120/8.3 |
5 |
Viton |
Santoprene |
3/8"-18 FNPT |
24V |
2-Pin/Leads |
|
SFDP1-018-120-36 |
By Pass |
1.8/7.0 |
120/8.3 |
12 |
Viton |
Santoprene |
3/8"-18 FNPT |
12V |
2-Pin/Leads |
|
SFDP2-018-120-36 |
By Pass |
1.8/7.0 |
120/8.3 |
6 |
Viton |
Santoprene |
3/8"-18 FNPT |
24V |
2-Pin/Leads |
|
SFDPA1-015-120-36 |
By Pass |
1.5/5.5 |
120/8.3 |
0.8 |
Viton |
Santoprene |
3/8"-18 FNPT |
110V |
Leads |
|
SFDPA2-015-120-36 |
By Pass |
1.5/5.5 |
120/8.3 |
0.5 |
Viton |
Santoprene |
3/8"-18 FNPT |
220V |
Leads |
|
Consult factory for other available models |
