| Prod Model: |
TM0901M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
COB |
| Backlight Type And Color: |
LED, Blue |
| Driving Condition: |
1/4 Duty, 1/3 Bias |
| Operating Temperature: |
-10 ~ 70°c |
| Storage Temperature: |
-15 ~ 85°c |
| LCD Connection: |
Metal Pin |
| Viewing Direction: |
6 O'clock |
| Screen Size: |
≤17" |
| Application: |
Big-Screen Project |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Optimum Resolution: |
1024x768 |
| Type: |
TN |
| Widescreen: |
Not Widescreen |
| Response Time: |
2ms |
| 3D: |
Not 3D |
| Interface Type: |
VGA |
Product Description
Electrical Condition:
Item | MIN. | TYP. | MAX. |
| Operating Voltage (V) | 4.8 | 5.0 | 5.2 |
| LCD Vop (V) |
| 3.0 |
|
| Backlight Vf (V) |
| 3.0 |
|
| Backlight If (mA) |
| 90 | 120 |

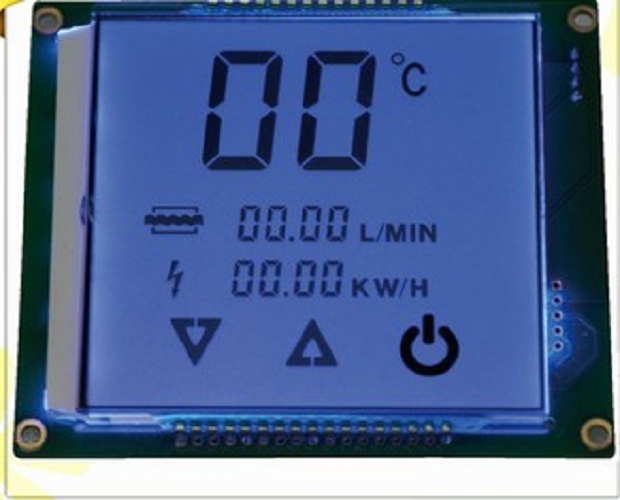

Display Feature
Structure: COB
LCD Display Mode: TN,Positive,Transflective
Viewing Direction: 6 O'Clock
Driving Method: 1/4Duty,1/3Bias
Backlight type & Color: LED,Blue
Control/Drive IC: PIC16F1947
LCD Connection: Metal Pin
Mechanical Data:
Outline: 91.00×78.00×7.5mm
VA: 67.00×65.50mm
Temperature Range:
Operating Temperature (°C): 10 to 70
Storage Temperature (°C): -15 to 85
