| Prod Model: |
HS71 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
71kw |
| Electric Heating Capacity: |
30kw |
| Humidifying Capacity: |
23kg/H |
| Rating Flow: |
14000CMH |
| Size: |
1880*1090*1930mm |
| Weight: |
900kg |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
380/400 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CCC |
| Condition: |
New |
Product Description

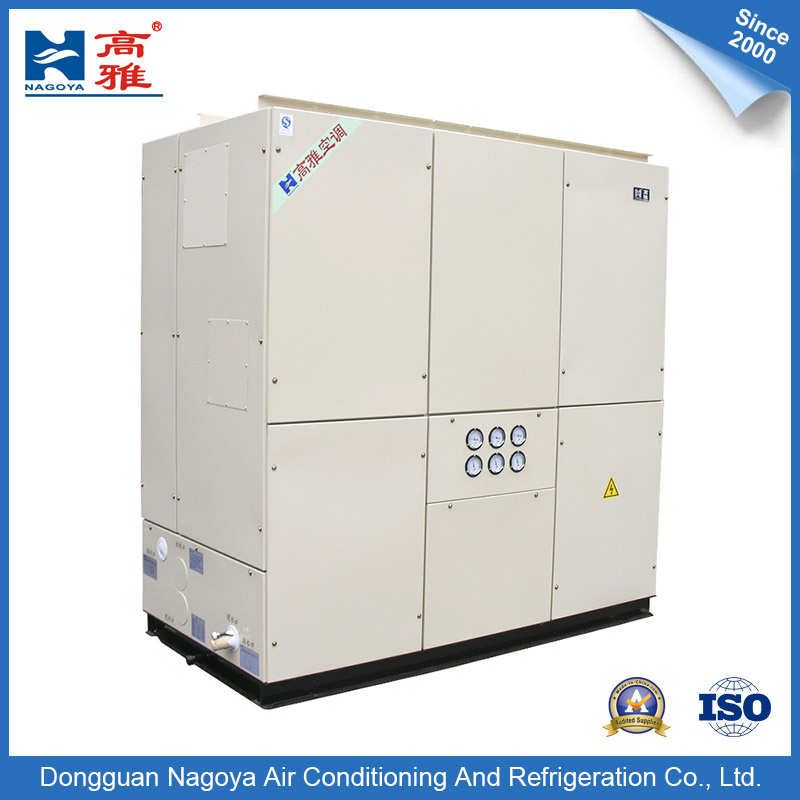

Nagoya 25HP HS71 Water Cooled Constant Temperature And Humidity Central Air Conditioner With Heat Recovery For Machinery Industry
FAQ
What is your product range?
Main products: water chiller, central air conditioner and related refrigeration equipment.
Are you manufacturer?
Yes, we have own factory with 30 years experience of air conditioner and refrigeration equipment.
How can we pay for?
1. 30% advanced payment, 70% balance payment before shipment normally, and it is negotiable.
2. We accept T/T, Western Union, L/C, and PayPal etc.
3. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
How many days will the products are finished?
1. 10-15 days for small quantity making (like 1-3sets).
2. 20-30 days about the mass products production time, it is up to the quantity.
What are the methods of shipping and price term?
1. We quote FOB Shenzhen normally after clients' enquiry.
2. And we quote CFR and CIF term once got client's details.
3. As it is big volume and heavy items, exporting shipment is by Sea normally.
What competitive advantages do you have?
1. Competitive price
2. Good after-sale service
3. Fast delivery time
4. High quality control
5. Material is made of 100% recycle material
6. Customized technical request, size, design and packing is welcomed
7. Provide one-step service from design, produce to quality control, sale and shipping
what can we benefit from you?
1. We provide OEM and ODM service
2. 100% high quality for every customer
3. Good after-sale service for customer
4. Wholesale price for regular customer
what do you have to ensure that what you said is right?
1. Full set of equipment ensure each process of product be finished. Such as punching machine, bending machine, machining machine and welding machine. And also coating, assembling, testing and packing.
2. First class of salesman to service for every client's demands.
3. Excellent R&D team waiting for clients, if you provide information and request.
4. Highly efficient management systems and quality assurance departments.
What information should i let you know once i want to make an inquiry?
1. The items name such as water chiller, air conditioner etc.
2. What's the use for? Like: for cool down air or machines?
3. Where the equipment should be used? Like: Country and city, factory or others?
4. What about the temperature and humidity request?
5. How many square meter of the space?
6. How many sets you need?
7. What's your seaport or items destination?
| Water Cooled Constant Temperature And Humidity Air Conditioner (Heat Recovery) |
| model | H15 | H30 | H45 | H62 | H71 | H93 | H107 | H142 |
| perfomance | HS15 | HS30 | HS45 | HS62 | HS71 | HS93 | HS107 | HS142 |
| unit specification | cooling capacity | kW | 15.0 | 30.0 | 45.0 | 61.9 | 71.2 | 92.9 | 106.8 | 142.4 |
| electric heating capacity | kW | 8 | 12 | 18 | 24 | 30 | 36 | 54 | 72 |
| humidifying capacity | kg/h | 8 | 8 | 15 | 15 | 23 | 23 | 32 | 32 |
| rating flow | CMH | 2800 | 5600 | 8600 | 11700 | 14000 | 17000 | 23000 | 28000 |
| external static pressure | Pa | 50 | 150 | 200 | 250 | 300 | 350 | 400 | 400 |
| power supply | 3PH 380V 50Hz |
| maximum operating power | kW | 13.6 | 23.9 | 35.7 | 46.5 | 56.1 | 70.8 | 94.6 | 127.2 |
| maximum running current | A | 26.4 | 47.8 | 71.1 | 83.0 | 97.8 | 125.9 | 163.2 | 219.7 |
| noise | dB (A) | ≤60 | ≤62 | ≤65 | ≤68 | ≤70 | ≤70 | ≤75 | ≤76 |
| temperature and humidify range | 18-28ºC±1ºC,50-70%±10% |
| compressor | type | full closed scroll |
| quanlity | 1 | 2 | 3 | 2 | 2 | 3 | 3 | 4 |
| operating power | kW | 3.5 | 6.9 | 10.4 | 13.0 | 14.7 | 19.5 | 22.1 | 29.4 |
| evaporater | high efficient copper pipe alumininum fin expansion |
| condenser | type | shell and tube type |
| cooled water flow | CMH | 3.2 | 6.3 | 9.5 | 12.9 | 14.8 | 19.3 | 22.2 | 31.1 |
| dia. Of pipe | in | 1-1/4 | 1-1/2 | 2 | 2 | 2-1/2 | 2-1/2 | 3 | 3 |
| throttling gear | external balanced thermal expansion valve |
| refrigerant | R22/R407C |
| centrifugal fan | type | direct connection type | belt driven centrifugal |
| operating power | kW | 0.4 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| air filter | nylon nets |
| electrode humidifier | humidifying power | kW | 6.1 | 6.1 | 11.4 | 11.4 | 17.5 | 17.5 | 24.3 | 24.3 |
| dia. Of inlet pipe | in | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| dia. Of condensed draining pipe | in | 1 | 1 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 | 1-1/4 |
| dia. Of draining pipe | in | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| protection device | high & low pressure protection, overload current protection, phase reversion & lack protection, overheat protection, water flow protection, electric heat temp. too high protection, overload humidified current protection, external interlock protection, fusible plug, oil heater, fuse etc. |
| dimension | width | mm | 800 | 1200 | 1700 | 1800 | 2150 | 2150 | 2150 | 2560 |
| depth | mm | 550 | 700 | 750 | 750 | 1150 | 1150 | 1250 | 1300 |
| height | mm | 1770 | 1730 | 1830 | 1830 | 1810 | 1810 | 1930 | 1990 |
| net weight (about) | kg | 300 | 410 | 650 | 690 | 900 | 940 | 1150 | 1500 |
| Note: 1. The cooling capacity is measured in:air inlet temperature: 23ºC/17ºC, cooled water inlet and outlet temperature: 30ºC/35ºC. |
| 2. Cooled water inlet temperature: 21-34ºC. |
| 3. The perfomance of using the new environmental protection refrigerant R407C unit and using ordinary refrigerant R22 unit is similar. |
| 4. When the environment humidify is 45-65%, using heat recovery unit save more energy than using the conventional models. |
