| Prod Model: |
HLLW~10SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
8.9kw-138.8kw |
| Condenser: |
Shell and Tube Type |
| Power Supply: |
3pH-380V-50Hz |
| Chilled Water Range: |
5~20deg |
| Cooling Water Range: |
20~40deg |
| Compressor: |
Scroll Type |
| Usage: |
for Refrigerate~@~for Air Conditioner~@~for Manufa |
| Cooling Method: |
Indirect Cooling |
| Certification: |
CE |
Product Description

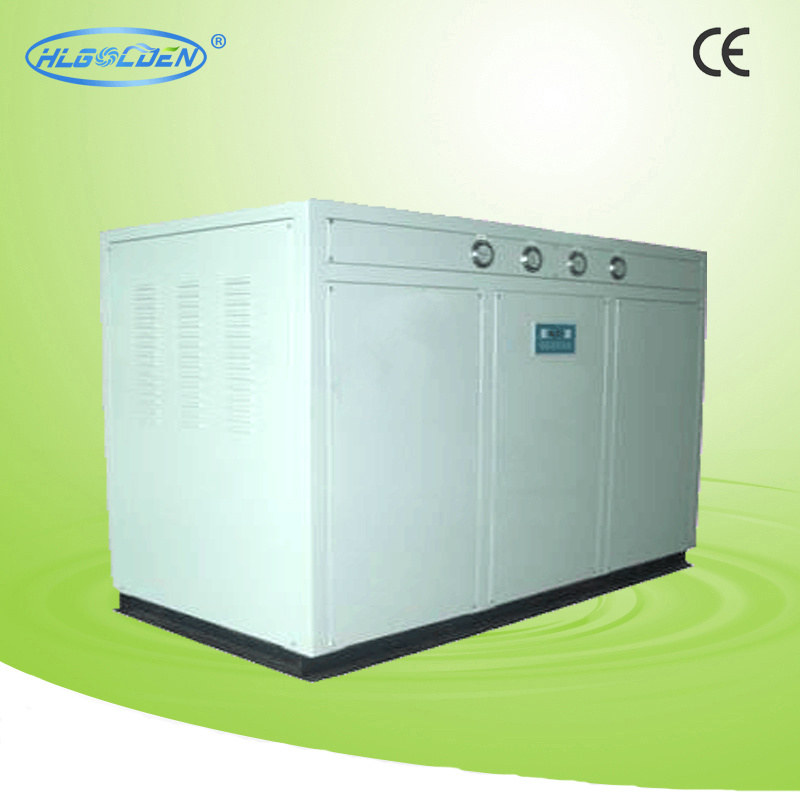

Water cooled chiller
Cooling capacity: 8.9KW to 138.8 KW
Applications:
Central air conditioner unit, Electroplating, plastic products, hardware, chemical industry, electronics, food preservation, Laser carving, vacuum coating, ultrasonic cleaning etc industries.
Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its
Unique advantage against erosion and filth in electroplating, PCB, oxidization, chemical
Industry, etc weak acid and alkaline conditions.
Spare parts introduction:
Packaged -type chiller including water pump and water tank. Client can choose with or without water pump and water tank.
Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressor
Water cooled type: Condenser and evaporator use Shell-and-tube.
Air cooled type: Shell-and-tube condenser, finned type evaporator
Safety production Device:
Besides the features of tank water-cooled machine set, air blast cooling chiller does not need extra cooling water tower and is easy to install and operate so that it is suitable for small production equipments.
Phase reversion protection, Phase lack protection, overload current protection, discharge air temp. Protection, low &high pressure protection.
Function:
Refrigerant: R22/R407c/R134, client can choose the refrigerant/gas.
Cooling only unit/cooling-heating unit,
1. Adopt the advanced scroll compressor, resistance low temp and high efficiency
2. Electrical configuration adopt high quality product of the world to ensure that the unit stable quality and reliable operation.
3. Equipped with high-performance low temp freezing pump and stainless steel water tank
4. Adopt the glycol antifreeze as the cooling agent, freezing water temp can be controlled at -25 degrees Celsius.
5. Customer may request calcium chloride as an antifreeze.
|
Model HLLW ~ |
03SP |
05SP |
08SP |
10SP |
12.5SP |
15SP |
20DP |
25DP |
30DP |
40TP |
45TP |
Rated Cooling Capacity |
× 1000 Kcal/h |
7.7 |
12.4 |
19.1 |
25.6 |
29.8 |
37.5 |
51.2 |
59.5 |
75.0 |
89.3 |
112.5 |
|
KW |
8.9 |
14.4 |
22.2 |
29.8 |
34.6 |
43.6 |
59.6 |
69.2 |
87.2 |
103.8 |
130.8 |
|
Input Power (KW) |
2.0 |
3.3 |
4.9 |
6.3 |
7.2 |
9.6 |
12.6 |
14.4 |
19.2 |
21.6 |
28.8 |
|
× Comp. Input Power× Qty. (KW) |
2.0× 1 |
3.3× 1 |
4.9× 1 |
6.3× 1 |
7.2× 1 |
9.6× 1 |
6.3× 2 |
7.2× 2 |
9.6× 2 |
7.2× 3 |
9.6× 3 |
|
Comp. Current (A) |
3.9 |
6.9 |
10.6 |
14.0 |
15.1 |
20.0 |
28 |
30.2 |
40.0 |
45.3 |
60.0 |
|
Refrigerant |
R407C |
|
Power Supply |
3φ -380V-50HZ |
|
Safety Protection |
, , , , , ,
Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
|
Number of Refrigeration Circuit |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
|
Capacity Control (%) |
0, 100 |
|
|
|
|
|
0, 50, 100 |
|
|
0, 33, 66, 100 |
|
|
Condenser |
Shell and Tube Type |
|
Water Side Max Pressure (MPa) |
1 |
|
Dia. of Pipe to Condenser (inch) |
1" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
|
Cooling Water Flow (L/m) |
31 |
51 |
78 |
103 |
120 |
152 |
207 |
240 |
305 |
359 |
457 |
|
Condenser Water Pressure drop (kPa) |
21 |
22 |
23 |
29 |
31 |
41 |
56 |
56 |
58 |
55 |
56 |
|
Evaporator |
Shell and Tube Type |
|
Water Side Max Pressure (MPa) |
1 |
|
Dia. of Pipe to Evaporator (inch) |
1-1/2" |
1-1/2" |
1-1/2" |
1-1/2" |
2" |
2" |
2" |
2" |
2-1/2" |
2-1/2" |
2-1/2" |
|
Chilled Water Flow (L/m) |
26 |
41 |
64 |
85 |
99 |
125 |
171 |
198 |
250 |
298 |
375 |
|
Evaporator Water Pressure drop (kPa) |
13 |
14 |
17 |
23 |
28 |
30 |
28 |
28 |
32 |
32 |
31 |
|
Running Noise dB(A) |
54 |
56 |
66 |
72 |
72 |
75 |
75 |
75 |
75 |
75 |
75 |
|
Total weight (Kg) |
180 |
240 |
350 |
360 |
400 |
490 |
590 |
640 |
810 |
980 |
1160 |
|
Dimension L× W× H (mm) |
1100× 600× 1300 |
1300× 650× 1300 |
1650× 650× 1400 |
1900× 650× 1400 |
2000× 750× 1450 |
2300× 750× 1450 |
