| Prod Model: |
M6520 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Attendance Machine |
| Type: |
Card |
Product Description

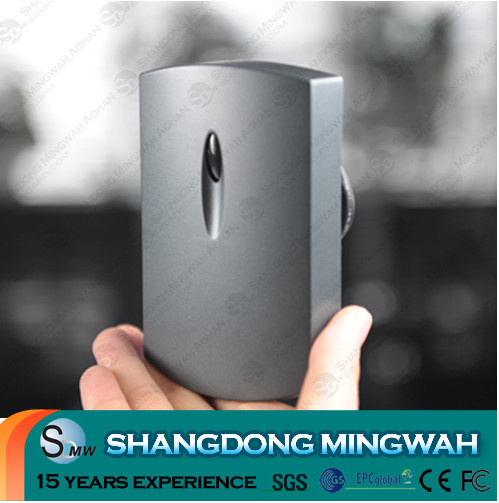

M6520 is a standard wall-mounted card reader with which users are free to set output format and output data. It can be applied to a variety of RFID systems via features such as easy installation, stable performance, attractiveness and practicality. It is your ideal choice in access control system and related control system.
Product Features
*Length of data output can be defined. Card serial no. And card data both are available
*Power supply: DC 8~28V. The reader can be used in conjunction with almost all controllers available in the market.
*Small-size enables flexible installation methods: Mounted on wall, door, and door frame, single/double combined box, etc.
*Multi-interface options: RS232/RS485/Wiegand
Product Parameter
*Dimensions 80mm*43 mm*13mm
*Interface RS232/RS485/Wiegand 26/Wiegand 34
*Power supply DC: HF 8~28V; LF 9~12V
LF
*FrequencyRange 125kHz
*Protocols ISO11784/11785
*Cards Supported EM card, animal tag etc.
*ReadRange < 5cm (depend on the card)
HF
*FrequencyRange 13.56MHz
*Protocols ISO 14443 A& B
*Cards Supported Mifare card
*ReadRange < 5cm (depend on the card)
|
Basic Parameters |
|
Model |
M6520-x/M6520-MW |
|
Dimensions |
80mm× 43 mm× 13mm |
|
Operating Temp |
-10to +60 |
|
Interface |
RS232/RS485/Wiegand 26/Wiegand 34 |
|
Power supply |
DC: HF 8~28V; LF 9~12V |
|
RFID Parameters |
|
LF |
|
FrequencyRange |
125KHz |
|
Protocols |
ISO11784/11785 |
|
Cards Supported |
EM card, animal tag etc. |
|
ReadRange |
< 5cm (depend on the card) |
|
HF |
|
FrequencyRange |
13.56MHz |
|
Protocols |
ISO 14443 A& B |
|
Cards Supported |
Mifare card |
|
ReadRange |
< 5cm (depend on the card) |
