| Prod Model: |
GQO-V16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Eastern Asia,Western Europe |
| Size: |
355x152x432mm |
| Color: |
Gray |
| Material: |
Stainless Steel |
| Certification: |
CE |
| Usage: |
Home |
| Purifying Technology: |
Ozone |
| Type: |
HEPA Filter |
| Structure: |
Wall Mounted |
Product Description

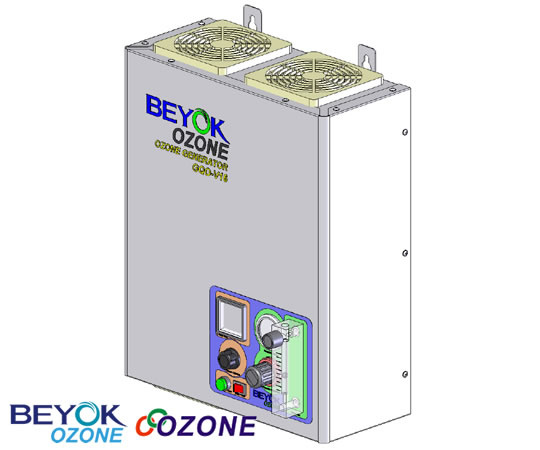

Item: Wall-mounted Ozone Generator
Model: GQO-V16
BEYOKozone family of corona discharge wall-mounted, ozone systems are sized to meet any water & air treatment demand. These units set the standard for the optimal ozone output in an air-cooled unit. The air-cooled corona discharge systems are as sophisticated and reliable as these products in this category in the world.
Specifications:
Ozone Output (± 10%): 16 g/hr with oxygen supply
Ozone Generating Method: Corona Discharge
Power Requirement: 220V/50Hz-120V/60Hz available
Power Consumption: 240W
Control: 1~100% variable ozone output
Feed Gas: Dry air or oxygen supply
Operating Pressure: Up to 25 PSI, best ozone production is at 6-10 PSI
Ambient Temperature: 40-de F~ 100-de F( 5º C- 40º C)
Cooling Method: Ambient air cooled
Ventilation: 80 CFM cooling fan
Inlet & Outlet Connection: 3/8-inch Stainless Steel Compression
Chassis: Stainless Steel Chassis
Dimension (LxWxH): 14-in x 6-in x 17-in (355x152x432mm)
Net Weight: -lb (kg)
Features:
Manual 1-100% ozone output control
Low power consumption with high ozone output
Very Simple operation
Compact, wall-mounted
Economical, and low running costs
Oxygen or dry air feed
One year warranty
Benefits:
Better sanitation-complete disinfection on contact
Eliminates odors-powerful, but safe.
Saves money-reduces or eliminates chemical use
Saves time-disinfectant produced on-site(no storage, mixing or handling of chemicals)
Protects the environment
Application:
Waste water
Food safety applications
Winery applications
Commercial spas
Residential swimming pools
Residential problem water
Bottled water fill lines
Aquariums
Water features
Larger volume water stores
