| Prod Model: |
iGrid |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
5000 Nits/3500nits/1500 Nits |
| Viewing Distance: |
More Than 15m, 19m, 25m, 38m |
| Refresh Rate: |
1800Hz/2400Hz/3600Hz/4800Hz |
| Cabinet Size: |
600 X 600 X 85mm or 900 X 60 X 85mm |
| Viewing Angle: |
140/140 |
| Gray Scale: |
>16bit |
| Input Voltage: |
AC 220V±10% 50/60Hz |
| Working Environment: |
Temperature-20~+50degree, Humidity10~95% Rh |
| Life Time: |
> 50, 000 Hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Display Function: |
Video Display |
| Pixel Configuration: |
RGB 3in1 SMD3535 |
| Pixel Pitch: |
15mm/18.75mm/25mm/37.5mm |
| Pixel Density: |
4444sqm/2844sqm/1600sqm/711sqm |
| Average Power Consumption: |
900W/Sqm, 700W/Sqm, 400W/Sqm, 200W/Sqm |
Product Description

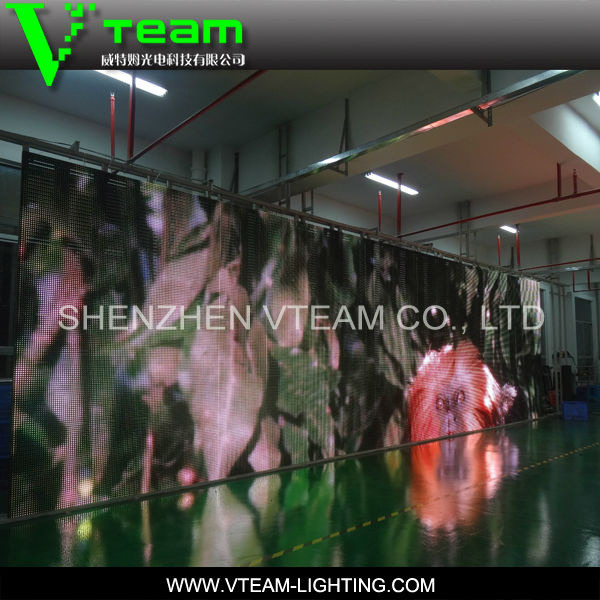

IGird is a LED strip curtain display with light and thin body. Transparent design, the easy, firm and correct installation can be done with one people operation. The special design of electronic elements inside makes iGrid more waterproof and shockproof. SMD 3in1 LEDs and static constant drive, high brightness, high refresh rate, high gray scale all make iGrid LED curtain a number one choice for indoor and outdoor large-scale stage design.
Main Advantages:
1. Light, suitable for touring shows, convenient in transporting and jointing.
2. Strong and nice-looking structure.
3. Two size with 900X600X85mm and 600X600X85mm for different demands.
4. IP 65 for temporary outdoor use, makes it possible to work no matter in rainy days.
5. Can achieve any arc-shaped with ± 10° .
6. Easy and correct installation can be done with one person tool free operation.
7. High transparency for light, smoke and sound on stage going through.
8. Personalized operation interface, power and signal lights for debugging.
|
Item |
iGrid 15 |
iGrid 18.75 |
iGrid 25 |
iGrid 37.5 |
|
Pixel Pitch |
15mm |
18.75mm |
25mm |
37.5mm |
|
Pixel Density/sqm |
4444 |
2844 |
1600 |
711 |
Pixel Matrix
(600X600mm) |
40(H)×40(V) |
32(H)×32(V) |
24(H)×24(V) |
16(H)×16(V) |
Pixel Matrix
(600X900mm) |
40(H)×60(V) |
32(H)×48(V) |
24(H)×36(V) |
16(H)×24(V) |
|
Weight(600X600mm) |
8KG |
7.5KG |
7KG |
6.5KG |
|
Weight(600X900mm) |
13KG |
12KG |
11KG |
10KG |
|
Brightness |
5000 Nit |
≥5000 Nit |
≥3500 Nit |
≥1500 Nit |
|
Viewing Distance |
≥15m |
≥19m |
≥25m |
≥38m |
|
Max. Power consumption |
900 W/sqm |
700 W/sqm |
400 W/sqm |
200 W/sqm |
|
Ave. Power consumption |
480 W/sqm |
400 W/sqm |
220 W/sqm |
110 W/sqm |
|
Refresh Rate |
1800HZ |
2400HZ |
3600HZ |
4800HZ |
|
Panel Size |
600×600×85mm or 900×600×85mm |
|
Led Type |
RGB 3in1 SMD3535 |
|
Gray Scale |
16bit |
|
Protection Level |
In Front IP65, At Back IP65 |
|
Viewing Angle |
140°/140° |
|
Input voltage |
AC 220V±10% 50/60HZ |
|
Working Environment |
Temperature-20~+50degree,Humidity10~95% RH |
|
Lifetime |
> 50,000hours |
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
VTEAM Mission: To create value and profit for customers!
VTEAM Vision: Being creative concept pioneer!
