| Prod Model: |
VRX932LAP/VRX918SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Active Line Array |
| Size: |
12'' Top and 18'' Bass |
| Hf: |
2408h |
| Lf: |
2262HPL/2268HPL |
| Magnet: |
Neodymium |
| Hf/Lf Frame: |
Aluminum |
| Voice Coil: |
Dual Voice Coil |
| Technology: |
Differential Drive |
| Horn: |
ABS Plastic |
| Cabinet: |
Birch Plywood |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.005% |
| Operation Mode: |
Cable Connection |
| Speaker System: |
Active Line Array |
| Monitor: |
No LED |
Product Description
Product Description

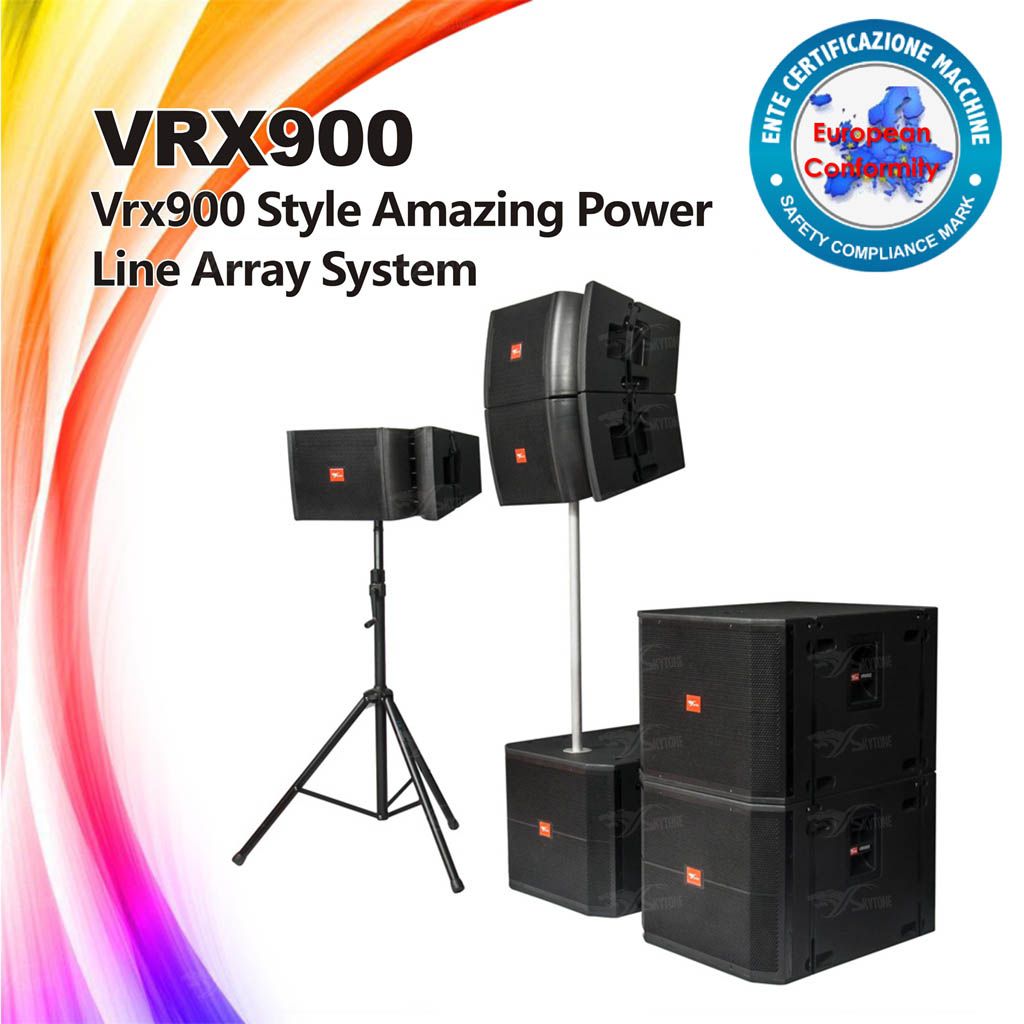

VRX932LAP/VRX918SP active outdoor professional audio,line array system
12 in. Two-Way Line Array Loudspeaker System
2 Way, 12 Inch Differential Drive Woofer
Black line array
Passive line arrayVRX932la Line array/ pro audio/loudspeaker
12 in. Two-Way Line Array Loudspeaker
Full frequency line array speakers
High power line array system
Line array
Light weight line array
Neodymium speaker line array
Passive pa speakersThe VRX932LA is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.This model pro audio is one of best seller speakers of us, it's beautiful appearance and pleasant voice, combined the suspension kit, can be made the sound play the perfect effect. It's the pro loudspeakers which popular to 99%costomers. Are you waiting for what? Don't hesitate to try the sound, welcome to our company to feel the real sound. It's the best choice of line array system.Features:1. JBLstyle exclusive neodymium magnet Differential Drive? Woofer for high-power capacity and light-weight.
2. VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in 3. JBL Professional compression driver design.
4. Constant Curvature waveguide for unprecedented array coherence.
5. Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
6. Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
7. Array Configuration Selector permits "array shading" in passive mode.
Suitable for:
VRX932 line array speaker especially used for following place:
1. Smaller venues
2. Small to medium sound reinforcement projects.
If there is any question about VRX932LA line array, welcome for details!
Skytone audio will stick by you and won't you down.Professional speaker gives you the best sound.
Professional manufacturer gives you the most favourable price. | Vrx932la Line Array Speaker |
| Specifications : |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 57 Hz - 20 kHz |
| | (-10 dB) |
| Dimensions | 343 mm x 597 mm x 376 mm |
| (H x W x D) | (13.5 in x 23.5 in x 14.8 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL |
| Bi-amp LF: 95 dB SPL |
| Bi-amp HF: 114 dB SPL |
| LF Driver | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with |
| neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| Nominal Impedance | Passive: 8 ohm |
| Bi-amp LF: 8 ohm |
| Bi-amp HF: 8 ohm |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black DuraFlex™ finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Input Connectors | Speakon® NL-4 (x2) |
| Net Weight | 21 kg (46 lb) |
