| Prod Model: |
Vrx 932 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Vrx932lap |
| Hf: |
Neodymium Tweeter |
| Lf: |
2262HPL/2268HPL Neodymium Woofer |
| Bi-AMP: |
Bi-AMP Type |
| Amplifier: |
with Inside Amplifier |
| Finish: |
Polyurea Paint |
| Cabinet: |
18mm Birch Plywood |
| Grille: |
Punched |
| Products Packing: |
Packaged in Carton Case or Flight Case |
| Warranty: |
1 Year |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Mobile Phone |
| Adjusting Method: |
Keystoke |
| Sound Channel: |
5.1 |
| Structure: |
Bass Reflex Enclosure |
| SNR: |
81-90dB |
| Function: |
HiFi |
Product Description

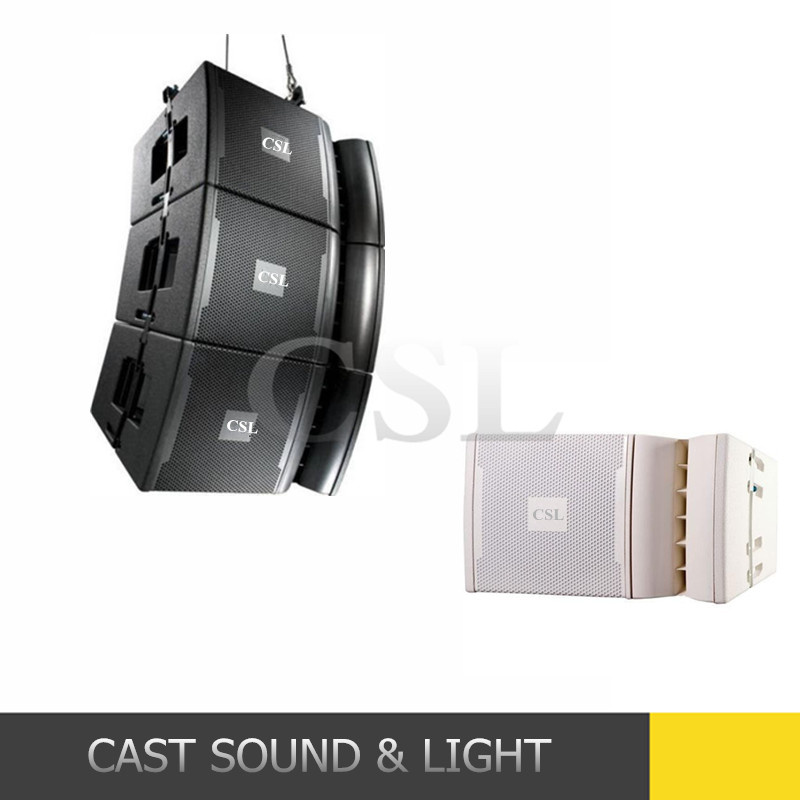

Pro Audio Vrx932lap Active Line Array System SpeakerThe VRX932LAP is a powered, light weight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.
Active line array system Features:1. CSL style exclusive neodymium magnet Differential Drive? Woofer for high-power capacity and light-weight.
2. VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in 3. CSL Professional compression driver design.
4. Constant Curvature waveguide for unprecedented array coherence.
5. Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
6. Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
7. Array Configuration Selector permits "array shading" in passive mode.ApplicationA. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
Revelant Collocation:1.VRX918SP active subwoofer
2.VRX-AF suspension kit---Used for hanging line array system
3. VRX915M ----15" Stage Monitor
VRX932LAP Active line array system |
| Model | VRX932LAP | VRX918SP |
| System type: | 12 inch, powered two way,
line-array speaker | 18 inch, powered bass
-reflex subwoofer |
| Frequency Range (-10 dB): | 57 Hz - 20 kHz | 31 Hz - 220 Hz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz | 34 Hz - 220 Hz |
| Coverage pattern: | 100° x 15° nominal
(horizontal x vertical) | / |
| Maximum System SPL1: | 136 dB | 126 dB |
| Components: | LF: 2262HPL;
HF: 3x 2408H (1.5 in voice coil) | LF: 1x 2268HPL |
| Amplifier: | 1750W Peak, 875W Continuous | 1500W Peak, 800W Continuous |
| Dimensions (H x W x D): | 349 mm x 597 mm x 444 mm
13.75 in x 23.5 in x 17.5 in | 508 mm x 597 mm x 749 mm
20.0 in x 23.5 in x 29.5 in |
| Weight: | 24 kg (52 lb) |
40 kg (89 lb
|
